1
Engine displacement
1000
2
Year
2016
3
Trim
RZR XP 1000 EU / MD
4
Parts Catalog

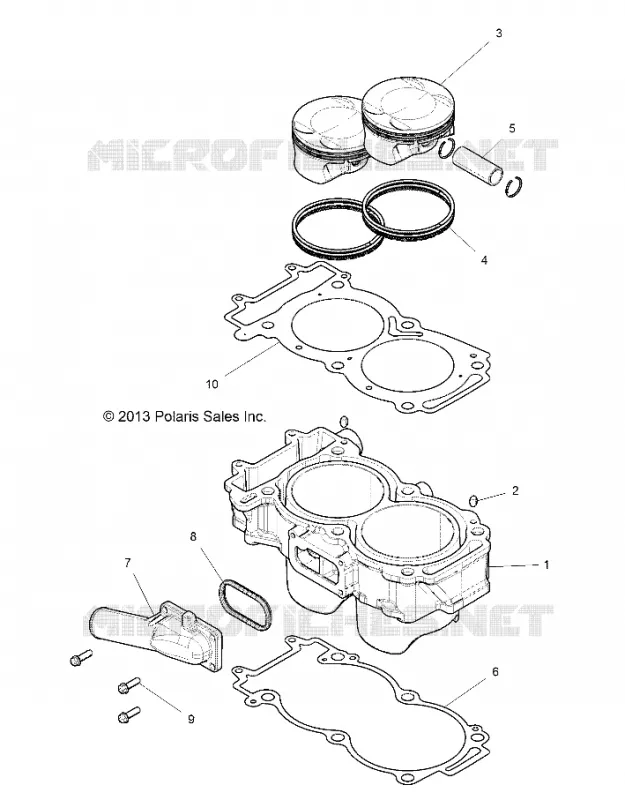

CYLINDER AND PISTON
5
Parts Diagram
Parts Catalog
ENGINE, CRANKCASE AND CRANKSHAFT
by
ENGINE, CYLINDER HEAD AND VALVES
CYLINDER AND PISTON
1
ASM. CYLINDER [INCL. 2]
3022594
$842,09 Unit Price incl. VAT
2
PIN DOWEL M6x10
5132835
$4,19 Unit Price incl. VAT
3
KIT-PISTON 3022567
2205244
$256,19 Unit Price incl. VAT
4
KIT RINGS PISTON (STANDARD)
2204949
$157,49 Unit Price incl. VAT
5
PIN PISTON
3022358
$40,94 Unit Price incl. VAT
6
GASKET BASE 2 CYL
5253037
$57,74 Unit Price incl. VAT
7
COVER WATER INLET CAST
5632557
$29,39 Unit Price incl. VAT
8
GASKET WATER INLET
5813736
$41,99 Unit Price incl. VAT
9
SCREW-HXFL-M6X1.0X20 8.8 ZY3
7518576
$6,29 Unit Price incl. VAT
10
GASKET CYLINDER HEAD [TO 5/2/2022]
5813737
5814793
$110,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
