1
Engine displacement
800
2
Year
2018
3
Trim
800 AXYS SKS 155
4
Parts Catalog
LOWER STEERING
5
Parts Diagram
Parts Catalog
STEERING, HANDLEBAR MOUNTING
by
ENGINE, EXHAUST VALVE ASM.

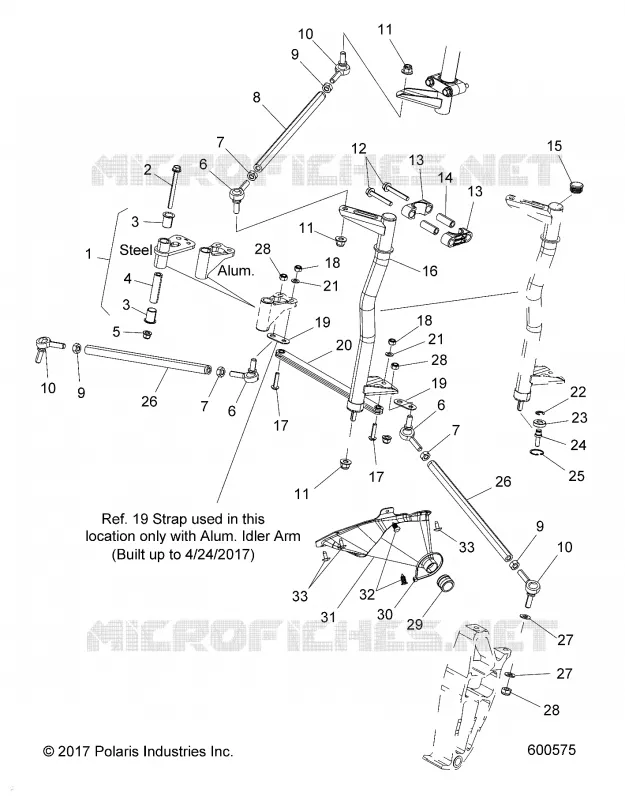

LOWER STEERING
1
2
3
3
4
5
6
6
6
7
7
7
8
9
9
9
10
10
10
11
11
11
12
13
13
14
15
16
17
17
18
18
19
19
20
21
21
22
23
24
25
26
26
27
27
28
28
28
29
30
31
31
32
33
33
1
ASM. IDLER ARM
1824547
$220,49 Unit Price incl. VAT
2
SCR-HXFL-M8X1.25X85 10.9 ZOD
7519972
$17,84 Unit Price incl. VAT
3
BUSHING SKI PIVOT
5438460
$27,29 Unit Price incl. VAT
4
SHAFT PIVOT IDLER
5138365
$47,24 Unit Price incl. VAT
5
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
6
ROD END LH
7061165
$104,99 Unit Price incl. VAT
7
NUT-M10X1.5 LH ZOD
7547431
$6,29 Unit Price incl. VAT
8
TIE ROD
5338122
$47,24 Unit Price incl. VAT
9
NUT-M10X1.5 ZOD
7547430
$6,29 Unit Price incl. VAT
10
ROD END RH
7061166
$104,99 Unit Price incl. VAT
11
NUT-M10X1.5 HFN NYLOC ZOD
7547423
$7,34 Unit Price incl. VAT
12
SCR-HXFL-M8X1.25X55 8.8 ZODP30
7519242
$9,44 Unit Price incl. VAT
13
BUSHING
5451227
$7,34 Unit Price incl. VAT
14
SPACER BUSHING
5137796
$7,34 Unit Price incl. VAT
15
PLUG TUBE
7081210
$7,34 Unit Price incl. VAT
16
ASM. PITMAN ARM
1824727
$173,24 Unit Price incl. VAT
17
SCR-TXTH-M8X1.25X35 8.8 ZOD
7519238
$11,54 Unit Price incl. VAT
18
NUT-M8X1.25C10 HX NYL DIN982 Z
7547405
$2,09 Unit Price incl. VAT
19
STRAP PITMAN/IDLER
5261249
$18,89 Unit Price incl. VAT
20
ASM. RACK LINK
7061190
$121,79 Unit Price incl. VAT
21
SCREW M8x30 TR/TX
7518953
$3,14 Unit Price incl. VAT
22
RING-RETAINING #E# EXT. .500
7710901
$15,74 Unit Price incl. VAT
23
BEARING
3514320
$27,29 Unit Price incl. VAT
24
STUD SPACER
7519163
$58,58 Unit Price incl. VAT
25
RING RETAINING
7710642
$4,19 Unit Price incl. VAT
26
TIE ROD
5335899
$68,24 Unit Price incl. VAT
27
WASHER
7555806
$1,56 Unit Price incl. VAT
28
NUT-HEX M10X1.5 8 ZOD NYL
7547442
$7,34 Unit Price incl. VAT
29
BUSHING TIE ROD BOOT
5439309
$20,99 Unit Price incl. VAT
30
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
31
ASM. TIE ROD BOOT RH [INCL. 24-25]
2635203
$73,49 Unit Price incl. VAT
31
ASM. TIE ROD BOOT LH [INCL. 24-25]
2635202
$73,49 Unit Price incl. VAT
32
CLIP X MAS TREE
7661953
$2,09 Unit Price incl. VAT
33
SCR-TXTH-M6X1.0X15 ZPB TAP
7519092
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
