FUEL TANK for POLARIS SPORTSMAN 700 - A05MH68AK/AN/AD from 2005

FUEL TANK

1

SCR-1/4-20X1 HX/WH/TAP/R GR5-Y

7515179

$4,19 Unit Price incl. VAT

2

WASHER [INTL]

7558301

$2,09 Unit Price incl. VAT

3

Bracket Mounting Rear RH

5247185

$73,49 Unit Price incl. VAT

3

Bracket Mounting Rear LH

5247184

Not Available

4

Foil

5812005

Not Available

5

Asm. Fuel Tank w/Sender [Incl. 9 23 24 25 27]

2520403

Not Available

6

Foil

5812004

$36,74 Unit Price incl. VAT

7

Seal Foam

5812265

$52,49 Unit Price incl. VAT

8

Foam

5812776

Not Available

9

Vent Tank

5431053

$47,24 Unit Price incl. VAT

10

HOSE-POLY CLEAR 3/16 OD 1/8 ID

8360009600

$83,99 Unit Price incl. VAT

11

Cap Gas Tank

5433687

$36,74 Unit Price incl. VAT

12

Gasket

5812123

$10,49 Unit Price incl. VAT

13

VALVE ON/OFF

7052159

$89,24 Unit Price incl. VAT

14

KNOB FUEL VALVE (If built before 1/14/00)

5432559

$20,99 Unit Price incl. VAT

15

SCR-4MMX.7X10MM-PH/PN Y LOC

7517505

$3,14 Unit Price incl. VAT

16

NUT FUELVALVE ATV (If built before 1/14/00)

5432733

Not Available

17

HOSE CLAMP RED

7080003

$2,09 Unit Price incl. VAT

18

Line Fuel

8450103

$99,74 Unit Price incl. VAT

19

CABLE-TIE 25-76MM WEATH.-RES.

7080492

$5,24 Unit Price incl. VAT

20

Sheath Reflective Sleeve

845010529

$120,74 Unit Price incl. VAT

21

Screw

7518257

Not Available

22

Sender Fuel

2410554

Not Available

23

GASKET SENDING UNIT

5810858

$110,24 Unit Price incl. VAT

24

Fitting Fuel Single Outlet

7052363

Not Available

25

SCREW

7515136

$2,09 Unit Price incl. VAT

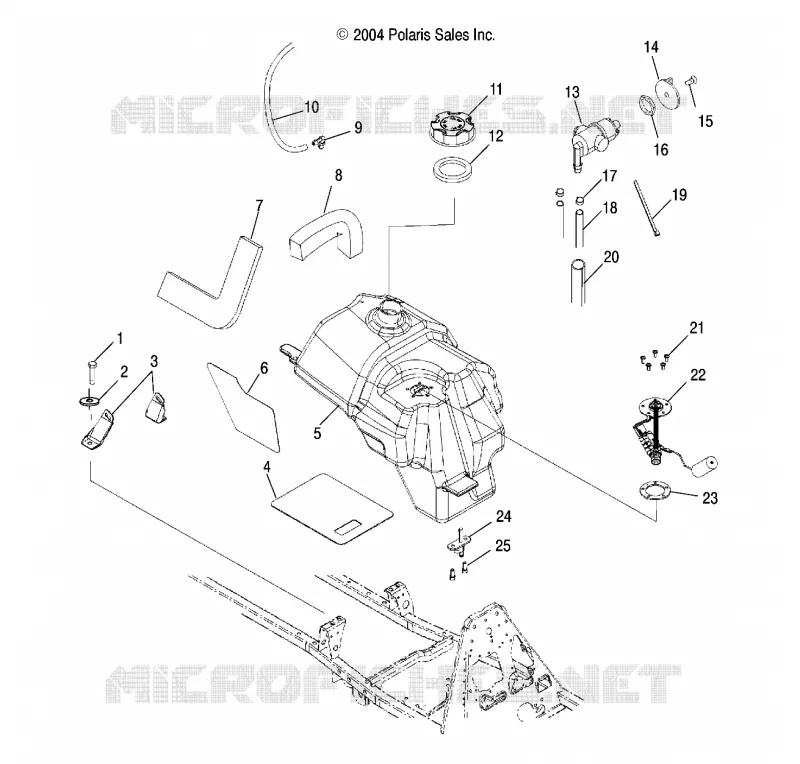

Find the detailed FUEL TANK POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
