1
Engine displacement
300
2
Year
1996
3
Trim
XPLORER 300 - W969130
4
Parts Catalog

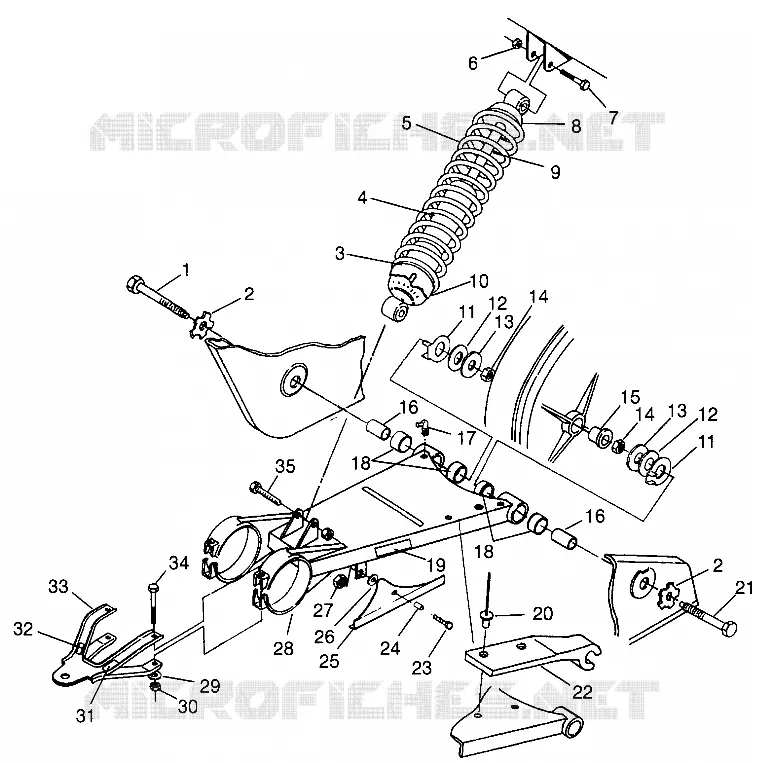

SWING ARM SHOCK XPLORER 300 W969130 (4935903590C001)
5
Parts Diagram
Parts Catalog
CENTER TIGHTENER XPLORER 300 W969130 (4935903590B014)
by
DRIVE CLUTCH XPLORER 300 W969130 (4935903590C002)
SWING ARM SHOCK XPLORER 300 W969130 (4935903590C001)
1
2
2
3
4
5
6
7
8
9
10
11
11
12
12
13
13
14
14
15
16
16
17
18
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
1
BOLT SHOULDER
7512701
$41,99 Unit Price incl. VAT
2
PLATE BOLT LOCK
5220958
$68,24 Unit Price incl. VAT
3
ADAPTER SPRING SEAT
5630351
Not Available
4
SLEEVE SPRING PROTECTOR
5431032
$68,24 Unit Price incl. VAT
5
SPRING COMP REAR
7041204067
$88,19 Unit Price incl. VAT
6
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
7
SCREW
7515415
$2,09 Unit Price incl. VAT
8
RETAINER SHOCK
5222118
5251753
$19,94 Unit Price incl. VAT
9
SHOCK REAR
7041448
$283,49 Unit Price incl. VAT
10
CAM ADJUSTING SPRING
5630334
$68,24 Unit Price incl. VAT
11
BUSHING
5240952
$52,49 Unit Price incl. VAT
12
BUSHING Substituted by 5433414
5431977
$36,74 Unit Price incl. VAT
13
WASHER(10)
7555911
$9,44 Unit Price incl. VAT
14
NUT LOCK(10)
7542602
Not Available
15
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
16
BUSHING SWING ARM
5020793
$16,79 Unit Price incl. VAT
17
Fitting Lubricating 45 Degree
7080438
$19,94 Unit Price incl. VAT
18
BUSHING SWING ARM Substituted by 5433417
5431972
5433417
$16,79 Unit Price incl. VAT
19
DECAL LUBRICATION
7074214
Not Available
20
RIVET
7621433
$2,09 Unit Price incl. VAT
21
BOLT SHOULDER
7512702
Not Available
22
GUIDE CHAIN
5431310
$62,99 Unit Price incl. VAT
23
Screw
7515304
$10,49 Unit Price incl. VAT
24
Bushing
5332828
$17,84 Unit Price incl. VAT
25
GUARD CHAIN
5430776
$68,24 Unit Price incl. VAT
26
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
27
NUT FLANGE
7542321
$2,09 Unit Price incl. VAT
28
ARM ASM SWING
1580090
Not Available
29
WASHER-.453X1.0X.078-Y
7555883
$7,34 Unit Price incl. VAT
30
NUT LOCK (10)
7542503
$18,89 Unit Price incl. VAT
31
DECAL CHAIN FREE PLAY
7074752
Not Available
32
DECAL HITCH Substituted by 7078261
7072533
Not Available
33
Kit Hitch [Incl. 12 13 14]
2200472
Not Available
34
Bolt
7512576
$14,69 Unit Price incl. VAT
35
BOLT
7515438
$9,44 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
