1
Engine displacement
570
2
Year
2023
3
Trim
SPORTSMAN 570 X2 EU / ZUG TRACTOR
4
Parts Catalog
BED BOX
5
Parts Diagram
Parts Catalog
BED BOX FRAME AND PIVOT
by
DECALSS, GENERAL

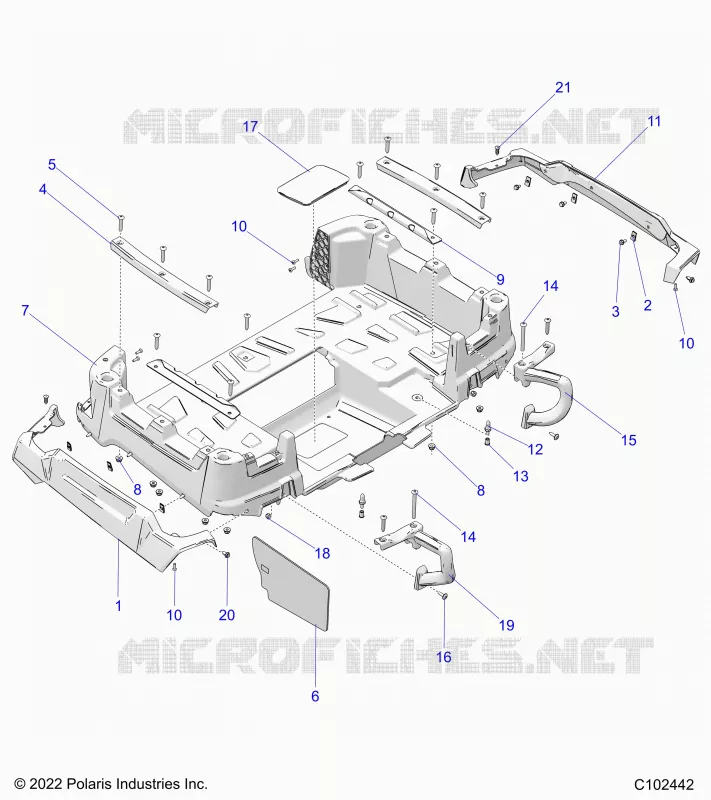

BED BOX
1
1
2
3
4
5
6
7
7
8
8
9
10
10
10
11
11
12
13
14
14
15
16
17
18
19
20
21
1
FENDER REAR BOX RH SAGE BRUSH GREEN [C1] [F1]
5450716498
$136,49 Unit Price incl. VAT
1
FENDER-REAR BOX RH WHT LTNG [C2]
5450716599
Not Available
2
NUT U-TYPE SPEED
7670057
$2,09 Unit Price incl. VAT
3
SCR-1/4-20X5/8 TAP/R-Y
7517386
$2,09 Unit Price incl. VAT
4
Tie Down Side Black
5434803070
$20,99 Unit Price incl. VAT
5
SCR-5/16-18X1.75 TX-M
7518235
$3,14 Unit Price incl. VAT
6
SHIELD-HEAT X2 BOX
5814820
$62,99 Unit Price incl. VAT
7
BOX REAR BASE BLACK [TO 12/4/2023]
5450946070
2212534
$519,74 Unit Price incl. VAT
7
BOX REAR BASE BLACK [FRM 12/4/2023]
5465904070
Not Available
8
NUT-5/16-18 HX FLG NL-Y [INTL]
7542343
$9,44 Unit Price incl. VAT
9
CHANNEL REAR RACK FRONT MATTE BLACK
5248471458
$68,24 Unit Price incl. VAT
10
SCREW-10X5/8-HI/LO PN-T25 TRX-M
7518238
$7,34 Unit Price incl. VAT
11
FENDER-REAR BOX LH WHT LTNG [C2]
5450715599
Not Available
11
FENDER REAR BOX LH SAGE BRUSH GREEN [C1] [F1]
5450715498
$136,49 Unit Price incl. VAT
12
Pin Seat Latch
5910284
$27,29 Unit Price incl. VAT
13
Insert-1/4-20
7542143
$10,49 Unit Price incl. VAT
14
SCR-5/16-18X3.25 TX-M
7518215
$9,44 Unit Price incl. VAT
15
Handle Passenger LH Black
5436491070
$83,99 Unit Price incl. VAT
16
SCR-1/4-20X1.00 TR/TX-M
7517685
$3,14 Unit Price incl. VAT
17
Plug Drain Box
5413002
$52,49 Unit Price incl. VAT
18
NUT NYLOK FLANGED 1/4 [INTL]
7542153
$3,14 Unit Price incl. VAT
19
Handle Passenger RH Black
5436492070
$83,99 Unit Price incl. VAT
20
RIVET-TUFLOK .315-.325X.787 ?
7661855
$2,09 Unit Price incl. VAT
21
CLIP-XMAS TREE .945 X .228
7670101
$4,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
