1
Engine displacement
900
2
Year
1996
3
Trim
INTL SL 900 - I964291
4
Parts Catalog

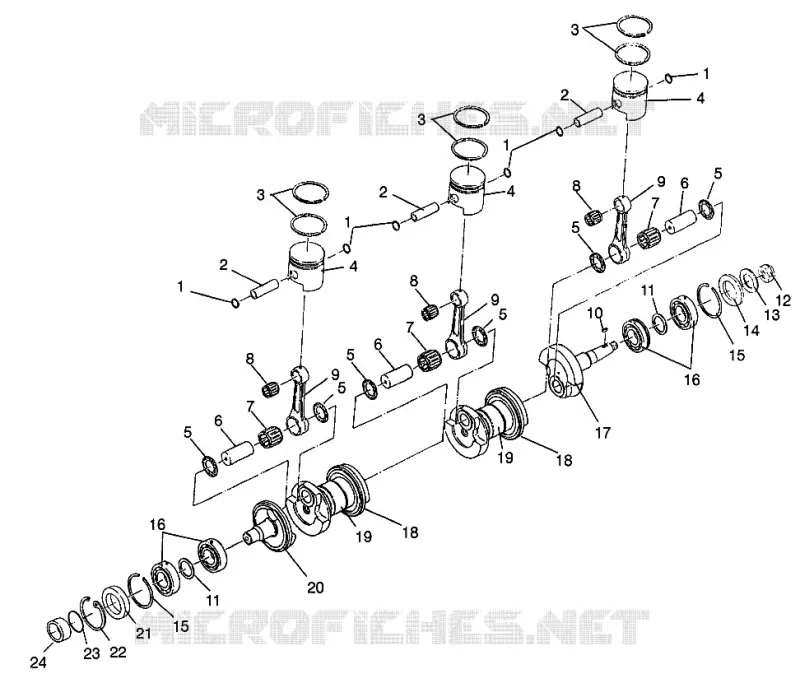

CRANKSHAFT PISTON SL 900 B964291 AND INTL. SL 900 I964291 (4935583558C003)
5
Parts Diagram
Parts Catalog
ENGINE FOGGING SYSTEM INTL. SL 900 I964291 (4935583558B012)
by
CARBURETOR SL 900 B964291 AND INTL. SL 900 I964291 (4935583558C004)
CRANKSHAFT PISTON SL 900 B964291 AND INTL. SL 900 I964291 (4935583558C003)
-
1
1
1
1
2
2
2
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
12
12
12
12
12
12
12
12
12
12
12
12
8
8
8
9
9
9
10
11
11
12
12
14
15
15
16
16
17
18
18
19
19
20
21
22
23
24
-
1
1
1
1
2
2
2
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
12
12
12
12
12
12
12
12
12
12
12
12
8
8
8
9
9
9
10
11
11
12
12
14
15
15
16
16
17
18
18
19
19
20
21
22
23
24
-
CRANKSHAFT 3 CYL Substituted by 2201238 (Incl. 5-7 9 17-20)
1201586
Not Available
1
CIRCLIP PISTON 20MM. (10)
3022950
Not Available
2
PIN PISTON
3022961
Not Available
3
KIT PISTONRINGS .25MM.O/S
2200817
Not Available
3
KIT PISTONRINGS STD. (2 Rings)
2200818
$85,88 Unit Price incl. VAT
3
KIT PISTONRINGS .50MM.O/S
2200816
$106,56 Unit Price incl. VAT
4
KIT PISTON ASM STD. (Incl. 1 2 3)
2200821
$251,46 Unit Price incl. VAT
4
KIT PISTON ASM .50MM.O/S (Incl. 1 2 3)
2200819
$225,74 Unit Price incl. VAT
4
KIT PISTON ASM .25MM.O/S (Incl. 1 2 3)
2200820
$238,34 Unit Price incl. VAT
5
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
6
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
7
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
8
BEARING CONNECT.ROD
3584001
Not Available
9
KIT CONN.ROD ASM.(PWC) Substituted by 2201022 (Incl. 5-7)
2200674
Not Available
10
KEY WOODRUFF
7721117
$47,24 Unit Price incl. VAT
11
BUSHING(10)
7555905
$6,29 Unit Price incl. VAT
12
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
13
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
14
SEAL (Magneto)
3610044
$41,99 Unit Price incl. VAT
15
RING RETAINING (10)
7710441
Not Available
16
BEARING DEEP GROOVE Substituted by 3585503
3585501
3585503
$54,59 Unit Price incl. VAT
17
CRANKWEB MAG.
5131085
Not Available
18
CRANKWEB CTR BIGBORE
5131084
$198,96 Unit Price incl. VAT
19
LABYRINTH
5131086
Not Available
20
CRANKWEB PTO BIGBORE
5131083
$198,96 Unit Price incl. VAT
21
SEAL Substituted by 5411524
5410913
Not Available
22
RING RETAINING(10)
7710435
Not Available
23
O-RING
5410613
$3,66 Unit Price incl. VAT
24
COLLAR CRANKSHAFT
5131195
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
