FRONT STORAGE COMPARTMENT SL 900 B964291 AND INTL. SL 900 I964291 (4935583558A008)
5
Parts Diagram
Parts Catalog
DECALS SL 900 B964291 AND INTL. SL 900 I964291 (4935583558A007)
by
FUEL TANK SL 900 B964291 AND INTL. SL 900 I964291 (4935583558A009)

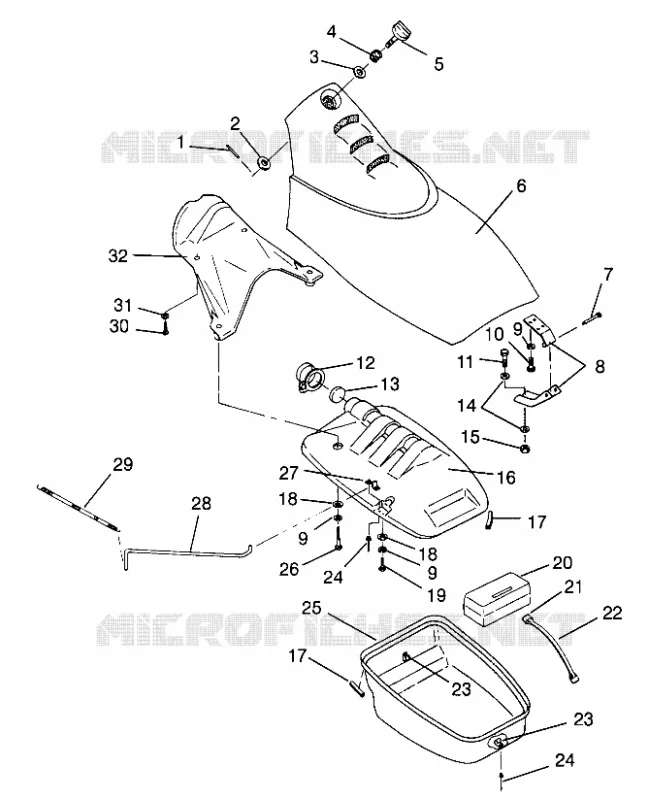

FRONT STORAGE COMPARTMENT SL 900 B964291 AND INTL. SL 900 I964291 (4935583558A008)
1
2
3
4
5
6
7
8
9
9
9
10
11
12
13
14
15
16
17
17
18
18
19
20
21
22
23
23
24
24
25
26
27
28
29
30
31
32
1
2
3
4
5
6
7
8
9
9
9
10
11
12
13
14
15
16
17
17
18
18
19
20
21
22
23
23
24
24
25
26
27
28
29
30
31
32
1
PIN GROOVED S.S.(10)
7661630
Not Available
2
CUSHION VIBRATION
5810570
Not Available
3
WASHER WEAR
5431426
Not Available
4
SPRING COMPRESSION
7041275
Not Available
5
KNOB DOOR COMP P. RED
5431383136
Not Available
6
DOOR COMPART.P. RED Substituted by 2201145-136
5431324136
Not Available
7
PIN HINGE Substituted by 2635012
7661629
$23,09 Unit Price incl. VAT
8
HINGE ASM COMPARTMENT
2635012
Not Available
9
WASHER LOCK S.S.(10)
7555838
Not Available
10
BOLT S.S.(10)
7515121
$0,83 Unit Price incl. VAT
11
BOLT S.S.
7515365
Not Available
12
CAP FIRE EXT. YELLOW
5431398053
$9,23 Unit Price incl. VAT
13
PAD FOAM FIRE EXT.
5810799
Not Available
14
WASHER FLAT S.S.(10)
7555831
Not Available
15
NUT HEX S.S.(10)
7542335
Not Available
16
LID BCKT FR.STORAGE Substituted by 5432579
5431489
Not Available
17
SEAL FR.STORAGE BKT.
5521252
Not Available
18
WASHER FLAT S.S.(10)
7555839
$0,93 Unit Price incl. VAT
19
BOLT(10)
7515127
Not Available
20
BOX TOOL
5431508
Not Available
21
HOOK #D# SST/SS (10)
5224472
Not Available
22
STRAP-BATTERY (Twin ES)
5430621
Not Available
23
CLIP
5240187
$10,28 Unit Price incl. VAT
24
RIVET
7621478
Not Available
25
BUCKET FR.STORAGE Substituted by 5432526
5431394
Not Available
26
BOLT(10)
7515130
Not Available
27
RETAINER DOOR SUPPORT
5222782
$1,98 Unit Price incl. VAT
28
SUPPORT DOOR COMPART.
5224471
$31,80 Unit Price incl. VAT
29
SPRING DOOR SUPPORT
7042038
Not Available
30
SCREW(10)
7512049
Not Available
31
WASHER FLAT S.S.(10)
7555837
$2,09 Unit Price incl. VAT
32
BAFFLE AIR INTAKE
5431546
$17,21 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
