1
Engine displacement
800
2
Year
2003
3
Trim
800 XC SP EDGE M-10 F/O
4
Parts Catalog

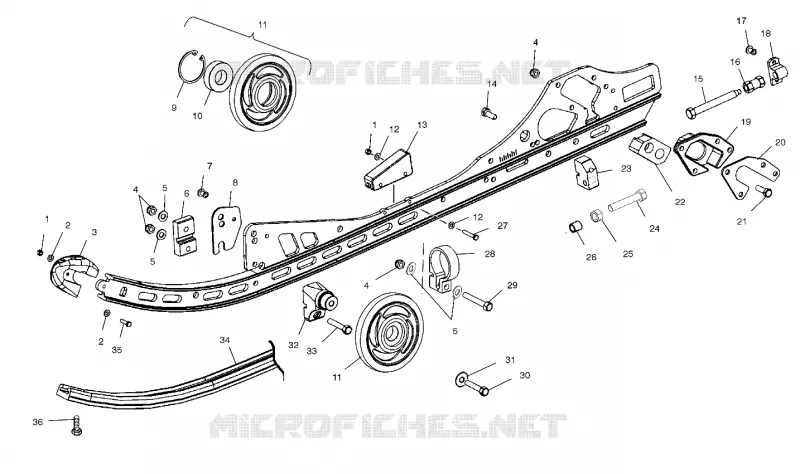

RAIL MOUNTING (M-10)
5
Parts Diagram
Parts Catalog
BRAKE
by
REAR SUSPENSION (M-10)
RAIL MOUNTING (M-10)
-
Asm. Rail M-10 Natural RH [Incl. 1-3 13 17 18 27 35]
1541677309
$455,69 Unit Price incl. VAT
-
Asm. Rail M-10 Natural LH [Incl. 1-3 13 17 18 27 35]
1541676309
$455,69 Unit Price incl. VAT
-
Asm. Rail M-10 ACE RH [Incl. 1-3 13 17 18 27 35]
1541902309
Not Available
-
Asm. Rail M-10 ACE LH [Incl. 1-3 13 17 18 27 35]
1541901309
Not Available
1
NUT-NYLOC 10-24 Y
7541925
$1,56 Unit Price incl. VAT
2
WASHER-.20X.67X.048-Y
7555792
$9,44 Unit Price incl. VAT
3
CAP-RAIL TIP
5434374
$36,74 Unit Price incl. VAT
4
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
5
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
6
BLOCK-RAIL SUPPORT
5132577
Not Available
7
RIVET
7661845
$2,09 Unit Price incl. VAT
8
PLATE-RAIL SUPPORT
5244651
Not Available
9
RING RETAINING
7718407
$9,44 Unit Price incl. VAT
10
BEARING
3514303
$20,99 Unit Price incl. VAT
11
Asm. Wheel Scrolled Yellow [Incl. 9 10]
1590275216
Not Available
11
ASM-WHEEL SCRLLD 5.35 BLUE (Incl. 8 9)
1590275312
Not Available
12
WASHER FLAT
7555783
$7,34 Unit Price incl. VAT
13
Liner Bumper
5432946
$19,94 Unit Price incl. VAT
13
Bumper (M-10 ACE)
5412336
Not Available
13
BUMPER-JOUNCE RAIL
5411947
$19,83 Unit Price incl. VAT
14
BOLT
7512392
$9,44 Unit Price incl. VAT
15
SCREW
7517773
$41,99 Unit Price incl. VAT
16
NUT-TENSION ADJ 7/16-14
5132712
Not Available
17
RIVET
7621501
$4,19 Unit Price incl. VAT
18
BLOCK-IDLER BOLT ADJ THIN 7/16
5132611
$55,64 Unit Price incl. VAT
19
Guide Slider LH
5631188
Not Available
19
Guide Slider RH
5631189
Not Available
20
PLATE-COUPLER BLOCK
5245045
Not Available
21
BOLT
7512310
$4,19 Unit Price incl. VAT
22
BLOCK-SLIDER LONG M-10 RH
5434240
$26,45 Unit Price incl. VAT
22
BLOCK-SLIDER LONG M-10 LH
5434239
$26,45 Unit Price incl. VAT
23
BLOCK-SHOCK PIVOT THREADED
5132584
Not Available
24
SCR-HH-3/8-16X2.75GR5 ZY3
7515511
$7,34 Unit Price incl. VAT
25
NUT-3/8-16-Y
7542404
$3,14 Unit Price incl. VAT
26
SPACER-.390X.56X.43 [Item NotAvailable]
5133009
Not Available
27
SCREW-#10-24X1.5 TRX/PN MC-Y
7510504
$10,49 Unit Price incl. VAT
27
BOLT(10)
7511967
$9,44 Unit Price incl. VAT
28
CLAMP-RESERVIOR M10
5132832
$41,99 Unit Price incl. VAT
29
Bolt Hex
7515319
$9,44 Unit Price incl. VAT
30
SCR-HH-5/16-18X3.75 GR5 ZY3
7515382
$4,19 Unit Price incl. VAT
31
WASHER LOCK
7556179
$11,54 Unit Price incl. VAT
32
BLOCK WHEEL MOUNT LWT
5631065
$52,49 Unit Price incl. VAT
33
SCR-HH-5/16-18X1.75 GR5 ZY3
7512329
$7,34 Unit Price incl. VAT
34
HI-FAX-M-10 NATURAL
5521563309
5521571
$68,24 Unit Price incl. VAT
35
SCREW(10)
7511975
Not Available
36
SCR-1/4-20X3/4 TR/TX/TAP-Y
7515199
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
