1
Engine displacement
800
2
Year
2003
3
Trim
800 XC SP EDGE M-10 F/O
4
Parts Catalog
CHAINCASE
5

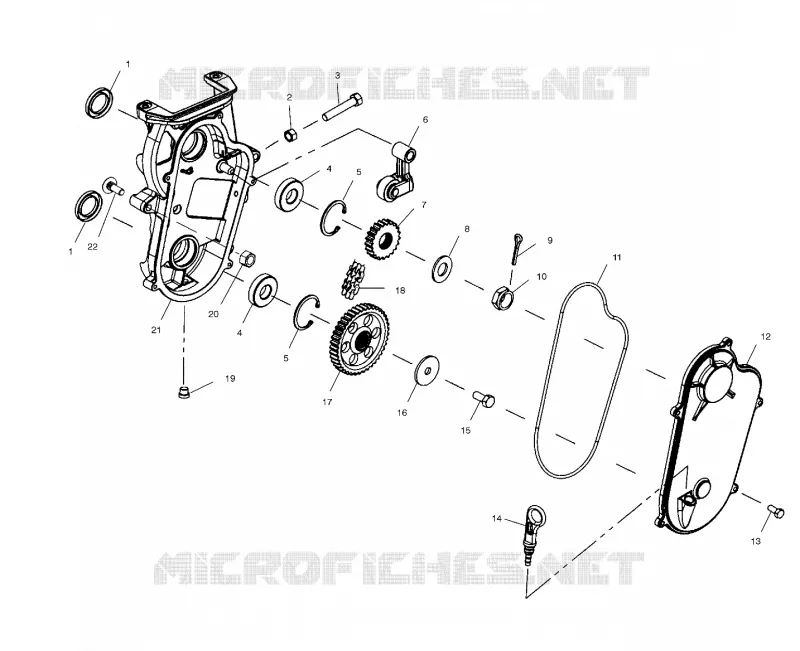

Parts Diagram
Parts Catalog
COOLING SYSTEM
by
SHOCK (RYDE FX)(IFS)
CHAINCASE
1
SEAL OIL
3610030
$36,74 Unit Price incl. VAT
2
NUT-CHAIN ADJUSTER 3/8-16
5132237
$17,84 Unit Price incl. VAT
3
SCREW(10)
7512470
Not Available
4
BEARING BALL
3514309
3515910
$30,23 Unit Price incl. VAT
5
RING RETAINING
7718406
$11,54 Unit Price incl. VAT
6
WHEEL C/C IDLER
5630123
Not Available
6
BEARING
3553002
$20,99 Unit Price incl. VAT
6
WASHER THRUST(10)
7558702
$3,14 Unit Price incl. VAT
6
TIGHTENER CHAINCASE (Includes the following)
1332213
Not Available
6
BLOCK TIGHTENER W/ANGLE
5630958
Not Available
6
PIN CHAIN TIGHTENER
7662210
Not Available
7
Sprocket 25T 3/4W
3221102
$68,24 Unit Price incl. VAT
8
WASHER SPRING
7571620
$13,64 Unit Price incl. VAT
9
PIN COTTER
7661401
$1,56 Unit Price incl. VAT
10
NUT
7542811
7547202
$10,49 Unit Price incl. VAT
11
GASKET O-RING CHAINCASE
5411497
$36,74 Unit Price incl. VAT
12
CVR CHNCASE 7.92 CD ALUM
5132368
$238,34 Unit Price incl. VAT
13
SCR-1/4-20X1 1/4-TRIRD HX WH-Y
7512242
$4,19 Unit Price incl. VAT
14
ASM-DIPSTICK W/MAGNET EDGE
1332250
$73,49 Unit Price incl. VAT
15
SCR-5/16-18 3/4 HXHD/NYL GR8-P
7517979
$7,34 Unit Price incl. VAT
16
WASHER-SPRING CON 5/16X.090 Z
7571618
$11,54 Unit Price incl. VAT
17
SPROCKET 40T [W/1.352IN. COBRA AND 2.0 SERIES 4 TRACK]
3222099
3225069
$73,49 Unit Price incl. VAT
18
CHAIN 76P 3/4W
3221108
$262,49 Unit Price incl. VAT
19
PLUG
7052115
$10,49 Unit Price incl. VAT
20
NUT-HEX-3/8-16 A ZTB NYL
7542451
$2,09 Unit Price incl. VAT
21
CHAINCASE-7.92 CD ALUM
5132773
Not Available
22
BOLT(10)
7515477
$52,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
