1
Engine displacement
700
2
Year
1998
3
Trim
EURO 700 RMK - E980966
4
Parts Catalog
WATER PUMP 700 RMK 0980966 AND EUROPEAN 700 RMK E980966 (4943724372C008)
5
Parts Diagram
Parts Catalog
CYLINDER 700 RMK 0980966 AND EUROPEAN 700 RMK E980966 (4943724372C007)
by
PISTON CRANKSHAFT 700 RMK 0980966 AND EUROPEAN 700 RMK E980966 (4943724372C009)

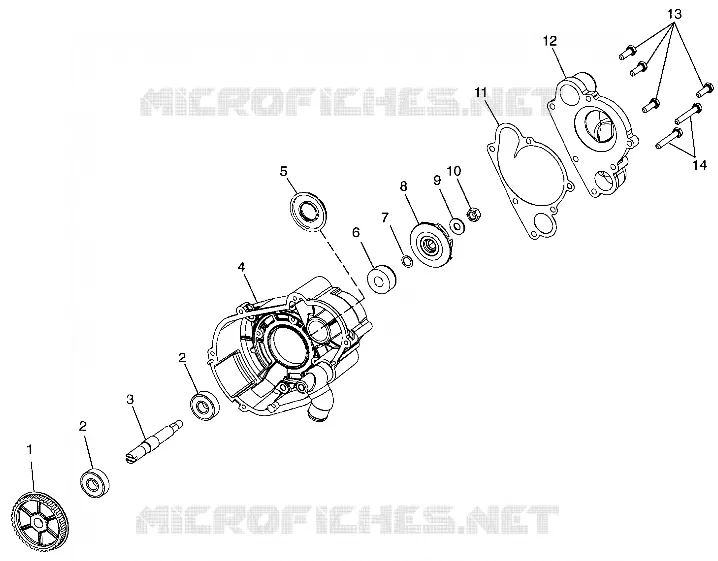

WATER PUMP 700 RMK 0980966 AND EUROPEAN 700 RMK E980966 (4943724372C008)
1
PULLEY WATERPUMP DRIVEN Substituted by 3021044
3040158
$83,99 Unit Price incl. VAT
2
BEARING BALL SLD.DGRV.
3584008
Not Available
3
SHAFT WATERPUMP
5131283
Not Available
4
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
5
SEAL (Magneto)
3610044
$41,99 Unit Price incl. VAT
6
SEAL WATERPUMP
3610050
Not Available
7
WASHER FLAT SS.(10)
7556006
$7,34 Unit Price incl. VAT
8
IMPELLER WATERPUMP
5432330
$40,94 Unit Price incl. VAT
9
WASHER
7555874
$4,19 Unit Price incl. VAT
10
NUT-HEX M8X1.25 NYLOCK-SS [S99CR]
7546804
$2,09 Unit Price incl. VAT
11
GASKET W#PUMP.COVER
5811279
Not Available
12
COVER WATERPUMP
5630613
Not Available
13
SCREW-M6X1.0X20-HX/FL-Y/D
7516822
$4,19 Unit Price incl. VAT
14
SCR-M6X1.0X35 HX/FL-Y/D
7516827
$12,59 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
