1
Engine displacement
700
2
Year
2001
3
Trim
700 RMK 144
4
Parts Catalog
FRONT SUSPENSION
5
Parts Diagram
Parts Catalog
BRAKE
by
SKI

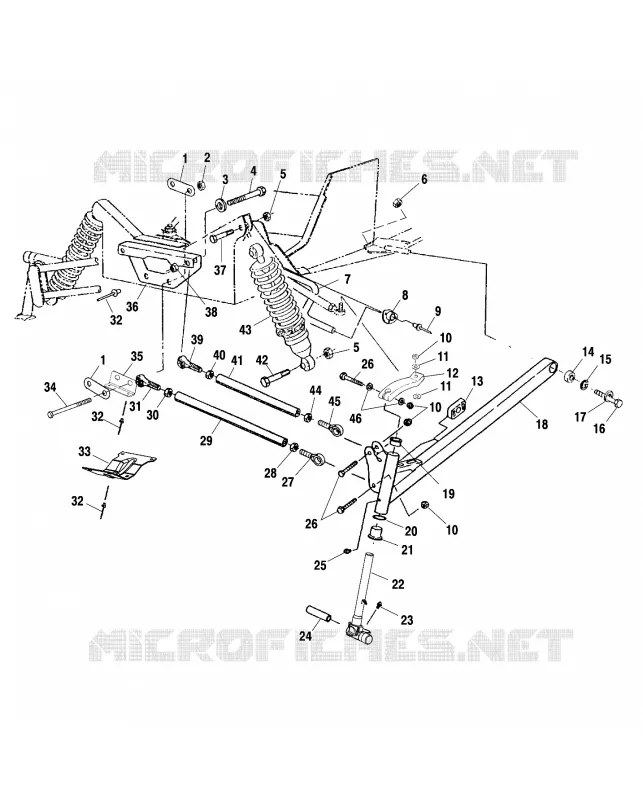

FRONT SUSPENSION
1
1
2
3
4
5
5
6
7
8
9
10
10
10
11
11
12
13
14
15
16
17
18
18
18
18
19
20
21
22
23
24
25
26
26
27
28
29
30
31
32
32
32
33
34
35
36
37
38
39
40
41
42
43
43
43
43
43
43
43
43
43
43
43
43
43
43
43
43
43
43
43
43
43
43
43
43
43
44
45
46
1
STRAP-SPACER BOTTOM
5211345
$19,94 Unit Price incl. VAT
2
NUT FLEX (10)
7542703
Not Available
3
WASHER THRUST(10)
7558702
$3,14 Unit Price incl. VAT
4
BOLT(10)
7512551
Not Available
5
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
6
NUT 7/16X20 HVY NYLON ZY3
7547140
$18,89 Unit Price incl. VAT
7
BAR TORSION 9/16 BLK
5243559067
Not Available
8
BUSHING SWAY BAR (XLT SKS)
5432412
$27,29 Unit Price incl. VAT
9
RIVET (50)
7621477
$2,09 Unit Price incl. VAT
10
Nut
7542403
Not Available
11
WASHER-.390X.940X.030-FL-Y
7555797
$7,34 Unit Price incl. VAT
12
STEERING ASM ALUM LWT
5132083
Not Available
13
SLIDE SWAYBAR 9/16
5432674
Not Available
14
BEARING-SPHERICAL 7/16 PLASTIC
7061042
$54,59 Unit Price incl. VAT
15
RING RETAINING(10)
7710437
$5,76 Unit Price incl. VAT
16
BOLT(10)
7512579
Not Available
17
WASHER(10)
7555801
$7,34 Unit Price incl. VAT
18
TRAILING ARM LH BLK ASM. (Incl. 14 15)
1820687067
Not Available
18
TRAILING ARM RH BLK ASM. (Incl. 14 15)
1820688067
Not Available
19
BUSHING FLANGE
3573909
$4,19 Unit Price incl. VAT
20
BUSHING
7556509
$3,14 Unit Price incl. VAT
21
BUSHING FLANGED
3574208
$6,29 Unit Price incl. VAT
22
SHAFT-SPINDLE W/STEER STOP BLK
6230155067
$160,11 Unit Price incl. VAT
23
FITTING LUB W/BALL
7080306
$5,76 Unit Price incl. VAT
24
BUSHING [BEA]
5010158
$27,29 Unit Price incl. VAT
25
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
26
SCR-3/8-24X2 HX/CP GR5-Y-SP
7517583
$7,34 Unit Price incl. VAT
27
ROD END-RADIUS LH LOWER
7061051
$99,74 Unit Price incl. VAT
28
NUT-1/2-20 HX JM-Y
7542711
$4,19 Unit Price incl. VAT
29
ROD RAD. LOWER ALUMINUM
5132498
Not Available
30
NUT-1/2-20 LH JAM
7547028
$4,19 Unit Price incl. VAT
31
ROD END-RADIUS RH LOWER
7061052
$99,74 Unit Price incl. VAT
32
RIVET-3/16-.090-.290
7661637
$2,09 Unit Price incl. VAT
33
BRACE PAN LOWER
5242575067
$47,24 Unit Price incl. VAT
34
BOLT(10)
7512684
Not Available
35
BRKT. RADIUS ROD BOTTOM
5242578
$68,24 Unit Price incl. VAT
36
BRACE BULKHEAD FRONT BLK
1012575067
$38,42 Unit Price incl. VAT
37
SCREW
7515415
$2,09 Unit Price incl. VAT
38
NUT LOCK (10)
7542503
$18,89 Unit Price incl. VAT
39
ROD END-RADIUS RH 7/16#
7061049
Not Available
40
NUT(10)
7547117
Not Available
41
ROD RADIUS UPPER ALUM 5/8# Substituted by 5133011
5333769
Not Available
42
BOLT Substituted by 7515491
7515433
$3,14 Unit Price incl. VAT
43
RETAINER SPRING BODY THD. [1 PER SHOCK]
1500063
$83,99 Unit Price incl. VAT
43
RING SPRING PRELOAD ADJ. [1 PER SHOCK]
5431734
$104,99 Unit Price incl. VAT
43
RETAINER SPRING SLOTTED CAST
5630580
5020618
$36,74 Unit Price incl. VAT
43
SHOCK GAS SELECT IFS
7041886
Not Available
43
SPRING COMP. IFS 100# BLK
7041551067
$115,49 Unit Price incl. VAT
44
NUT JAM(10)
7542520
$4,19 Unit Price incl. VAT
45
ROD END-RADIUS LH 7/16#
7061048
Not Available
46
Washer .105
7555832
$4,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
