1
Engine displacement
330
2
Year
2003
3
Trim
MAGNUM 330 2X4 - A03CB32AA
4
Parts Catalog

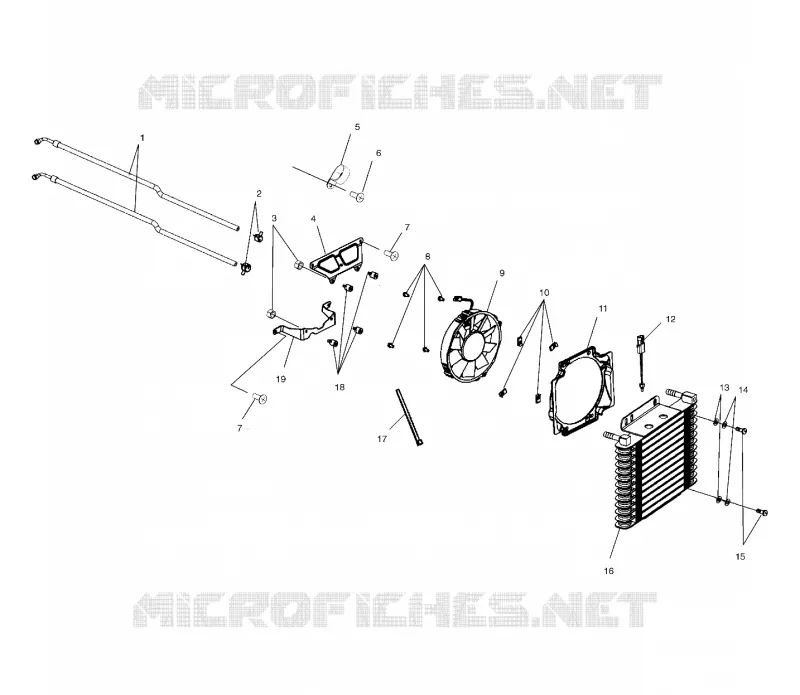

OIL COOLING
5
Parts Diagram
Parts Catalog
DECALS
by
HANDLEBAR
OIL COOLING
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
1
HOSE-COOLER 9/16# 90° SWIVEL
5412039
$125,99 Unit Price incl. VAT
2
CLAMP-HOSE MUBEA
7080862
Not Available
3
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
4
DESC NOT_AVAILABLE (If built after 10/10/00)(FB)
5245416067
$73,07 Unit Price incl. VAT
5
CLAMP-HOSE 1.312 VINYL COATED
7080851
Not Available
6
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
7
SCR-HXFL-1/4-20X0.5 GR5.1 ZY3
7515133
$7,34 Unit Price incl. VAT
8
Screw
7517659
$7,34 Unit Price incl. VAT
9
FAN MOTOR
2410157
Not Available
10
U-Clip
7670111
Not Available
11
SHROUD-FAN ATV
5433353
$112,86 Unit Price incl. VAT
12
THERMISTER
4010274
$188,99 Unit Price incl. VAT
13
WASHER [INTL]
7558301
$2,09 Unit Price incl. VAT
14
WASHER SPRING LOCK
7552801
$3,14 Unit Price incl. VAT
15
BOLT(10)
7512240
$7,34 Unit Price incl. VAT
16
DESC NOT_AVAILABLE
1240074
Not Available
17
TIE-CABLE PRESS MNT BLK
7080999
$17,84 Unit Price incl. VAT
18
Mount Rubber
5411548
$52,49 Unit Price incl. VAT
19
BRKT ASM LOWER OIL COOLER [Item NotAvailable] (If built after 10/10/00)(FB)
1013519
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
