1
Engine displacement
700
2
Year
2009
3
Trim
RANGER 6X6 700 EFI - R09RF68AF/AR/AZ
4
Parts Catalog

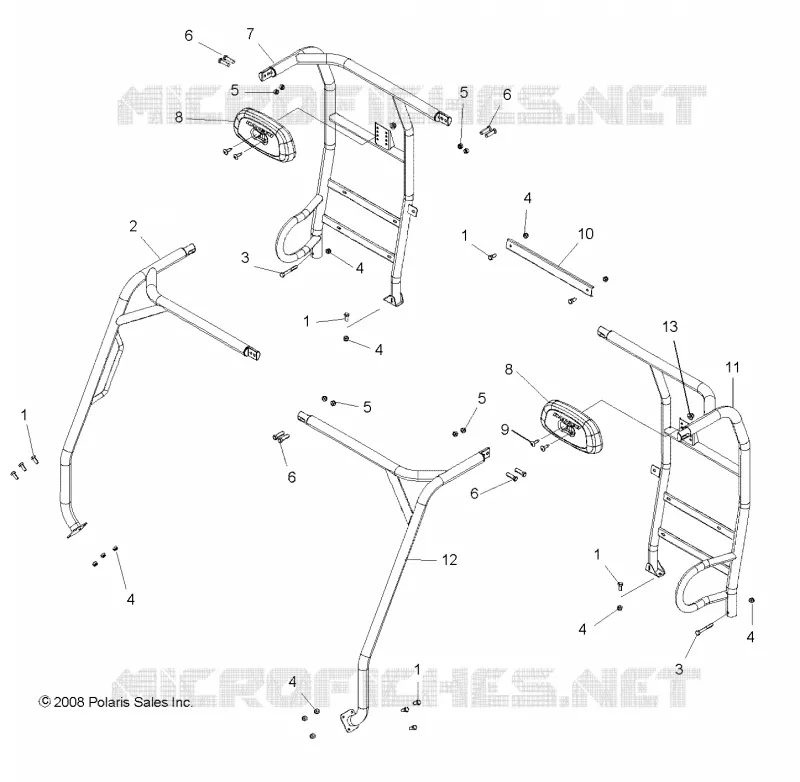

CHASSIS, CAB FRAME
5
Parts Diagram
Parts Catalog
REAR BRAKE CALIPER
by
DRIVE TRAIN, FRONT GEARCASE
CHASSIS, CAB FRAME
7
8
8
9
10
11
12
13
1
BOLT(10)
7515321
Not Available
2
Frame Cab Front Black RH
1015906067
$1 086,74 Unit Price incl. VAT
3
SCR-HH-5/16-18X2.25 GR5 ZY3
7515339
$9,44 Unit Price incl. VAT
4
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
5
NUT-HEX-3/8-16 A ZTB NYL
7542451
$2,09 Unit Price incl. VAT
6
SCR-3/8 16X1 1/4 HXSOC CS ZY3
7517935
$4,19 Unit Price incl. VAT
7
Frame Cab RH Rear Black
1015908067
Not Available
8
HEADREST BLACK
5437938070
Not Available
9
SCR-1/4-20X1 TRX TRHD GR5-M
7517230
$2,09 Unit Price incl. VAT
10
Bracket Cab Frame Center Black (AA)
5248164067
Not Available
11
Frame Cab LH Rear Black
1015907067
Not Available
12
Frame Cab Front Black LH
1015905067
Not Available
13
NUT NYLOK FLANGED 1/4 [INTL]
7542153
$3,14 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
