1
Engine displacement
500
2
Year
1992
3
Trim
SWE 500 SKS - S920574
4
Parts Catalog

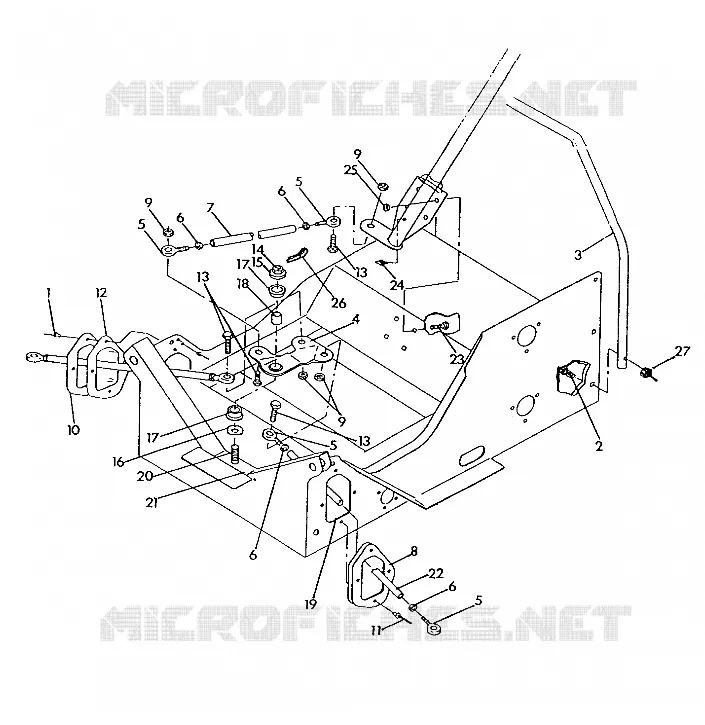

STEERING 500 SP/500 SKS (4921262126021A)
5
Parts Diagram
Parts Catalog
STEERING
by
SUSPENSION 500 SP/500 SKS (4921262126027A)
STEERING 500 SP/500 SKS (4921262126021A)
1
POP RIVET(50)
7621303
Not Available
2
BOLT-CARRIAGE(10)
7512262
Not Available
3
HOOP STEERING
1011513067
Not Available
4
STRG.ARM CTR BLK.
1822040067
Not Available
4
ARM STEERING CTR BLK. (SP)
1822093067
$21,20 Unit Price incl. VAT
5
ROD END RH Substituted by 7060165
7060125
7060165
$99,74 Unit Price incl. VAT
5
ROD END LH Substituted by 7060164
7060124
7060164
$99,74 Unit Price incl. VAT
6
NUT-3/8-24-(L.H.)-Y
7542424
$1,56 Unit Price incl. VAT
6
NUT-3/8-24-2B-Z
7542401
$4,19 Unit Price incl. VAT
7
ROD-DRAG LINK
5332712
Not Available
8
PLATE LH BOOTSEAL Substituted by 5210959-067
5210959
Not Available
9
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
10
PLATE RH BOOT SEAL
5210904
Not Available
11
DESC NOT_AVAILABLE
7821301
Not Available
12
BOOT-TIE ROD
5410328
Not Available
13
SCR-HH-3/8-24X5.5 GR5 ZY3
7512404
$7,34 Unit Price incl. VAT
14
NUT(10)
7542712
$17,84 Unit Price incl. VAT
15
WASHER
7555721
$2,09 Unit Price incl. VAT
16
WASHER-WAVE 7/8X1X.010
7555735
$7,34 Unit Price incl. VAT
17
BUSHING
3563907
$7,34 Unit Price incl. VAT
18
BUSHING-SPACER
5010161
Not Available
19
BOOT LH
5410388
Not Available
20
BOLT(10)
7512658
Not Available
21
BLOCK-CTR.STEERING
5130534
Not Available
22
ROD TIE (BLK.)
5020432067
Not Available
22
ROD TIE BLACK
5332713067
Not Available
23
BOLT(10) Substituted by 7512377
7512394
7512377
$9,44 Unit Price incl. VAT
24
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
25
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
26
PIN COTTER
7661203
$2,09 Unit Price incl. VAT
27
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
