1
Engine displacement
0
2
Year
1993
3
Trim
WIDE TRAK - 0932064
4
Parts Catalog
PISTON CRANKSHAFT WIDETRAK / 0932064 (4922982298033A)
5
Parts Diagram
Parts Catalog
WATER PUMP WIDETRAK / 0932064 (4922982298032A)
by
RECOIL STARTER ASSEMBLY WIDETRAK / 0932064 (4922982298038A)

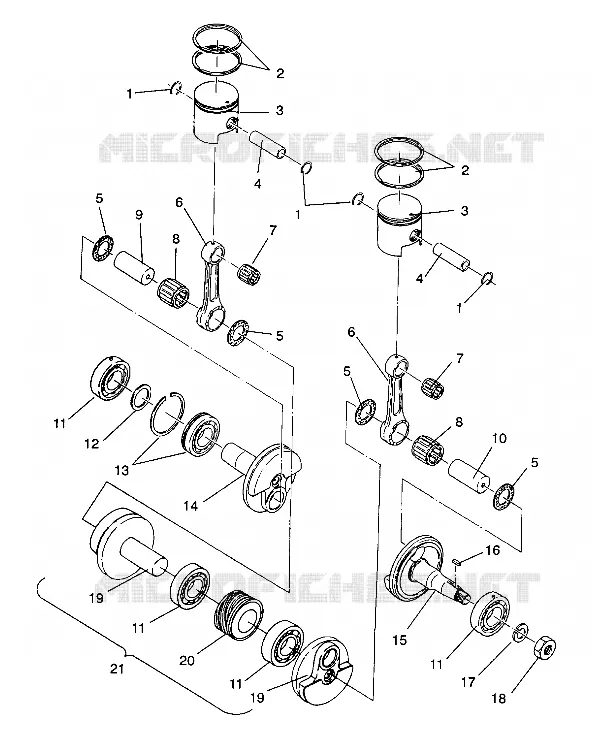

PISTON CRANKSHAFT WIDETRAK / 0932064 (4922982298033A)
1
CLIP PISTON PIN (10)
3083839
$7,34 Unit Price incl. VAT
2
RING PISTON .010 O/S (.010 Over)
3083970
Not Available
2
RING PISTON .020 O/S (.020 Over)
3083971
Not Available
2
RING PISTON STD. (Standard)
3083963
Not Available
3
PISTON .010 O/S (.010 Over) (Incl. 16)
3083943
Not Available
3
PISTON .020 O/S (.020 Over) (Incl. 16)
3083944
Not Available
3
PISTON * (Standard) (Incl. 16)
3083942
Not Available
4
PIN PISTON
3083838
2207579
$356,99 Unit Price incl. VAT
5
SPACER CRANK PIN
3083277
$27,29 Unit Price incl. VAT
6
ROD-CONNECTING
3083252
$236,24 Unit Price incl. VAT
7
BEARING END SMALL
3083216
3515064
$25,71 Unit Price incl. VAT
8
BEARING-LARGE END Substituted by 3085628
3083255
$54,59 Unit Price incl. VAT
9
CRANK PIN 2
3083456
5141629
$57,74 Unit Price incl. VAT
10
PIN CRANK
3083233
Not Available
11
BEARING BALL Substituted by 3084586
3083480
3515063
$60,89 Unit Price incl. VAT
12
SPACER CRANKSHAFT
3080447
$3,24 Unit Price incl. VAT
13
BALL BEARING C-4
3083714
Not Available
14
CRANKSHAFT Substituted by 3085179
3084357
Not Available
15
CRANKSHAFT #1
3083362
Not Available
16
KEY
3081447
Not Available
17
WASHER SPRING
3083094
7557228
$6,29 Unit Price incl. VAT
18
NUT
3083093
7547895
$7,34 Unit Price incl. VAT
19
CRANKSHAFT 2 (Incl. 6)
3083713
$806,39 Unit Price incl. VAT
20
GEAR DRIVE OIL PUMP
3083782
$150,14 Unit Price incl. VAT
21
CRANKSHAFT ASM. Substituted by 3084612 (Incl. 2-11 21)
3084360
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
