1
Engine displacement
500
2
Year
2007
3
Trim
OUTLAW 500
4
Parts Catalog

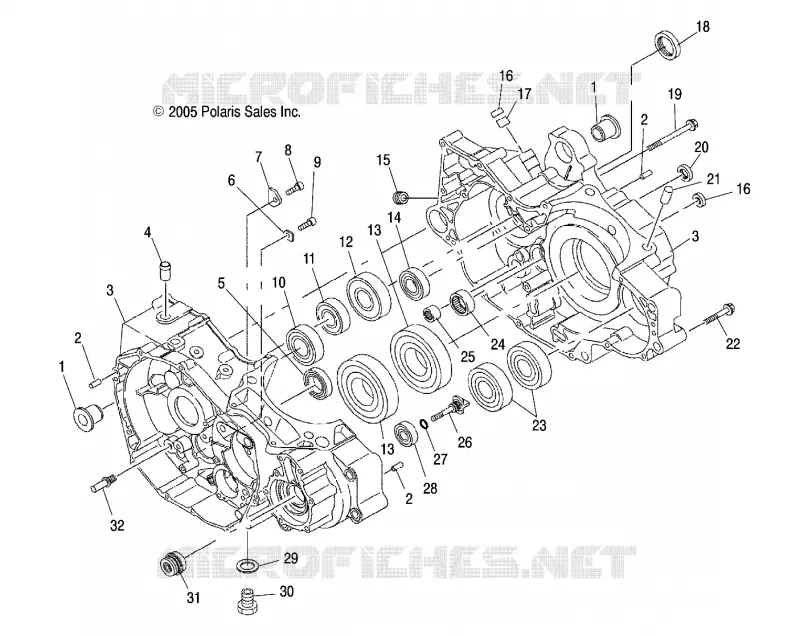

CRANKCASE
5
Parts Diagram
Parts Catalog
CLUTCH
by
ENGINE, CRANKSHAFT AND PISTON
CRANKCASE
1
1
2
2
2
3
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
1
Collar
3087930
Not Available
2
PIN DOWEL
3086838
$13,64 Unit Price incl. VAT
3
Asm. Crankcase [Incl. all less 6-9 23][AB]
3089679
$1 390,19 Unit Price incl. VAT
4
PIPE AIR BREATHER
3085525
Not Available
5
Bearing Ball
3087934
Not Available
6
Plate Stopper B
3089585
Not Available
7
Plate Stopper
3088138
$5,45 Unit Price incl. VAT
8
Bolt Socket Head
3089439
$9,44 Unit Price incl. VAT
9
Bolt
3089586
$2,09 Unit Price incl. VAT
10
Bearing Ball
3087935
Not Available
11
BEARING BALL
3084834
$40,94 Unit Price incl. VAT
12
Bearing Ball
3087929
Not Available
13
Bearing Ball
3089581
Not Available
14
Bearing Ball
3087928
Not Available
15
PLUG BLIND
3084862
Not Available
16
Seal Oil
3087926
Not Available
17
Bearing Release
3087925
Not Available
18
SEAL OIL
3086510
$73,49 Unit Price incl. VAT
19
Bolt Flange
3089493
Not Available
20
Seal Oil
3087927
Not Available
21
Pin Knock
3087266
Not Available
22
Bolt Flange
3089492
Not Available
23
Bearing Ball
3089582
Not Available
24
Bearing Needle
3089584
Not Available
25
Bearing Needle
3089440
$29,49 Unit Price incl. VAT
26
Asm. Shaft Water Pump [Incl. 27 28]
3089583
Not Available
27
O-Ring
3087938
Not Available
28
Bearing Ball
3087937
Not Available
29
GASKET
3082956
$9,44 Unit Price incl. VAT
30
Plug
3089438
Not Available
31
SEAL MECHANICAL
3084837
$125,99 Unit Price incl. VAT
32
PIN STOPPER
3086195
$19,94 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
