1
Engine displacement
1000
2
Year
2017
3
Trim
ranger-crew-1000-diesel-md
4
Parts Catalog
ENGINE, CYLINDER HEAD AND PRECOMBUSTION CHAMBER
5
Parts Diagram
Parts Catalog
ENGINE, CRANKSHAFT
by
ENGINE, FLYWHEEL COVER

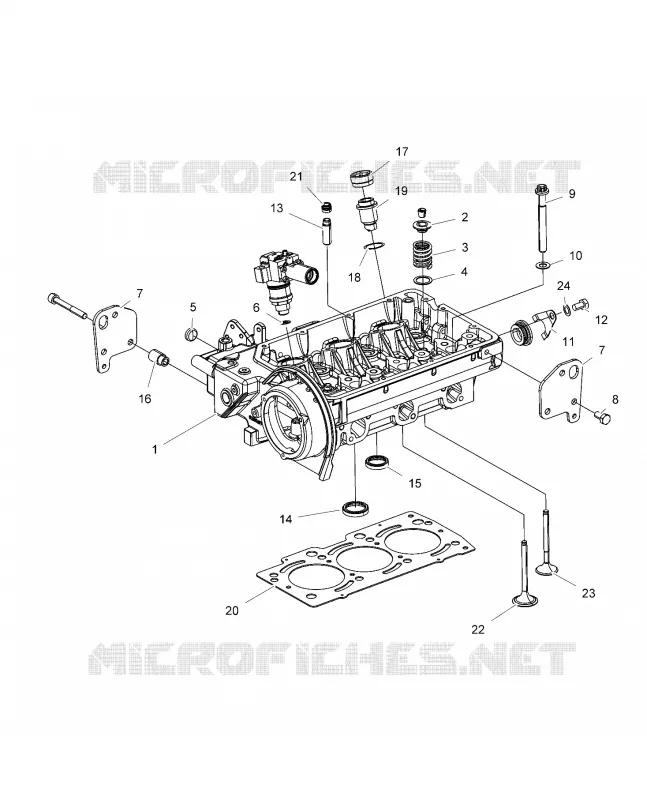

ENGINE, CYLINDER HEAD AND PRECOMBUSTION CHAMBER
1
2
3
4
5
6
7
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
20
20
21
22
23
24
1
HEAD CYLINDER
3040255
$2 659,64 Unit Price incl. VAT
2
RETAINER W/HALF COLLETS
3040274
$73,49 Unit Price incl. VAT
3
SPRING VALVE
3040273
$27,29 Unit Price incl. VAT
4
WASHER 19x25x1
3040149
$10,49 Unit Price incl. VAT
5
SHUTTER CAP D18
3040190
$7,34 Unit Price incl. VAT
6
SPARK ARRESTOR
3040114
$20,99 Unit Price incl. VAT
7
LIFTING BRACE
3040184
Not Available
8
SCREW HXHD M8x16
3040022
$7,34 Unit Price incl. VAT
9
SCREW TORX M10x90
3040230
$19,94 Unit Price incl. VAT
10
WASHER 10.2x19x1
3040148
$7,34 Unit Price incl. VAT
11
LEAF SPRING
3040108
$41,99 Unit Price incl. VAT
12
SCREW M8x14
3040026
$7,34 Unit Price incl. VAT
13
VALVE GUIDE STD.
3040100
$52,49 Unit Price incl. VAT
13
VALVE GUIDE +0.50
3040254
$62,99 Unit Price incl. VAT
14
SEAT INTAKE VALVE
3040154
$83,99 Unit Price incl. VAT
15
SEAT EXHAUST VALVE
3040155
$83,99 Unit Price incl. VAT
16
SPACER
3040061
$12,59 Unit Price incl. VAT
17
NUT LOCK PRECHAMBER
3040070
$57,74 Unit Price incl. VAT
18
SPACER PRECHAMBER
3040060
$52,49 Unit Price incl. VAT
19
CHAMBER PRECOMBUSTION
3040127
$278,24 Unit Price incl. VAT
20
GASKET HEAD 1 HOLE
3040097
$330,74 Unit Price incl. VAT
20
GASKET HEAD 2 HOLE
3040098
$330,74 Unit Price incl. VAT
20
GASKET HEAD 3 HOLE
3040099
$330,74 Unit Price incl. VAT
21
NUT M10x1.5
3040056
$9,44 Unit Price incl. VAT
22
VALVE INTAKE
3040213
$83,99 Unit Price incl. VAT
23
VALVE EXHAUST
3040215
$99,74 Unit Price incl. VAT
24
WASHER 8X15X1.5
3040145
$14,69 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
