1
Engine displacement
0
2
Year
2006
3
Trim
HAWKEYE 2X4/4X4 INTERNATIONAL - A06LB27FA
4
Parts Catalog

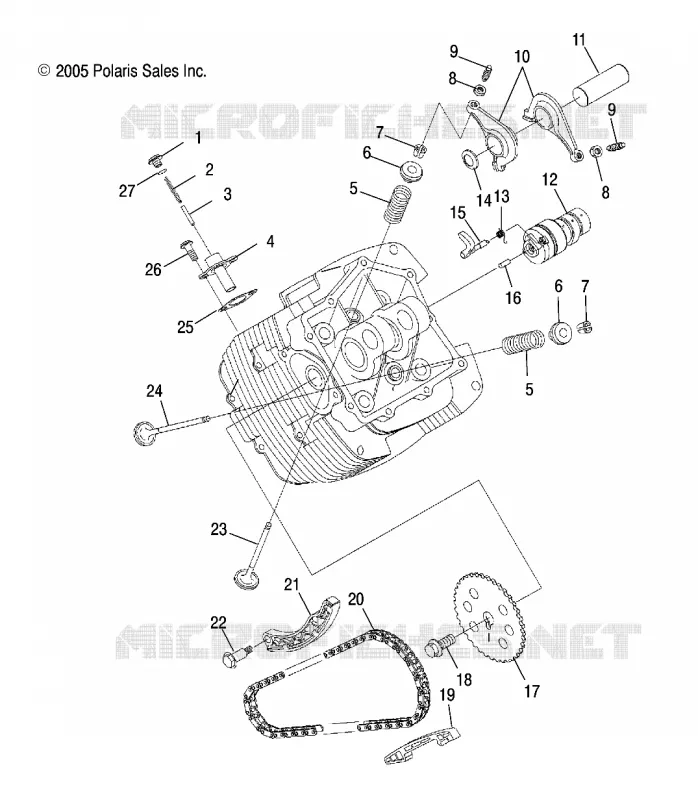

INLET EXHAUST
5
Parts Diagram
Parts Catalog
MAGNETO
by
STARTING MOTOR
INLET EXHAUST
1
2
3
4
5
5
6
6
7
7
8
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
1
Plug
3087129
Not Available
2
Spring
3087131
Not Available
3
Pin
3087132
$19,94 Unit Price incl. VAT
4
Asm. Tensioner [Incl. 1-4]
3086493
Not Available
5
Spring Valve
3089831
Not Available
6
Retainer Spring Valve
3087203
Not Available
7
Collet Valve
3084908
$9,44 Unit Price incl. VAT
8
Nut
3088846
$6,29 Unit Price incl. VAT
9
Screw Adjusting
3089834
Not Available
10
Asm. Rocker Arm [Incl. 8 9]
3089833
Not Available
11
Shaft Rocker
3089832
Not Available
12
Camshaft Complete [Incl. 13 15 16]
3089828
$493,49 Unit Price incl. VAT
13
Spring Return
3089830
Not Available
14
WASHER-WAVE
3085836
$10,49 Unit Price incl. VAT
15
Lever Release
3089829
Not Available
16
Pin Dowel
3084899
$13,64 Unit Price incl. VAT
17
Sprocket 2
3089835
Not Available
18
Bolt Flange
3089839
Not Available
19
Guide Chain
3089837
Not Available
20
Chain Timing
3089836
Not Available
21
Lever
3089838
Not Available
22
Bolt Pivot Lever
3089878
$13,64 Unit Price incl. VAT
23
VALVE INTAKE
3085778
Not Available
24
VALVE-EXHAUST
3086441
$104,99 Unit Price incl. VAT
25
Gasket Tensioner
3086448
$12,59 Unit Price incl. VAT
26
Bolt Flange
3087150
Not Available
27
Gasket
3087130
$20,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
