1
Engine displacement
600
2
Year
2018
3
Trim
600 AXYS PRO RMK 155
4
Parts Catalog

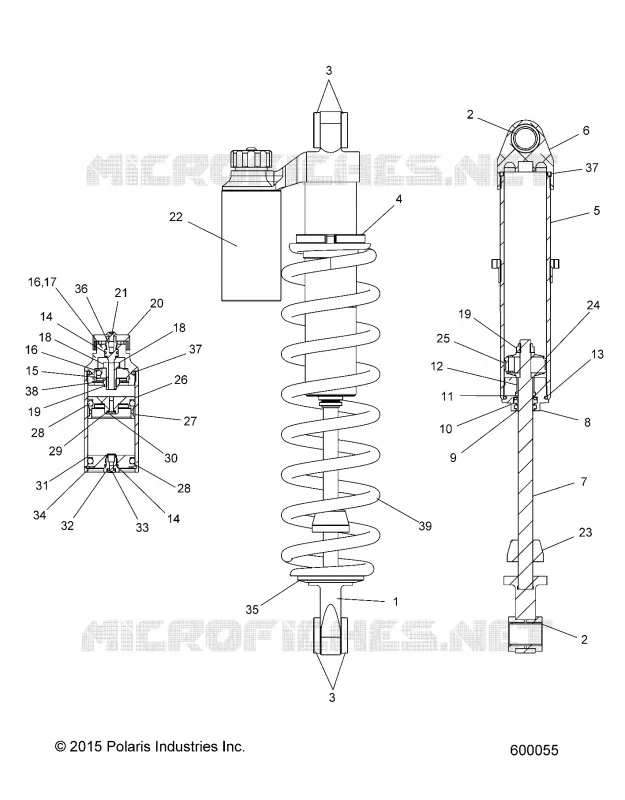

SUSPENSION, SHOCK, REAR TRACK, W/RES. (SNOW CHECK INTL.)
5
Parts Diagram
Parts Catalog
SUSPENSION, SHOCK, FRONT TRACK (BLACK COIL OVER, SNOW CHECK INTL.)
by
ENGINE, OIL PUMP ASM.
SUSPENSION, SHOCK, REAR TRACK, W/RES. (SNOW CHECK INTL.)
-
26
27
28
28
29
30
31
32
33
34
35
36
37
37
38
39
39
-
SHOCK RT
7044301
$1 364,99 Unit Price incl. VAT
1
LOOP SHAFT
1800726
$272,99 Unit Price incl. VAT
2
SLEEVE
1800405
$62,99 Unit Price incl. VAT
3
BUSHING
1800406
$9,44 Unit Price incl. VAT
4
RETAINER SPRING
1800046
$68,24 Unit Price incl. VAT
5
BODY RT BLACK
1800729
$220,49 Unit Price incl. VAT
6
PIGGYBACK 90DEGREE
1800413
$194,24 Unit Price incl. VAT
7
SHAFT
1800730
$230,99 Unit Price incl. VAT
8
ASM. SEAL HEAD
1800403
$220,49 Unit Price incl. VAT
9
SEAL WIPER
1800295
$26,24 Unit Price incl. VAT
10
SEAL U-CUP
1800294
$47,24 Unit Price incl. VAT
11
O-RING
1800095
$2,09 Unit Price incl. VAT
12
BUSHING SHAFT
1800292
$20,99 Unit Price incl. VAT
13
O-RING 2-125
1800027
$3,66 Unit Price incl. VAT
14
O-RING STUD
1800215
$14,16 Unit Price incl. VAT
15
PISTON CLICKER
1800353
$173,24 Unit Price incl. VAT
16
BALL D-TENT
1800127
$12,59 Unit Price incl. VAT
17
SPRING-D-TENT
1800128
$20,99 Unit Price incl. VAT
18
BOLT CLICKER
1800354
$23,09 Unit Price incl. VAT
19
NUT CRIMP
1800031
$7,34 Unit Price incl. VAT
20
KNOB CLICKER BLACK
1800418
$173,24 Unit Price incl. VAT
21
SCREW BTN HD
1800357
$6,29 Unit Price incl. VAT
22
BODY RESERVOIR
1800419
$173,24 Unit Price incl. VAT
23
BUMPER
1800462
$68,24 Unit Price incl. VAT
24
PISTON CONVEX
1800001
$246,74 Unit Price incl. VAT
25
BAND WEAR
1800297
$62,99 Unit Price incl. VAT
26
PISTON RESERVOIR
1800355
$152,24 Unit Price incl. VAT
27
BAND PISTON
1800185
$83,99 Unit Price incl. VAT
28
O-RING
1800184
$10,49 Unit Price incl. VAT
29
O-RING BLEED SCREW
1800210
$3,14 Unit Price incl. VAT
30
SCREW BLEED
1800043
$12,59 Unit Price incl. VAT
31
CAP END RESERVOIR BLACK
1800420
$68,24 Unit Price incl. VAT
32
VALVE NEEDLE
1800329
$62,99 Unit Price incl. VAT
33
SCREW BUTTON HEAD
1800109
$6,29 Unit Price incl. VAT
34
SNAP RING 1.75 ID
1800159
$10,49 Unit Price incl. VAT
35
RING SPRING RETAINING
1800116
$120,74 Unit Price incl. VAT
36
STUD CLICKER
1800352
$57,74 Unit Price incl. VAT
37
O-RING BODY LOOP
1800030
$3,66 Unit Price incl. VAT
38
RING SNAP CLICKER
1800359
$6,29 Unit Price incl. VAT
39
SPRING COMPRESSION 250# BLACK [OPT]
7043740067
$225,74 Unit Price incl. VAT
39
SPRING COMPRESSION 210# BLACK
7043714458
$152,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
