1
Engine displacement
500
2
Year
2005
3
Trim
500 CLASSIC
4
Parts Catalog
FRONT SUSPENSION
5
Parts Diagram
Parts Catalog
CONSOLE
by
SKI

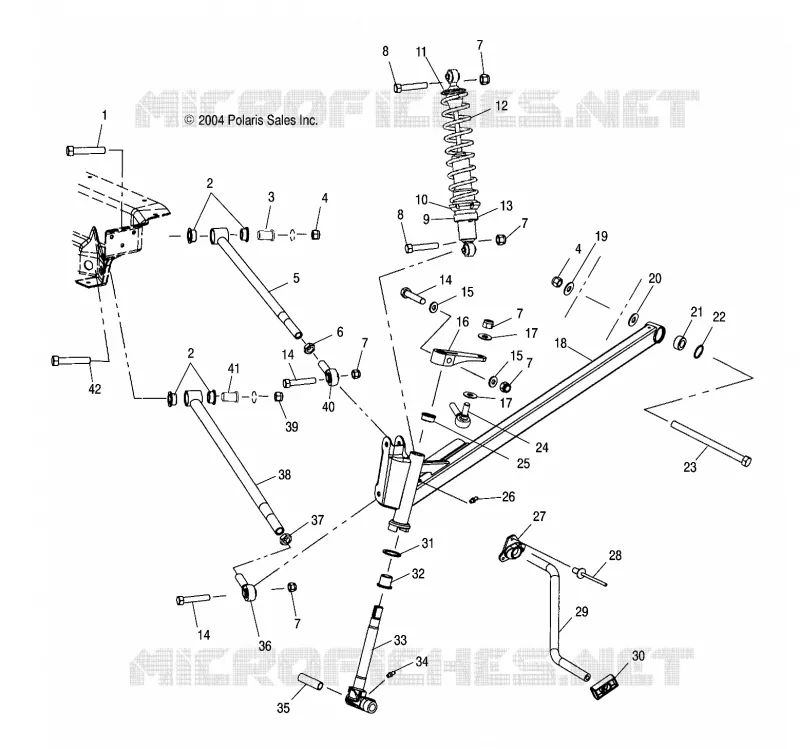

FRONT SUSPENSION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
2
2
3
4
4
5
6
7
7
7
7
7
7
8
8
9
10
11
12
13
14
14
14
15
15
16
17
17
18
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
1
BOLT
7517980
$12,59 Unit Price incl. VAT
2
BUSHING-RAD ROD PIVOT INNER
5434036
Not Available
3
BUSHING-SHLDR .443X.750X1.215
5132779
$15,74 Unit Price incl. VAT
4
NUT NYLOK
7547066
$3,14 Unit Price incl. VAT
5
Rod Radius Upper Cloud Silver
1820679385
Not Available
6
NUT JAM(10)
7542520
$4,19 Unit Price incl. VAT
7
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
8
BOLT Substituted by 7515491
7515433
$3,14 Unit Price incl. VAT
9
SHK GAS ARVIN 11.09X16.35
7041918
Not Available
10
RING SPRING PRELOAD ADJ. [1 PER SHOCK]
5431734
$104,99 Unit Price incl. VAT
11
RETAINER SPRING SLOTTED CAST
5630580
5020618
$36,74 Unit Price incl. VAT
12
Spring Compression [White]
7042074133
Not Available
13
RETAINER SPRING BODY THD. [1 PER SHOCK]
1500063
$83,99 Unit Price incl. VAT
14
SCR-3/8-24X2 HX/CP GR5-Y-SP
7517583
$7,34 Unit Price incl. VAT
15
Washer .105
7555832
$4,19 Unit Price incl. VAT
16
ARM-STEERING MACHINED EDGE
5132728
$135,44 Unit Price incl. VAT
17
WASHER-.390X.940X.030-FL-Y
7555797
$7,34 Unit Price incl. VAT
18
Asm. Trailing Arm Cloud Silver LH [Incl. 20 21]
1821165385
Not Available
18
Asm. Trailing Arm Cloud Silver RH [Incl. 20 21]
1821166385
Not Available
19
WASHER FLAT
7555820
$7,34 Unit Price incl. VAT
20
CUP TRAILING ARM MNT
5132364
$36,74 Unit Price incl. VAT
21
BEARING-SPHERICAL 7/16 PLASTIC
7061042
$54,59 Unit Price incl. VAT
22
RING RETAINING(10)
7710437
$5,76 Unit Price incl. VAT
23
BOLT
7512099
$36,74 Unit Price incl. VAT
24
ROD END-3/8 PL 75° 1.00 RH
7061057
$99,74 Unit Price incl. VAT
25
BUSHING FLANGE
3573909
$4,19 Unit Price incl. VAT
26
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
27
BUSHING-TORSION BAR
5433234
$40,94 Unit Price incl. VAT
28
RIVET(50)
7621452
$2,09 Unit Price incl. VAT
29
BAR TRSN 1/2 42.5 EDGE BLK
5244415067
Not Available
30
Slide Torsion Bar
5434369
Not Available
31
BUSHING
7556509
$3,14 Unit Price incl. VAT
32
BUSHING FLANGED
3574208
$6,29 Unit Price incl. VAT
33
SHAFT-SPINDLE W/STEER STOP BLK
6230225067
$330,74 Unit Price incl. VAT
34
FITTING LUB W/BALL
7080306
$5,76 Unit Price incl. VAT
35
BUSHING [BEA]
5010158
$27,29 Unit Price incl. VAT
36
ROD END RADIUS 1/2
7061060
$99,74 Unit Price incl. VAT
37
NUT-1/2-20 HX JM-Y
7542711
$4,19 Unit Price incl. VAT
38
Rod Radius Lower Cloud Silver
1820677385
1820677-067
$157,49 Unit Price incl. VAT
39
NUT NYLON
7547065
$7,34 Unit Price incl. VAT
40
ROD END RADIUS 7/16
7061061
$99,74 Unit Price incl. VAT
41
BUSHING-SHLDR .505X.750X1.215
5132780
$13,64 Unit Price incl. VAT
42
BOLT(10)
7512684
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
