1
Engine displacement
780
2
Year
1996
3
Trim
SLX 780 - B964287
4
Parts Catalog

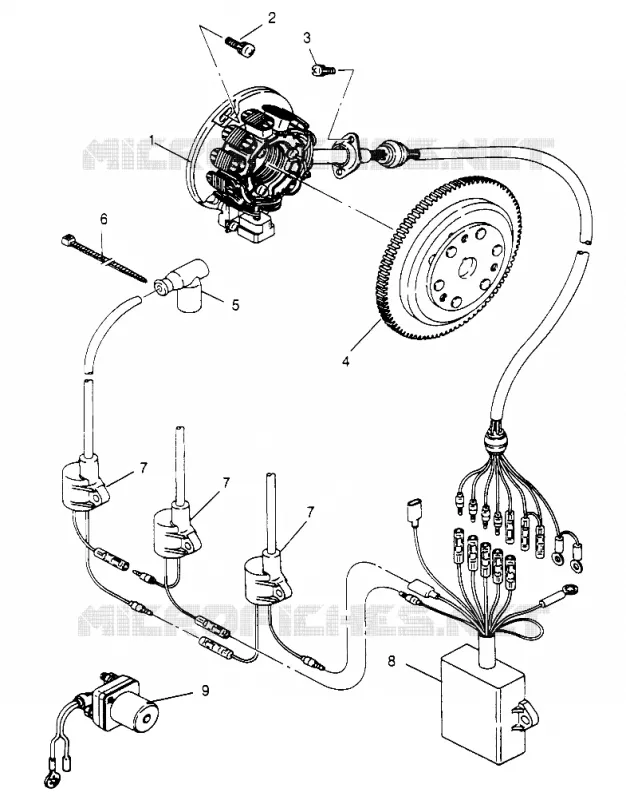

MAGNETO SLX 780 B964287 (4937443744C007)
5
Parts Diagram
Parts Catalog
OIL PUMP SLX 780 B964287 (4937443744C006)
by
MAGNETO SLX 780 B964287 (4937443744C007)
1
PLATE ASM.
3240270
Not Available
2
BOLT&WASHER ASM.
3083866
Not Available
3
SCREW&WASHER ASM.(10)
3240105
Not Available
4
FLYWHEEL W/RING GEAR
3240269
Not Available
5
CAP SPARKPLUG Substituted by 4020159
3240108
Not Available
6
BAND WIRE
3083447
Not Available
7
COIL IGNITION
3240107
Not Available
8
CDI SYSTEM Substituted by 3240288
3240290
Not Available
9
SWITCH MAGNETIC
3240204
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
