1
Engine displacement
500
2
Year
1992
3
Trim
500 SP - X920674
4
Parts Catalog
THROTTLE BODY 500 SP (4920222022039A)
5
Parts Diagram
Parts Catalog
EFI PARTS 500 SP (4920222022038A)
by
NOSEPAN 500 SP (4920222022009A)

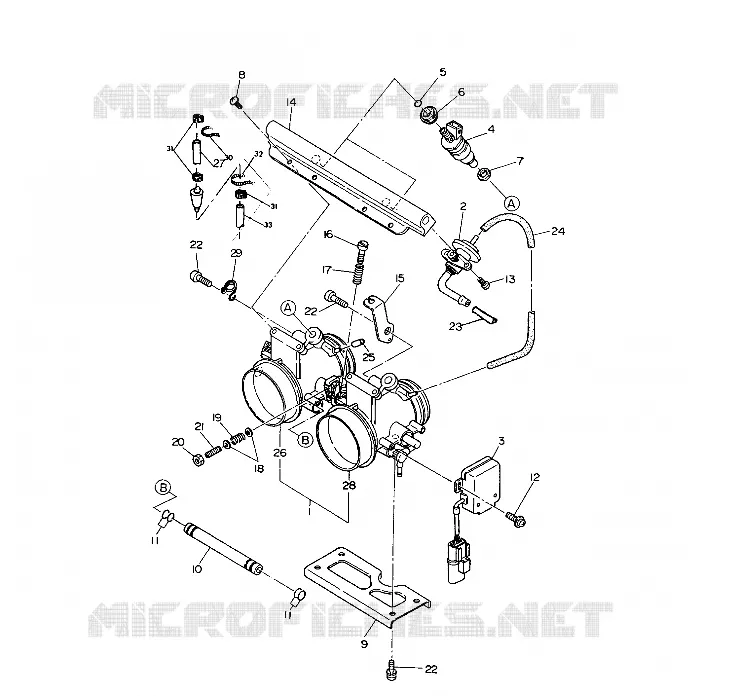

THROTTLE BODY 500 SP (4920222022039A)
1
2
3
4
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
20
21
22
22
22
23
24
25
26
27
28
29
30
31
31
32
33
1
THROTTLEBODY ASM.
3084350
Not Available
2
REGULATOR ASM.
3084351
Not Available
3
SENSOR THROTTLE POS. Substituted by 3084616
3084055
Not Available
4
INJECTOR FUEL
3084056
Not Available
5
O RING CONNECTOR
3084057
Not Available
6
INSULATOR UPPER
3084058
Not Available
7
INSULATOR LOWER
3084059
Not Available
8
SCREW
3084359
Not Available
9
STAY PLATE
3084352
Not Available
10
JOINT PIPE
3084062
Not Available
11
O RING
3084063
Not Available
12
SCREW
3084064
Not Available
13
SCREW
3084065
Not Available
14
PIPE FUEL DELIVERY
3084363
Not Available
15
WIRE STAY (Wire)
3084364
Not Available
16
SCREW ADJUST.
3084068
$9,44 Unit Price incl. VAT
17
SPRING
3084069
Not Available
18
WASHER(10)
3084070
Not Available
19
SPRING
3084071
Not Available
20
NUT
3084072
Not Available
21
SCREW ADJUST.
3084073
$18,68 Unit Price incl. VAT
22
SCREW Substituted by 3084392
3084074
Not Available
23
DESC NOT_AVAILABLE
845000361
Not Available
24
PIPE RUBBER
3084353
Not Available
25
CAP RUBBER
3084077
Not Available
26
THROTTLEBODY 1 ASM.
3084309
Not Available
27
FUEL LINE Substituted by 8450044-153
845004427
Not Available
28
THROTTLEBODY 3 ASM.
3084311
Not Available
29
CLAMP HOSE
3084312
Not Available
30
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
31
CLAMP HOSE(SCREW TYPE)
7080417
$17,84 Unit Price incl. VAT
32
STRAP PANDUIT
7080418
Not Available
33
FUEL LINE Substituted by 8450044-153
845004422
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
