1
Engine displacement
850
2
Year
2019
3
Trim
850 AXYS PRO-RMK / 174 3"
4
Parts Catalog
WATER PUMP
5
Parts Diagram
Parts Catalog
SUSPENSION, FRONT SHOCK TRACK (BLACK COIL OVER)
by
ENGINE, REED VALVE AND THROTTLE BODY ADAPTOR

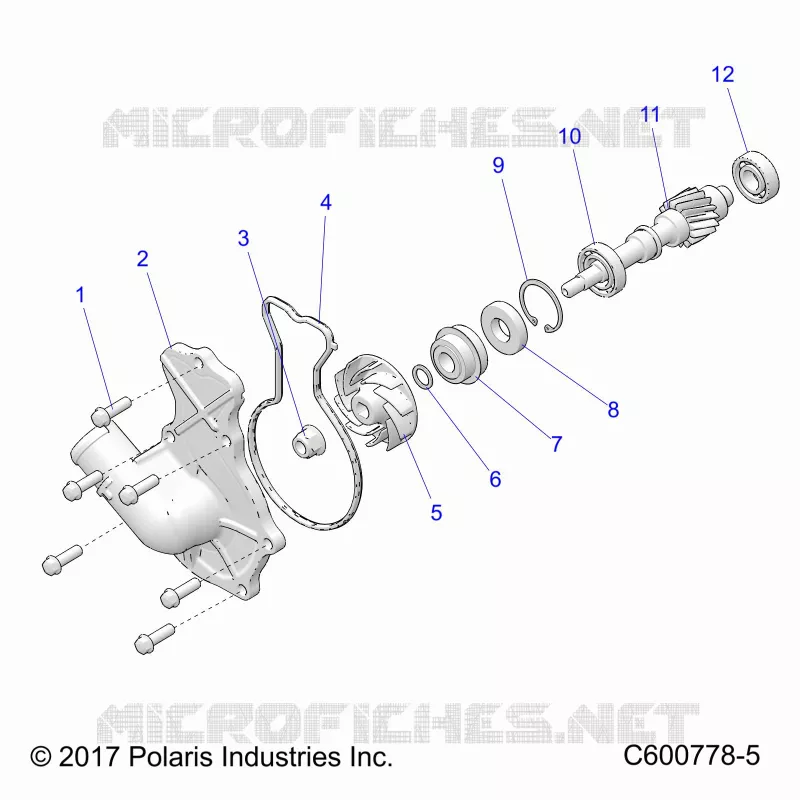

WATER PUMP
8
9
10
11
10
1
SCR-HXFL-M6X1.0X20 8.8 ZY3 DRI
7520704
$4,19 Unit Price incl. VAT
2
COVER-WATERPUMP CAST AL
5634074
5634584
$47,24 Unit Price incl. VAT
3
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
4
SEAL-WATERPUMP COVER
5416669
$15,74 Unit Price incl. VAT
5
IMPELLER-WATERPUMP
5453759
$52,49 Unit Price incl. VAT
6
WASHER-D 10.20X14.07X1.165
7557129
$23,09 Unit Price incl. VAT
7
SEAL
3610067
3610433
$37,79 Unit Price incl. VAT
8
SEAL-OIL 30X12X6
5416142
5417218
$17,84 Unit Price incl. VAT
9
RING RETAINING
7710858
$4,19 Unit Price incl. VAT
10
WRENCH-8MMX10MM OPEN END
Not Available
11
K-WATERPUMP CROSS SHAFT [INCL. 10 12]
2207949
$152,24 Unit Price incl. VAT
12
WRENCH-8MMX10MM OPEN END
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
