Parts Diagram

PISTON CRANKSHAFT LITE 0953433 AND LITE DELUXE 0953431 (4928902890C013)

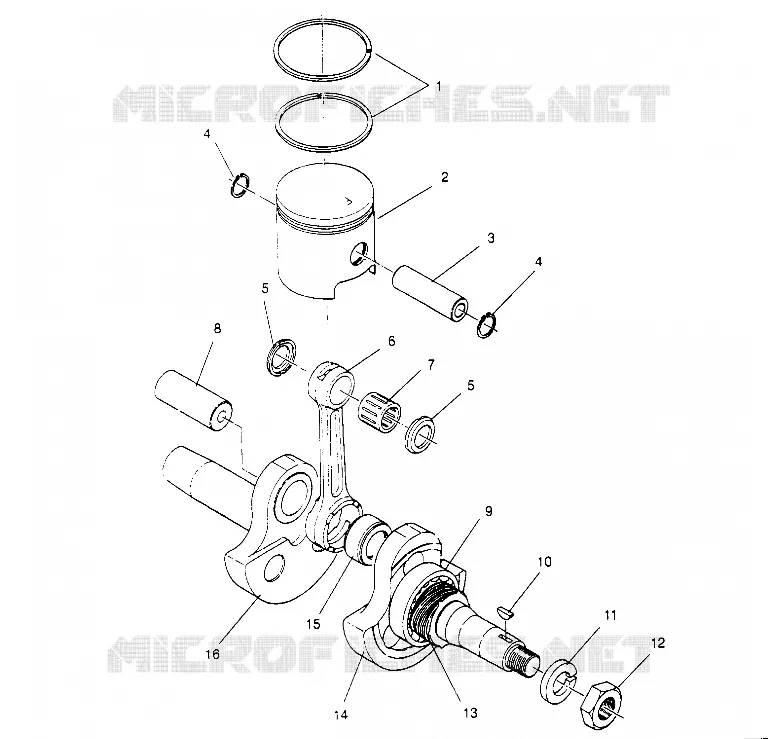

PISTON CRANKSHAFT STARLITE 0953427 (4928902890C014) FOR LITE - 0953433 FROM 1995

CARBURETOR LITE 0953433 AND LITE DELUXE 0953431 (4928902890D001)

Part numbers

RING PISTON

3080259

Not Available

RING PISTON (.020 Oversize)

3081724

Not Available

PISTON

3083023

Not Available

PISTON (.020 O/S) (.020 Oversize)

3084316

Not Available

PIN PISTON

3083512

$26,45 Unit Price incl. VAT

CLIP PISTON PIN (10)

3083682

Not Available

SPACER PISTON PIN

3083415

Not Available

ROD CONNECTING

3082790

Not Available

BEARING

3081629

$25,61 Unit Price incl. VAT

CRANK PIN PTO

3082796

Not Available

BEARING BALL

3084580

Not Available

KEY Substituted by 3081543

3080130

3081543

$26,24 Unit Price incl. VAT

WASHER SPRING

3080772

Not Available

NUT

3080639

Not Available

GEAR CRANKSHAFT

3083745

Not Available

CRANKSHAFT #1

3083845

$358,04 Unit Price incl. VAT

CRANKSHAFT (Incl. 2 & 3)

3083413

$410,54 Unit Price incl. VAT

BEARING LGE.END

3083803

Not Available

CRANKSHAFT #2

3083846

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
