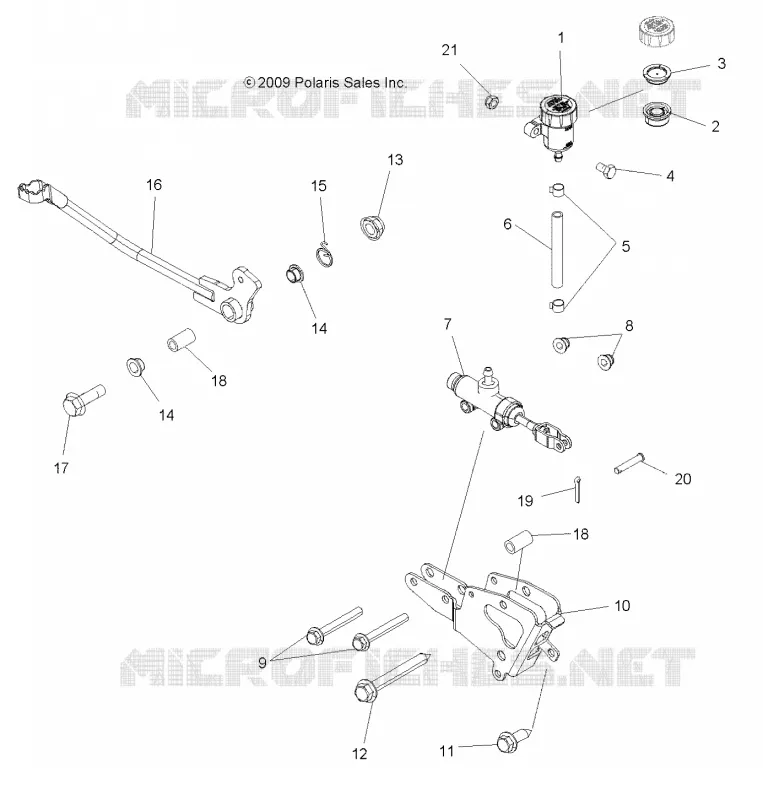

BRAKES, BRAKE PEDAL AND MASTER CYLINDER FOR SPORTSMAN FOREST 850 - A11ZX85FF/FK FROM 2011

BRAKES, BRAKE PEDAL AND MASTER CYLINDER

1

ASM-RESERVOIR BRAKE TALL 2-EAR [INCL. 1-3]

1911224

$68,24 Unit Price incl. VAT

2

DIAPHRAGM RESERVOIR BRAKE

5413262

$9,44 Unit Price incl. VAT

3

RING RESERVOIR BRAKE

5437041

$10,49 Unit Price incl. VAT

4

SCR-HXFL-M6X1.0X25 8.8 RIE

7518533

$2,09 Unit Price incl. VAT

5

HOSE CLAMP RED

7080003

$2,09 Unit Price incl. VAT

6

HOSE-RESERVOIR BRAKE 826MM

1911267826

$29,39 Unit Price incl. VAT

7

ASM. MASTER CYLINDER BRAKE FOOT

1911551

$204,74 Unit Price incl. VAT

8

NUT-M8X1.25 HXFLG NYLON INS

7547317

$5,24 Unit Price incl. VAT

9

SCR-SH-M8X1.25X30 8.8 ZPC

7516732

$3,14 Unit Price incl. VAT

10

Bracket Mount Brake Int#l [TO 7/7/2020]

5253114

Not Available

11

SCR-TFHFL-M8X1.25X20 CHS ZOD

7518555

$4,19 Unit Price incl. VAT

12

SCR-THFHL-M8X1.25X50 CHS ZOD

7518677

$7,34 Unit Price incl. VAT

13

NUT-M10X1.25 FLG NYLOC-OLIVE D

7547333

$3,14 Unit Price incl. VAT

14

BUSHING PIVOT PEDAL

5433189

$7,34 Unit Price incl. VAT

15

SPRING-TORSION BRAKE

7041750

$16,79 Unit Price incl. VAT

16

Lever Brake Black

1911722067

Not Available

17

BOLT-M10X1.25X50 HXFLG-OLIVE D

7518559

$10,49 Unit Price incl. VAT

18

SPACER-12.7X10.2X30.5MM

5135720

$12,59 Unit Price incl. VAT

19

PIN-COTTER 5/64X3/4-Y

7661900

$6,29 Unit Price incl. VAT

20

PIN-CLEVIS 1/4X5/8 - Z

7661830

$7,34 Unit Price incl. VAT

21

NUT-6MM X 1 NYLOK-Z

7546703

$2,09 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
