1
Engine displacement
1000
2
Year
2019
3
Trim
RANGER XP 1000 EPS CREW EU
4
Parts Catalog
CRANKCASE AND CRANKSHAFT
5

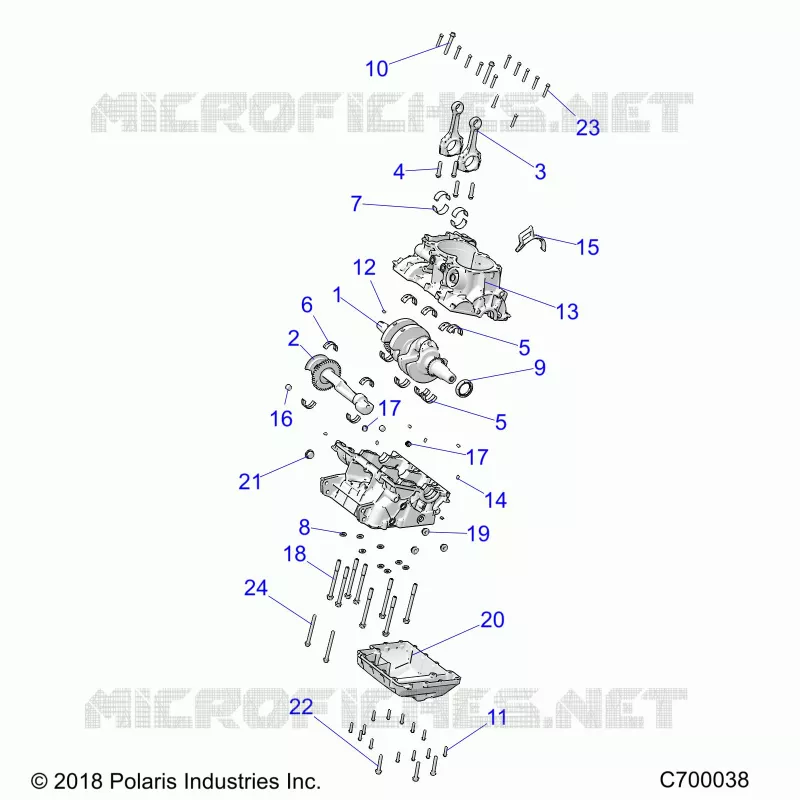

Parts Diagram
Parts Catalog
COOLING SYSTEM
by
CYLINDER AND PISTON
CRANKCASE AND CRANKSHAFT
1
2
3
4
5
5
5
5
5
5
5
5
5
5
6
6
6
6
7
7
12
9
10
11
12
13
14
12
16
17
18
19
20
21
22
23
24
1
ASM. CRANKSHAFT
1204832
3023103
$1 900,49 Unit Price incl. VAT
2
ASM-BALANCE SHAFT
1204835
$677,24 Unit Price incl. VAT
3
ASM-CONNECTING ROD CLN [INCL. 4]
3023077C
3024568
$157,49 Unit Price incl. VAT
4
SCR-ROD MJ9X1X40-4H6H 12.9
7520378
$10,49 Unit Price incl. VAT
5
BEARING-MAIN G-90 41MM GRN
3514662003
$16,79 Unit Price incl. VAT
5
BEARING-MAIN G-90 41MM BLU
3514662002
$16,79 Unit Price incl. VAT
5
BEARING-MAIN G-90 41MM
3514662001
$16,79 Unit Price incl. VAT
5
BEARING-MAIN G-90 41MM RED
3514662005
$16,79 Unit Price incl. VAT
5
BEARING-MAIN G-90 41MM YLW
3514662004
$16,79 Unit Price incl. VAT
6
BEARING CONNECTING ROD GREEN
3514663003
$15,74 Unit Price incl. VAT
6
BEARING CONNECTING ROD WHITE
3514663001
$15,74 Unit Price incl. VAT
6
BEARING CONNECTING ROD YELLOW
3514663004
$15,74 Unit Price incl. VAT
6
BEARING CONNECTING ROD BLUE
3514663002
$15,74 Unit Price incl. VAT
7
BEARING BALANCE SHAFT
3514756
$16,79 Unit Price incl. VAT
8
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
9
SEAL-CRANKSHAFT
3610284
$57,74 Unit Price incl. VAT
10
SCR-HXFLG M8X1.25X60
7519186
$10,49 Unit Price incl. VAT
11
SCREW-HXFLG M6X1.0X25 10.9
7519297
$7,34 Unit Price incl. VAT
12
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
13
K-CRANKCASE 3023497 [INCL. 14-19]
2207831
$2 005,49 Unit Price incl. VAT
14
PIN DOWEL M6x10
5132835
$4,19 Unit Price incl. VAT
15
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
16
PLUG-3/8 NPT HX/SOC W/SEALANT
7052413
$8,39 Unit Price incl. VAT
17
PLUG-HEX SOCKET 1/4X18 SEALANT
7518835
$10,49 Unit Price incl. VAT
18
SCREW [TO 12/1/2019]
7519141
7521267
$25,19 Unit Price incl. VAT
19
PLUG-HEX SCKT W/O-RING M16X1.5
7052642
$13,64 Unit Price incl. VAT
20
COVER SUMP
5137873
5143719
$204,74 Unit Price incl. VAT
21
PLUG-HEX SCKT W/O-RING M20X1.5
7052643
$14,69 Unit Price incl. VAT
22
SCR-M8X1.25X50 HX/FL-Y
7517793
$10,49 Unit Price incl. VAT
23
SCR-HXFL-M6X1.0X35 8.8 ZY3
7518578
$7,34 Unit Price incl. VAT
24
SCR-HXFLG M8X1.25X90
7519154
$13,64 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
