1
Engine displacement
850
2
Year
2015
3
Trim
SCRAMBLER 850 MD
4
Parts Catalog

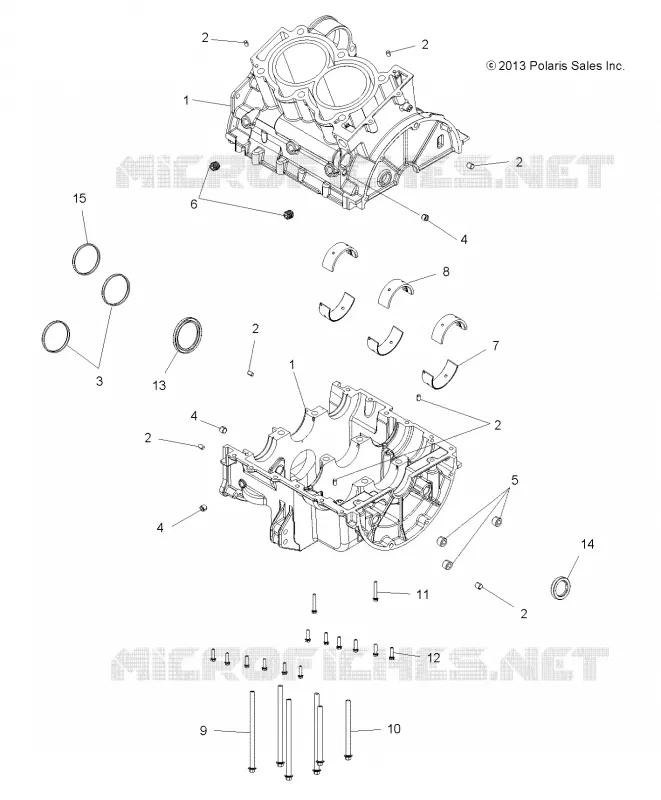

CRANKCASE
5
Parts Diagram
Parts Catalog
COOLING SYSTEM AND WATER PUMP
by
ENGINE, CRANKSHAFT AND PISTON
CRANKCASE
1
1
2
2
2
2
2
2
2
15
4
4
4
5
6
7
8
9
10
11
12
13
14
15
1
2
15
4
5
6
7
8
9
10
11
12
13
14
15
1
1
2
15
4
1
KIT CRANKCASE [INCL. 2 4-6 9-12 CASES]
2204957
$3 008,24 Unit Price incl. VAT
2
PIN-DOWEL M6X10
5136879
5132835
$4,19 Unit Price incl. VAT
3
SEAL BALANCE SHAFT
3610144
$14,69 Unit Price incl. VAT
4
PLUG
7052337
$6,29 Unit Price incl. VAT
5
PLUG-3/8 NPT HX/SOC W/SEALANT
7052413
$8,39 Unit Price incl. VAT
6
PLUG-HEX SOCKET 1/4X18 SEALANT
7518835
$10,49 Unit Price incl. VAT
7
BEARING MAIN UPPER FRONT
3514534
3515829
$20,99 Unit Price incl. VAT
8
BEARING MAIN UPPER CENTER
3514535
3515830
$20,99 Unit Price incl. VAT
9
SCREW
7518804
$5,76 Unit Price incl. VAT
10
SCREW
7518805
$10,49 Unit Price incl. VAT
11
SCR-HXFL-M6X1.0X35 8.8 ZY3
7518578
$7,34 Unit Price incl. VAT
12
SCREW-HXFL-M6X1.0X20 8.8 ZY3
7518576
$6,29 Unit Price incl. VAT
13
SEAL CRANKSHAFT
3610152
$73,49 Unit Price incl. VAT
14
SEAL CRANKSHAFT
3610220
$36,74 Unit Price incl. VAT
15
SEAL BALANCE SHAFT
3610144
$14,69 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
