1
Engine displacement
300
2
Year
2008
3
Trim
SPORTSMAN 300 4X4 - A08LH27AW/AX/AZ
4
Parts Catalog

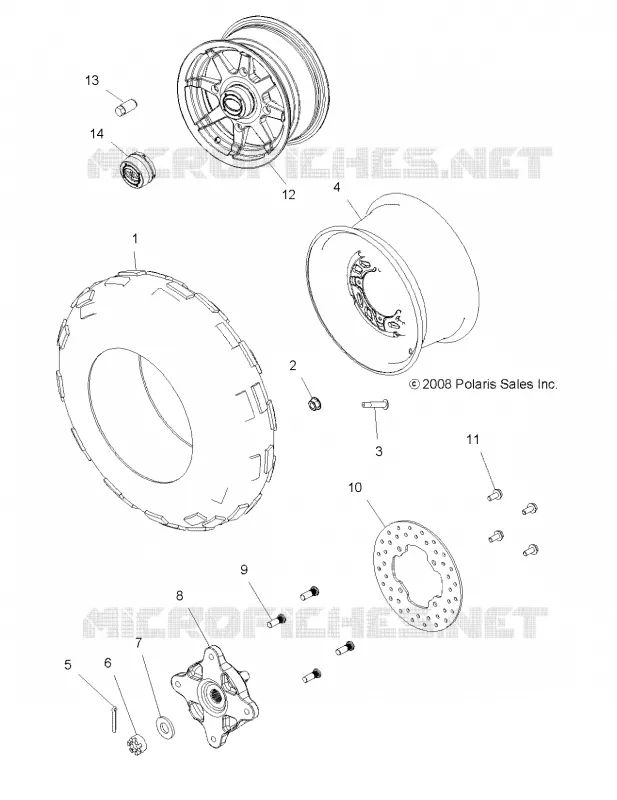

WHEELS, FRONT
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, MAIN GEARCASE MOUNTING
by
WHEELS, REAR
WHEELS, FRONT
1
1
2
3
4
4
5
6
7
8
9
9
10
11
12
13
14
1
Tire Front 23x7R12 ACT [LH27AA/AL]
2876084
Not Available
1
Tire Front 22x7-12
5413078
$150,66 Unit Price incl. VAT
2
NUT-FLANGE TWO PIECE 3/8-24
7547237
$4,19 Unit Price incl. VAT
3
VALVE-RIM
1525017
$12,59 Unit Price incl. VAT
4
Rim Front Black [LB27AC][LH27AC/AD]
1521094067
Not Available
4
Rim Front Silver [LB27AA][LH27AB]
1521094486
Not Available
5
COTTER PIN-1/8 X 1 1/4-Y
7661402
$3,14 Unit Price incl. VAT
6
NUT-M18X1.5 CASTLE ZINC/YELLOW
7547337
$3,66 Unit Price incl. VAT
7
WASHER-CONE.755X1.5X.072-.107P [RRP99C]
7555796
$14,69 Unit Price incl. VAT
8
Hub Wheel Front
5136296
$167,99 Unit Price incl. VAT
9
STUD-3/8-24X1.38 PRESS FIT-Z
7518378
$3,14 Unit Price incl. VAT
9
STUD(10)
7515513
$2,09 Unit Price incl. VAT
10
Disc Brake Front
5248378
$83,99 Unit Price incl. VAT
11
Bolt
7518643
$9,44 Unit Price incl. VAT
12
Rim Front Cast Alum. [AO][AM]
1521106
Not Available
13
NUT-3/8-24-WHEEL
7547309
$6,81 Unit Price incl. VAT
14
Cap Rim
1521128
$35,69 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
