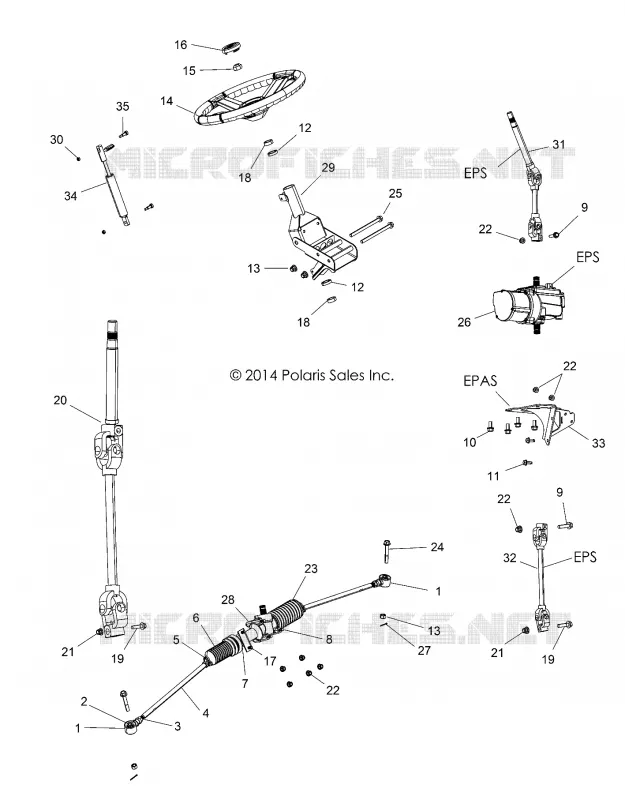

STEERING FOR RANGER 570 FULL SIZE FROM 2015

STEERING

1

BOOT SEAL ROD END

5411920

$20,99 Unit Price incl. VAT

2

ROD END [INCL. 1]

7061054

$104,99 Unit Price incl. VAT

3

NUT-1/2-20 LH JAM

7547028

$4,19 Unit Price incl. VAT

4

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

5

BELLOWS CLAMP SMALL

7080978

$4,19 Unit Price incl. VAT

6

BOOT PASSENGER SIDE RACK

5412013

$104,99 Unit Price incl. VAT

7

CLAMP LARGE BELLOWS

7080979

$10,49 Unit Price incl. VAT

8

BOLT-M8X1.25X95 HX BOLT

7518935

$3,14 Unit Price incl. VAT

9

SCR-HXFL-M8X1.25X35 8.8 ZOD

7519052

$3,14 Unit Price incl. VAT

10

BOLT-M10X1.25X20 HXFLG-OLV D

7518558

$7,34 Unit Price incl. VAT

11

SCR-TFHFL-M8X1.25X20 CHS ZOD

7518555

$4,19 Unit Price incl. VAT

12

BEARING-STEERING

3514686

$16,79 Unit Price incl. VAT

13

NUT-M10X1.25 FLG NYLOC-OLIVE D

7547333

$3,14 Unit Price incl. VAT

14

WHEEL-STEERING 14# [ED4FA/ED4DA][SD4CA]

1823622

$246,74 Unit Price incl. VAT

15

NUT-HEX-M16X2 8 ZC NYL

7547506

$7,34 Unit Price incl. VAT

16

CAP STEERING WHEEL [ED4FA/ED4DA][SD4CA]

5438865

$9,44 Unit Price incl. VAT

17

SCR-HXFL-M8X1.25X20 8.8 ZY3

7518702

$7,34 Unit Price incl. VAT

18

BUSHING-STEERING

7556675

$24,14 Unit Price incl. VAT

19

SCR-M10X1.50X35 HX/FL

7518644

$9,44 Unit Price incl. VAT

20

SHAFT STEERING UPPER/LOWER

1823844

$346,49 Unit Price incl. VAT

21

NUT-NY INS M10X1.5 HEX ZINC YW

7547385

$2,09 Unit Price incl. VAT

22

NUT- M8X1.25 FLG NYLOC-OLIVE D

7547332

$7,34 Unit Price incl. VAT

23

BOOT DRIVERS SIDE RACK

5412012

$115,49 Unit Price incl. VAT

24

SCR-HXFL-M10X1.25X65 10.9 ZY3

7517909

$10,49 Unit Price incl. VAT

25

BOLT-M10X1.25X130 HXFLG-OLIVED

7518665

$25,19 Unit Price incl. VAT

26

ASM. POWER STEERING [EPS]

2412704

$3 433,49 Unit Price incl. VAT

27

PIN COTTER

7661203

$2,09 Unit Price incl. VAT

28

ASM. GEAR BOX STEERING [INCL. 1-7 23]

1823902

$1 018,49 Unit Price incl. VAT

29

ASM. TILT STEERING RIVETED BLACK [IF BUILT BEFORE 6/29/15]

1824317458

$283,49 Unit Price incl. VAT

30

NUT-6MM X 1 NYLOK-Z

7546703

$2,09 Unit Price incl. VAT

31

SHAFT STEERING UPPER

1823891

$272,99 Unit Price incl. VAT

32

SHAFT STEERING LOWER W/JOINT EPAS

1823667

$241,49 Unit Price incl. VAT

33

MOUNT EPAS BLACK [EPS]

1018384329

$89,24 Unit Price incl. VAT

34

ASM-SHOCK OIL LOCKING MACH

7044098

$178,49 Unit Price incl. VAT

35

SCR-SH-M6X1.0X11 12.9 ZB SHB

7519980

$13,64 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
