1
Engine displacement
500
2
Year
1996
3
Trim
EURO 500 EFI - E963774
4
Parts Catalog

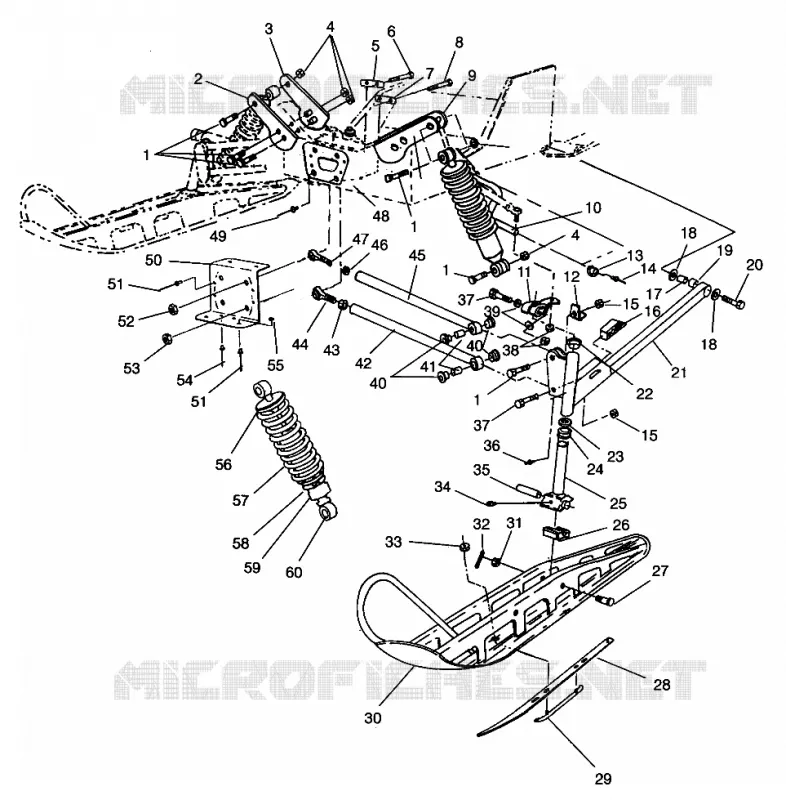

FRONT SUSPENSION AND SKI 500 EFI 0963774 AND EUROPEAN 500 EFI E963774 (4936183618B001)
5
Parts Diagram
Parts Catalog
IGNITION WIRE HARNESS 500 EFI 0963774 AND EUROPEAN 500 EFI E963774 (4936183618A014)
by
STEERING
FRONT SUSPENSION AND SKI 500 EFI 0963774 AND EUROPEAN 500 EFI E963774 (4936183618B001)
1
BOLT(10) Substituted by 7515415
7515515
$2,09 Unit Price incl. VAT
2
PLATE SHOCK MT.EXT BLK.
5211449067
Not Available
3
MT RH SHOCK EXT.BLK.
1012053067
Not Available
4
NUT NYLOC(10)
7542453
7542439
$2,09 Unit Price incl. VAT
5
STRAP-SPACER TOP
5211344
$13,64 Unit Price incl. VAT
6
BOLT(10)
7512582
Not Available
7
STRAP-SPACER BOTTOM
5211345
$19,94 Unit Price incl. VAT
8
BOLT(10)
7512684
Not Available
9
MT LH SHOCK EXT.BLK.
1012052067
Not Available
10
BAR SWAY LT 5/8 FITTED
5224680067
Not Available
11
ARM STEERING
5241314067
Not Available
12
STOP LH STRG BLK.
5241470067
Not Available
12
STOP RH STRG BLK.
5241471067
Not Available
13
BUSHING-SWAYBAR
5410383
Not Available
14
RIVET
7621433
$2,09 Unit Price incl. VAT
15
NUT FLEXLOC(10) Substituted by 7542411
7542452
7542411
$6,29 Unit Price incl. VAT
16
SLIDE SWAYBAR
5432048
Not Available
17
BUSHING
5010310
$19,94 Unit Price incl. VAT
18
WASHER
7555721
$2,09 Unit Price incl. VAT
19
PIVOT RUBBER
5410872
$15,74 Unit Price incl. VAT
20
BOLT(10)
7512557
$11,54 Unit Price incl. VAT
21
ARM TRLG LH. (Incl. 16 18)
1822281
Not Available
21
ARM TRLG RH (Incl. 16 18)
1822282
Not Available
22
BUSHING FLANGE
3573909
$4,19 Unit Price incl. VAT
23
BUSHING
7556509
$3,14 Unit Price incl. VAT
24
BUSHING FLANGED
3574208
$6,29 Unit Price incl. VAT
25
SPINDLE BLK.
6230073067
Not Available
26
STOP RUBBER
5521276
Not Available
27
BOLT(10)
7515462
$15,74 Unit Price incl. VAT
28
SKAG PR. CARBIDE
2870693
$99,74 Unit Price incl. VAT
29
PLATE SKAG
1011829067
$74,54 Unit Price incl. VAT
30
SKI WELD BLK
1820332067
Not Available
31
NUT CASTLE(10) Substituted by 7542438
7542457
7542438
$3,14 Unit Price incl. VAT
32
PIN COTTER(10) Substituted by 7661205
7661209
7661205
$1,56 Unit Price incl. VAT
33
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
34
FITTING LUB W/BALL
7080306
$5,76 Unit Price incl. VAT
35
BUSHING [BEA]
5010158
$27,29 Unit Price incl. VAT
36
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
37
BOLT(10) Substituted by 7517583
7515491
7515433
$3,14 Unit Price incl. VAT
38
NUT FLEXLOC B(10) Substituted by 7542403
7542456
Not Available
39
WASHER(10) Substituted by 7555832
7555851
7555832
$4,19 Unit Price incl. VAT
40
BUSHING-RAD ROD PIVOT
5432074
Not Available
41
BUSHING RAD.ROD UPP/LOWER
5010356
Not Available
42
ROD RAD.UP BLK.
1822295067
Not Available
43
NUT-1/2-20 HX JM-Y
7542711
$4,19 Unit Price incl. VAT
44
ROD END Substituted by 7061027
7060162
7061052
$99,74 Unit Price incl. VAT
45
ROD RAD.LOW BLK.
1822293067
Not Available
46
NUT JAM(10)
7542520
$4,19 Unit Price incl. VAT
47
ROD END
7060163
Not Available
48
BRACE BLKHD/STRG BLK.
5211589067
Not Available
49
RIVET-3/16-.090-.290
7661637
$2,09 Unit Price incl. VAT
50
BRKT PANSUPPORT BLK.
5222866067
Not Available
51
RIVET
7621467
$2,09 Unit Price incl. VAT
52
NUT LOCK (10)
7542503
$18,89 Unit Price incl. VAT
53
NUT FLEX (10)
7542703
Not Available
54
RIVET-POP 3/16(.126-.250)-ST-B
7621432
$2,09 Unit Price incl. VAT
55
WASHER FLAT
7558212
$1,56 Unit Price incl. VAT
56
RETAINER SPRING BODY THD. [1 PER SHOCK]
1500063
$83,99 Unit Price incl. VAT
57
SPRING .306 COMP(LT) BLK.
7041405067
Not Available
58
RETAINER SPRING SLOTTED
5020618
$36,74 Unit Price incl. VAT
59
RING SPRING PRELOAD ADJ. [1 PER SHOCK]
5431734
$104,99 Unit Price incl. VAT
60
SHOCK GAS IFS ADJ.
7041424
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
