1
Engine displacement
500
2
Year
1991
3
Trim
500-classic-0910865
4
Parts Catalog
FRONT SUSPENSION AND SKI 500 AND 500 CLASSIC (4919251925007A)
5
Parts Diagram
Parts Catalog
CONSOLE 500 AND 500 CLASSIC (4919251925006A)
by
BRAKE CHAINCASE 500 AND 500 CLASSIC TO SERIAL NUMBER 1808614

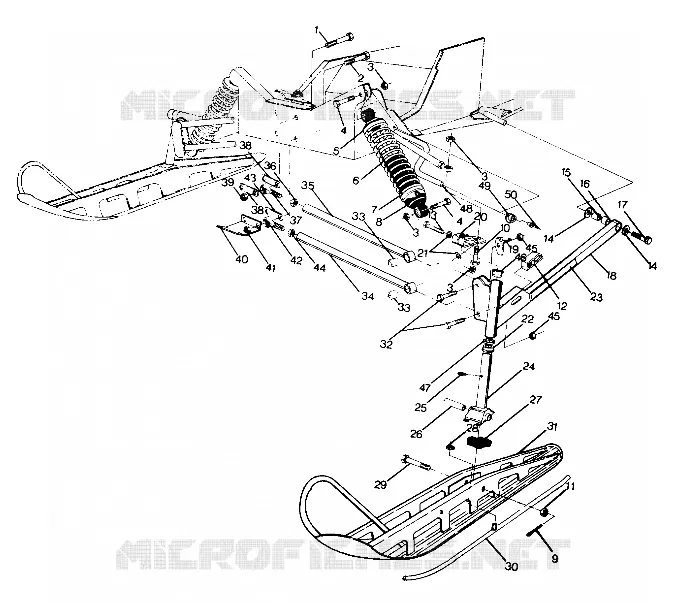

FRONT SUSPENSION AND SKI 500 AND 500 CLASSIC (4919251925007A)
1
BOLT(10)
7512551
Not Available
2
BOLT(10)
7512656
$11,01 Unit Price incl. VAT
3
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
4
SCREW
7515415
$2,09 Unit Price incl. VAT
5
RETAINER SPRING COIL
5220225
$19,94 Unit Price incl. VAT
6
SPRING COIL(SPRING BLUE) Substituted by 7041261-067 (500 Only)
7041213
7041261-067
$246,74 Unit Price incl. VAT
6
SPRING BLACK Substituted by 7041261-067
7041242067
7041261-067
$246,74 Unit Price incl. VAT
6
SPRING CHROME Substituted by 7041242-067
7041242156
7041261-067
$246,74 Unit Price incl. VAT
7
CAM ADJUSTING SPRING
5630334
$68,24 Unit Price incl. VAT
8
SHOCK FR.SUSP. (400 600)
7041144
Not Available
9
PIN-3/32X3/4-COTTER-Y
7661205
$1,56 Unit Price incl. VAT
10
SCR-HH-3/8-24X5.5 GR5 ZY3
7512404
$7,34 Unit Price incl. VAT
11
NUT-3/8-24 HX CA GR5-Y
7542438
$3,14 Unit Price incl. VAT
12
SLIDE (FR.SUSP.) (Trail Special Only)
5410385
Not Available
12
SLIDE-SWAYBAR
5410384
Not Available
13
BOLT Substituted by 7515491
7515433
$3,14 Unit Price incl. VAT
14
WASHER
7555721
$2,09 Unit Price incl. VAT
15
TUBE TRAILING ARM
5010187
Not Available
16
PIVOT-TRAILING ARM
5410382
Not Available
17
BOLT(10)
7512557
$11,54 Unit Price incl. VAT
18
ARM-TRAILING RH Substituted by 1822052-067
1822052
Not Available
18
ARM-TRAILING LH Substituted by 1822053-067
1822053
Not Available
19
STOP STRNG RH BLK. Substituted by 5220238-067
5220238
Not Available
19
STOP STRNG LH BLK. Substituted by 5220237-067
5220237
Not Available
20
ARM STEERING Substituted by 5220326-067
5220326
Not Available
21
WASHER(10) Substituted by 7555806
7555720
7555806
$1,56 Unit Price incl. VAT
22
BUSHING FLANGED
3574208
$6,29 Unit Price incl. VAT
23
DECAL RH IFS BLUE [No Longer Available]
7072953
Not Available
23
DECAL LH IFS BLUE [No Longer Available]
7072952
Not Available
23
DECAL RH IFS SILVER [No Longer Available]
7072955
Not Available
23
DECAL LH IFS SILVER [No Longer Available]
7072954
Not Available
24
SPINDLE GREASABLE Substituted by 5130919-067
6230055
Not Available
25
FITTING-LUBE.(10) Substituted by 7080561
7080220
$9,44 Unit Price incl. VAT
26
BUSHING [BEA]
5010158
$27,29 Unit Price incl. VAT
27
STOP-RUBBER
5521094
Not Available
28
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
29
BOLT(10)
7515462
$15,74 Unit Price incl. VAT
30
SKAG CARBIDE TRAIL E/S Substituted by 2870693 (650 SKS Only)
1820266
$99,74 Unit Price incl. VAT
31
SKI Substituted by 1820332-067
1820279
Not Available
32
BOLT(10) Substituted by 7515492
7512410
7515540
$9,44 Unit Price incl. VAT
33
BUSHING
5010127
$12,59 Unit Price incl. VAT
34
ROD LOWER RADIUS Substituted by 1822055-067
182208601
Not Available
34
ROD RADIUS BLACK
1822045067
Not Available
35
ROD-RADIUS Substituted by 1822037-067
1822037
Not Available
35
ROD UPPER RADIUS Substituted by 1822054-067
182208501
Not Available
36
NUT JAM(10)
7542520
$4,19 Unit Price incl. VAT
37
ROD END RH
7060126
Not Available
38
STRAP-SPACER
5220178
$2,19 Unit Price incl. VAT
39
NUT LOCK (10)
7542503
$18,89 Unit Price incl. VAT
40
BRACE PAN Substituted by 5223997-067
5223997
Not Available
41
NUT FLEX (10)
7542703
Not Available
42
ROD END
7060127
Not Available
43
STRAP-SPACER BOTTOM
5220227
Not Available
44
NUT-1/2-20 HX JM-Y
7542711
$4,19 Unit Price incl. VAT
46
BUSHING FLANGE
3573909
$4,19 Unit Price incl. VAT
47
BUSHING
7556509
$3,14 Unit Price incl. VAT
48
BAR SWAY BLACK
5224237067
Not Available
48
BAR SWAY BLUE Substituted by 5224240-067
5224240125
Not Available
49
BUSHING-SWAYBAR
5410383
Not Available
49
BUSHING SWAYBAR (Trail Special Only)
5410386
Not Available
50
RIVET
7621433
$2,09 Unit Price incl. VAT
50
SLIDER BLACK(2) (Black) (500 Classic Only)
5521320
Not Available
50
SHOCK FR.SUSPENSION
7041243
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
