1
Engine displacement
700
2
Year
1997
3
Trim
EURO 700 SKS - E970566
4
Parts Catalog
PISTON CRANKSHAFT 700 RMK 0970966, 700 SKS 0970566 AND EUROPEAN 700 SKS (4938573857C009)
5
Parts Diagram
Parts Catalog
WATER PUMP 700 RMK 0970966, 700 SKS 0970566, AND EUROPEAN 700 SKS E970566 (4938573857C008)
by
CARBURETOR 700 RMK 0970966, 700 SKS 0970566, AND EUROPEAN 700 SKS E970566 (4938573857C010)

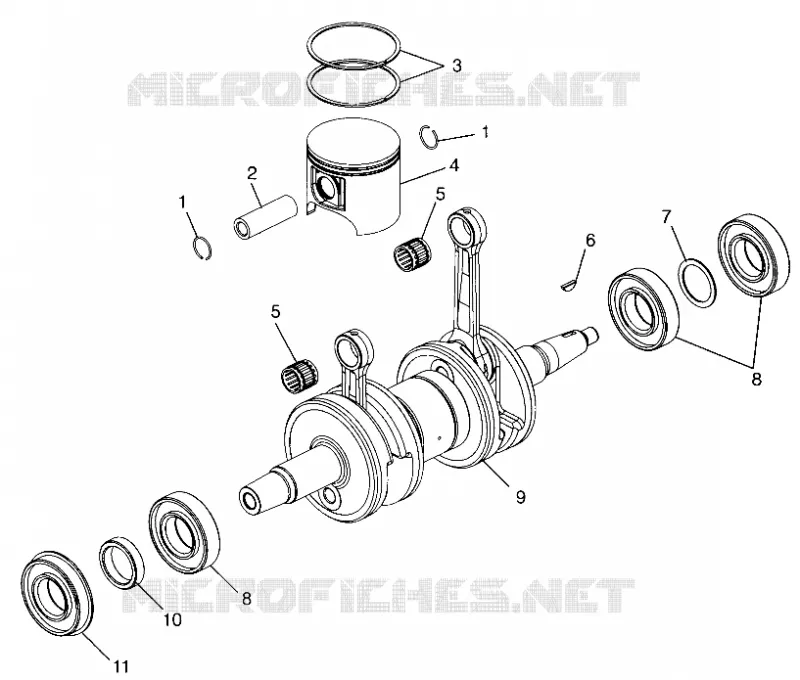

PISTON CRANKSHAFT 700 RMK 0970966, 700 SKS 0970566 AND EUROPEAN 700 SKS (4938573857C009)
1
CIRCLIP PISTON 20MM. (10)
3022950
Not Available
2
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
3
KIT RINGS 81MM SNO
2200895
$94,49 Unit Price incl. VAT
4
KIT PISTON 81 MM.STD. Substituted by 2201358 (Incl. 1 2 3)
2200896
Not Available
5
BEARING CONNECT.ROD
3584001
Not Available
6
KEY WOODRUFF
7721117
$47,24 Unit Price incl. VAT
7
BUSHING(10)
7555905
$6,29 Unit Price incl. VAT
8
BEARING BALL [PTO END]
3585503
$54,59 Unit Price incl. VAT
9
CRANKSHAFT 2 CYL Substituted by 2201241 (Incl.8 )
1201603
Not Available
9
CRANKSHAFT 2CYL. Substituted by 2201235 (SKS)
1201662
Not Available
10
SPACER CRANKSHAFT
5131552
Not Available
11
BEARING BALL Substituted by 3514318
3513520
3514318
$74,54 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
