STEERING COLUMN LOCK
5

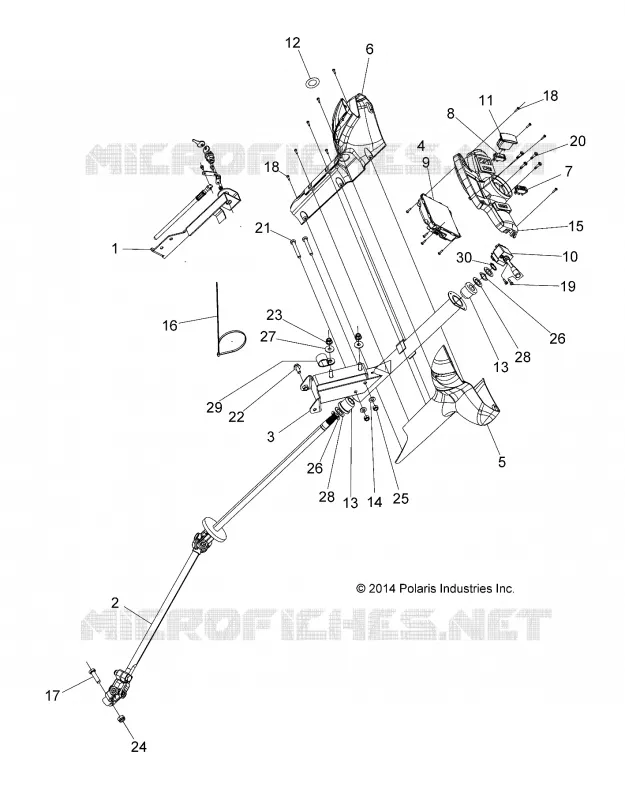

Parts Diagram
Parts Catalog
OWNERS MANUAL
by
STEERING RACK
STEERING COLUMN LOCK
11
12
13
13
14
15
16
17
18
18
19
20
21
22
23
24
25
26
26
27
28
28
29
30
1
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
2
ASM. SHAFT STEERING UPPER LOCK
1824207
Not Available
3
HOUSING STEERING COLUMN
1824033329
Not Available
4
ASM. HARNESS INSTRUMENT PANEL
2412071
Not Available
5
COVER LH STD/LOCK
5450142
Not Available
6
COVER RH LOCK
5450145
Not Available
7
SWITCH ROCKER 3 POSITION
4013695
Not Available
8
SWITCH TOGGLE W/MOMENTARY SELECT
4013698
Not Available
9
DISPLAY DRIVER LCD
4013699
Not Available
10
SWITCH TURN SIGNAL 7 POSITION
4013709
Not Available
11
SWITCH DRIVE MODE
4013967
Not Available
12
TRIM
8360091
Not Available
13
BUSHING SHAFT STEERING
5434106
$16,79 Unit Price incl. VAT
14
WASHER FLAT
7556708
Not Available
15
COVER FACE
5450141
Not Available
16
CABLE-TIE 25-76MM WEATH.-RES.
7080492
$5,24 Unit Price incl. VAT
17
SCREW
7517827
$12,59 Unit Price incl. VAT
18
SCREW
7519604
Not Available
19
SCREW
7519613
Not Available
20
SCREW
7519617
Not Available
21
BOLT
7519653
Not Available
22
SCR-HXFL-M8X1.25X20 8.8 ZY3
7518702
$7,34 Unit Price incl. VAT
23
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
24
NUT-NY INS M10X1.5 HEX ZINC YW
7547385
$2,09 Unit Price incl. VAT
25
NUT NYLOK
7547629
Not Available
26
WASHER WAVE
7556063
$5,76 Unit Price incl. VAT
27
WASHER
7556352
$9,44 Unit Price incl. VAT
28
BUSHING-.781 X1.250X.060-Y
7556301
$6,29 Unit Price incl. VAT
29
CLAMP NYLON
5439601
Not Available
30
RING RETAINING
7710696
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
