1
Engine displacement
1000
2
Year
2016
3
Trim
SPORTSMAN XP 1000 TRACTOR
4
Parts Catalog

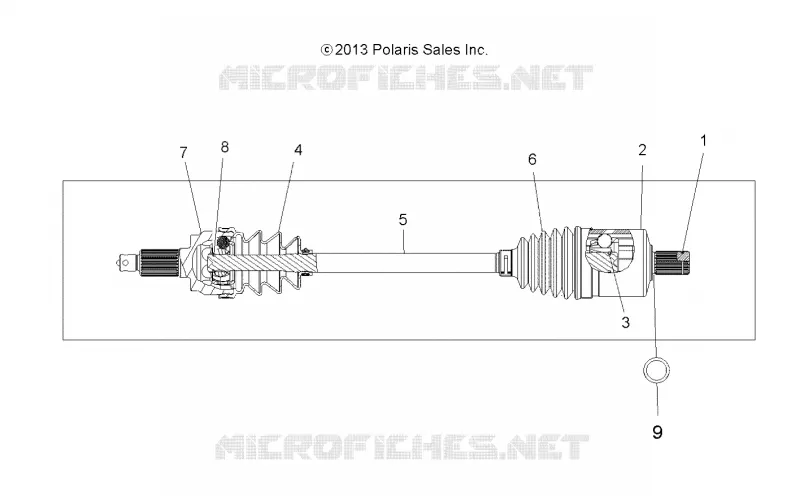

DRIVE TRAIN, DRIVE SHAFT, FRONT (TO 2/15/16)
5
Parts Diagram
Parts Catalog
CHASSIS, MAIN FRAME
by
DRIVE TRAIN, GEARCASE MOUNTING, REAR
DRIVE TRAIN, DRIVE SHAFT, FRONT (TO 2/15/16)
-
8
9
8
9
-
Asm. Shaft Drive Front [Incl. 1-8]
1332873
$383,24 Unit Price incl. VAT
1
CIRCLIP
7670092
$14,69 Unit Price incl. VAT
2
CV JOINT
2204360
Not Available
3
SPRING RING
7710664
Not Available
4
KIT BOOT [INCL. CLAMPS BOOT GREASE]
2204387
$99,74 Unit Price incl. VAT
5
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
6
KIT BOOT INBOARD [INCL. BOOT CLAMPS GREASE]
2204361
$99,74 Unit Price incl. VAT
7
CV-Joint
2204388
Not Available
8
RING SPRING
7710669
$12,59 Unit Price incl. VAT
9
O-RING 20.30MMX2.62MM
5414535
$17,84 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
