1
Engine displacement
330
2
Year
2003
3
Trim
MAGNUM 330 2X4 - A03CB32AA
4
Parts Catalog

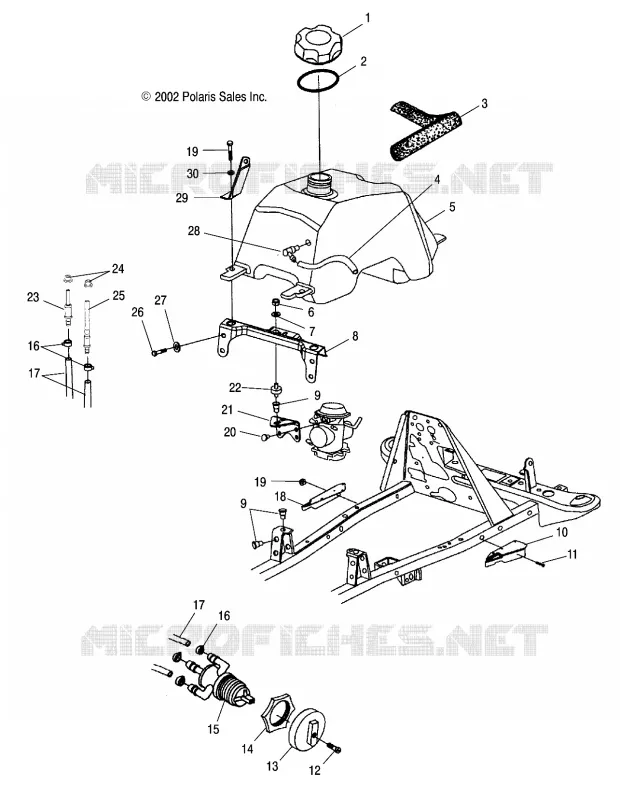

FUEL TANK AND CARBURETOR MOUNTING
5
Parts Diagram
Parts Catalog
ENGINE MOUNTING
by
AIR BOX
FUEL TANK AND CARBURETOR MOUNTING
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
16
17
17
18
19
19
20
21
22
23
24
25
26
27
28
29
29
30
1
1
2
3
4
4
5
6
6
7
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
1
Cap Gas Tank
5433687
5450389
$36,74 Unit Price incl. VAT
2
Gasket
5812123
$10,49 Unit Price incl. VAT
3
FOAM-SEAL 17#
5811899
Not Available
4
HOSE-POLY CLEAR 3/16 OD 1/8 ID
8360009600
$83,99 Unit Price incl. VAT
5
TANK FUEL MAGNUM 325 ASM. (Incl. 5 22 23)
2520183
Not Available
6
NUT-1/4-20 HEX-Y
7542105
$7,34 Unit Price incl. VAT
7
WASHER SPRING LOCK
7552801
$3,14 Unit Price incl. VAT
8
Bracket Carburetor Support
5245671067
Not Available
9
NUTSERT-1/4-20 HEX .165 GRIP
7547069
$7,34 Unit Price incl. VAT
10
Shield Splash RH
5245533067
$25,08 Unit Price incl. VAT
11
SCR-1/4-20X5/8 TAP/R-Y
7517386
$2,09 Unit Price incl. VAT
12
SCR-4MMX.7X10MM-PH/PN Y LOC
7517505
$3,14 Unit Price incl. VAT
13
KNOB FUEL VALVE (If built before 1/14/00)
5432559
$20,99 Unit Price incl. VAT
14
NUT FUELVALVE ATV (If built before 1/14/00)
5432733
Not Available
15
VALVE 3-WAY (If built before 1/14/00)
7052161
$83,99 Unit Price incl. VAT
16
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
17
FUEL LINE-1/4 ID (SVC) 600 CM [BULK]
8450040600
$136,49 Unit Price incl. VAT
18
Shield Splash LH
5245394067
$25,08 Unit Price incl. VAT
19
BOLT
7512277
$9,44 Unit Price incl. VAT
20
SCREW & WASHER(10)
3084205
$7,34 Unit Price incl. VAT
21
Mount Carb
5245674067
Not Available
22
MOUNT CARBURETOR
3110050
$19,94 Unit Price incl. VAT
23
Fitting Fuel Outlet Reserve
7052346
$52,49 Unit Price incl. VAT
24
GROMMET FLANGED
7052362
$13,64 Unit Price incl. VAT
25
Fitting Fuel Outlet Main
7052350
Not Available
26
BOLT LOCK
7512276
$9,44 Unit Price incl. VAT
27
WASHER-FL .281X.750X.062-Y
7555859
$2,09 Unit Price incl. VAT
28
Vent Tank
5431053
$47,24 Unit Price incl. VAT
29
Bracket Mounting Rear RH
5222155
Not Available
29
Bracket Mounting Rear LH
5222154
Not Available
30
WASHER [INTL]
7558301
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
