CYLINDER FOR SPORTSMAN 500 EFI - A07MH50AB/AL/AQ/AX/AY/AZ/MN50AF/AN/AT/AY FROM 2007

ENGINE, CRANKSHAFT AND PISTON

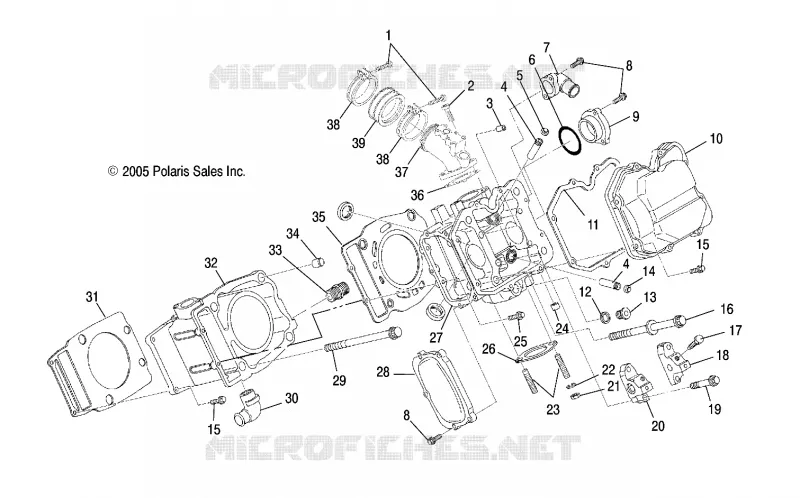

CYLINDER

1

SCREW

3081497

$4,19 Unit Price incl. VAT

2

BOLT SOCKET HEAD

3081330

$7,34 Unit Price incl. VAT

3

PIN STRAIGHT

3084857

Not Available

4

GUIDE VALVE

3084994

$83,99 Unit Price incl. VAT

5

SEAL INTAKE VALVE

3084858

$25,19 Unit Price incl. VAT

6

O-RING

3084867

$41,99 Unit Price incl. VAT

7

Adapter

3084870

$120,74 Unit Price incl. VAT

8

BOLT FLANGE(10)

3084877

Not Available

9

ADAPTER CAMSHAFT

3084866

Not Available

10

COVER ROCKER

3085073

$152,24 Unit Price incl. VAT

11

GASKET (R.COVER)

3085074

$57,74 Unit Price incl. VAT

12

GASKET

3084861

$9,44 Unit Price incl. VAT

13

PLUG

3084860

$13,64 Unit Price incl. VAT

14

SEAL EXHAUST VALVE

3084859

$41,99 Unit Price incl. VAT

15

Bolt Flange

3087158

Not Available

16

BOLT

3084875

Not Available

17

BOLT (ROCKER SHAFT)

3085854

Not Available

18

SUPPORT VALVE ROCKER (PTO)

3084864

Not Available

19

BOLT

3084876

$9,44 Unit Price incl. VAT

20

SUPPORT VALVE ROCKER (MAG)

3084863

$173,24 Unit Price incl. VAT

21

Nut

3087199

Not Available

22

WASHER Substituted by 3080530

3080051

$6,29 Unit Price incl. VAT

23

STUD (10)

3085326

Not Available

24

PLUG BLIND

3084862

Not Available

25

Bolt Flange

3086781

$9,44 Unit Price incl. VAT

26

GASKET EXH.

3085075

$73,49 Unit Price incl. VAT

27

HEAD CYLINDER * (Incl. 5-7 15 17-19 22)

3085527

$1 275,74 Unit Price incl. VAT

28

Cover Camshaft

3089242

$115,49 Unit Price incl. VAT

29

BOLT FLANGE

3084873

Not Available

30

PIPE 2 ELBOW Substituted by 3086747

3084130

Not Available

31

GASKET CYLINDER

3085370

$73,49 Unit Price incl. VAT

32

Asm. Cylinder [Incl. 34][4x4][6x6]

3089256

$720,29 Unit Price incl. VAT

33

Union Oil Filter

3089956

Not Available

34

Pin Knock

3087266

Not Available

35

GASKET HEAD

3085371

$104,99 Unit Price incl. VAT

36

GASKET INTAKE ADAPTER

3085655

$68,24 Unit Price incl. VAT

37

Pipe Intake

3089898

Not Available

38

BAND ASM. (Incl. Bolt)

3084045

$47,24 Unit Price incl. VAT

39

Adapter

3089748

$120,74 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
