1
Engine displacement
500
2
Year
2002
3
Trim
500 SKS
4
Parts Catalog
STEERING HANDLEBAR
5

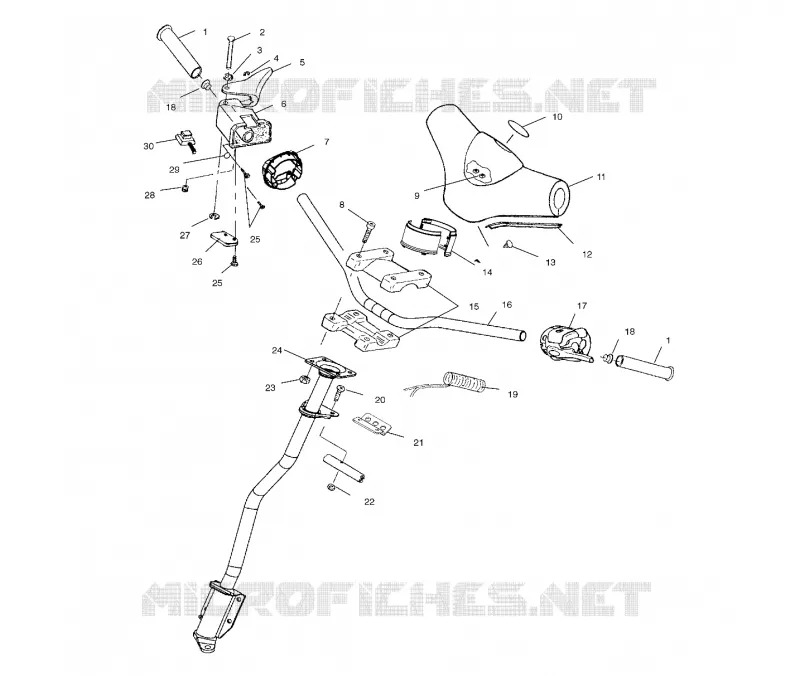

Parts Diagram
Parts Catalog
BRAKE
by
CHAINCASE
STEERING HANDLEBAR
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
1
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
20
21
22
23
24
25
25
26
27
28
29
30
1
GRIP H#BAR SNOW
5432634
$52,49 Unit Price incl. VAT
2
PIN RETAINING
7661624
$23,09 Unit Price incl. VAT
3
WASHER
7555730
$7,34 Unit Price incl. VAT
4
RING RETAINING
7710503
$7,34 Unit Price incl. VAT
5
LEVER THROTTLE LEVER ONLY
5432970
$52,49 Unit Price incl. VAT
5
LEVER ASM HTR HI/LO 35.5MM
2010171
$157,49 Unit Price incl. VAT
6
BLOCK THROTTLE/BRAKE
5431592
$73,49 Unit Price incl. VAT
7
ADAPTOR BLOCK THROTTLE
5433345
$26,24 Unit Price incl. VAT
8
SCREW
7517238
$9,44 Unit Price incl. VAT
9
NUT-PUSH ON .170-.180-Y(10)
7670106
Not Available
10
EMBLEM-#STAR# PLM.BEZEL HNDLBR
5434179
Not Available
11
COVER-HANDLEBAR Substituted by 5433159-070
5433159
$99,95 Unit Price incl. VAT
12
SLIDE HANDLEBAR COVER BLACK
5433160070
$52,49 Unit Price incl. VAT
13
DART CLIP NYLON BLACK
4010287
$7,34 Unit Price incl. VAT
14
BOOT HANDLEBAR
5433331
Not Available
15
BLOCK HANDLEBAR Substituted by 5630187-067 (SS)
5630187
$8,39 Unit Price incl. VAT
16
HANDLEBAR BLACK
1820666067
$173,24 Unit Price incl. VAT
17
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
18
PLUG-OVERFLOW 8X (RED)
5431096
$3,66 Unit Price incl. VAT
19
HEATER GRIP LO/MED/HI
2460677
$120,74 Unit Price incl. VAT
20
SCREW
7517377
$9,44 Unit Price incl. VAT
21
Desc not available [No Longer Available]
5242553
Not Available
22
NUT FLEXLOC
7542103
$10,49 Unit Price incl. VAT
23
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
24
STEERING POST FMD RMK BLK
1820663067
Not Available
25
SCR-6X3/8 PH TR HD GR5-Y
7511848
$7,34 Unit Price incl. VAT
26
HOLDER WIRE
5432261
$47,24 Unit Price incl. VAT
27
RING RETAINING
7710401
$7,34 Unit Price incl. VAT
28
SCR-SHSEMS-3/8-16X0.375 GR8 Z
7512465
$7,34 Unit Price incl. VAT
29
WSHR-11/64X3/8X1/32-Y
7555727
$1,04 Unit Price incl. VAT
30
SWITCH AUX.SHUT-OFF
4110106
$141,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
