1
Engine displacement
500
2
Year
2002
3
Trim
500 SKS
4
Parts Catalog
REVERSE LINKAGE
5

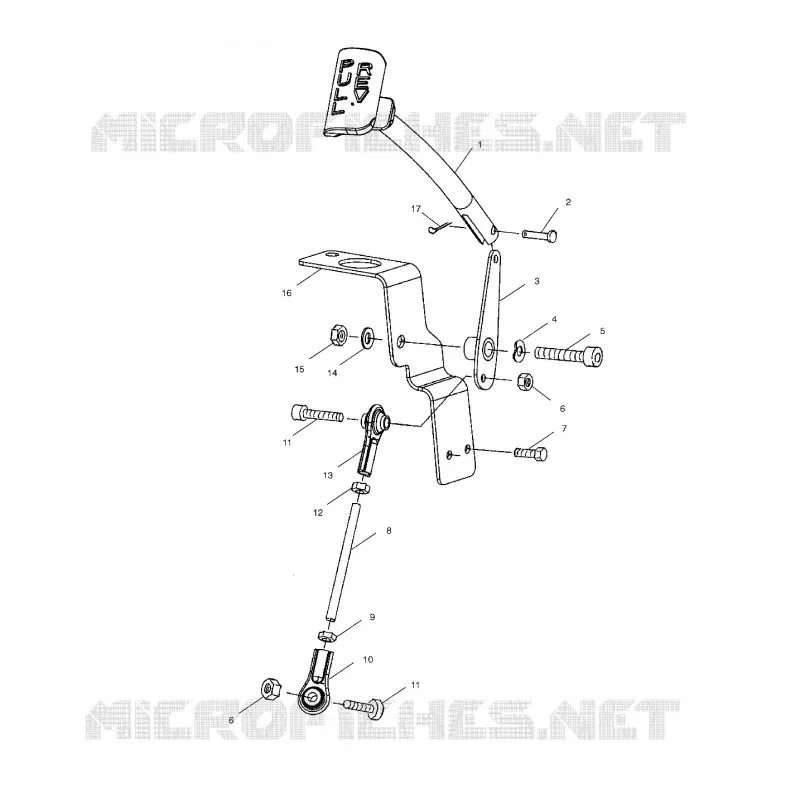

Parts Diagram
Parts Catalog
FRONT SUSPENSION
by
DRIVE TRAIN
REVERSE LINKAGE
1
2
3
4
5
6
6
7
8
9
10
11
11
12
13
14
15
16
17
1
LEVER SHIFT
5432960
Not Available
2
PIN-CLEVIS 1/4 X 3/4 -Y
7661843
$4,19 Unit Price incl. VAT
3
ACTUATOR
1341292
Not Available
4
WASHER WAVE(10)
7556060
Not Available
5
SCR-SH-SHDR 0.5X0.5 3/8-16 ZY3
7517607
$10,49 Unit Price incl. VAT
6
NUT
7542101
$7,34 Unit Price incl. VAT
7
SCR-1/4-20X5/8 TAP/R-Y
7517386
$2,09 Unit Price incl. VAT
8
ROD THREADED
5132063
Not Available
9
NUT(10)
7542129
$9,44 Unit Price incl. VAT
10
ROD END 1/4-28X.375
7061029
$89,24 Unit Price incl. VAT
11
SCREW(10)
7512164
Not Available
12
NUT JAM LH 1/4#X28
7547088
Not Available
13
ROD END 1/4-28X.375 LH
7061039
Not Available
14
WASHER
7555806
$1,56 Unit Price incl. VAT
15
NUT FLEX LOC (10)
7542402
$11,54 Unit Price incl. VAT
16
BRKT SHIFTACTUATOR SET BACK-Z
5242787
$54,38 Unit Price incl. VAT
17
PIN COTTER(10)
7661010
$1,56 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
