Engine displacement
500
2
Year
2013
3
Trim
RANGER 500 MIDSIZE - R13RH50AG/AH/AM/AR
4
Parts Catalog
WATER PUMP
5

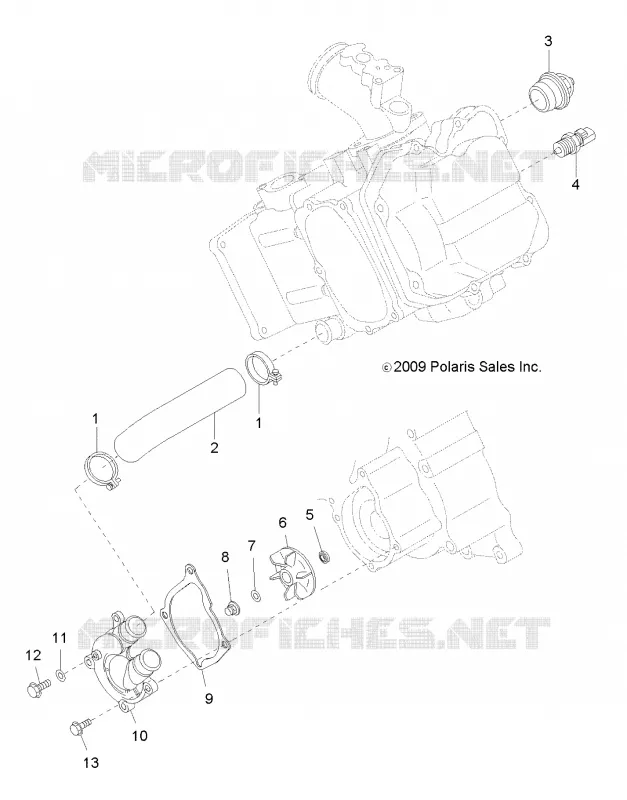

Parts Diagram
Parts Catalog
OIL FILTER
by
REFERENCES, TOOL KIT AND OWNERS MANUALS
WATER PUMP
1
1
2
3
4
5
6
7
8
9
10
11
12
13
1
Clamp Hose
3086774
Not Available
2
Hose Main [Built 12/12/09 and After]
3090291
Not Available
3
THERMOSTAT *
3084940
$173,24 Unit Price incl. VAT
4
Sensor Water Temp
3089892
$194,24 Unit Price incl. VAT
5
WASHER SEAL
3084942
Not Available
6
IMPELLER WATER PUMP
3084935
$73,49 Unit Price incl. VAT
7
WASHER(10) Substituted by 7555998
3083138
7555998
$2,09 Unit Price incl. VAT
8
NUT SELF-LOCK
3085077
$17,84 Unit Price incl. VAT
9
GASKET WATER-PUMP
3086840
$12,59 Unit Price incl. VAT
10
Cover Water Pump [Built 12/20/09 and After]
3090292
Not Available
11
Gasket Copper [Built 12/20/09 and After]
3088030
$9,44 Unit Price incl. VAT
12
BOLT FLANGE
3085359
$4,19 Unit Price incl. VAT
13
Bolt Flange [Built 12/20/09 and After]
3088064
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
