1
Engine displacement
500
2
Year
2011
3
Trim
SCRAMBLER 500 4X4 INTL - A11NG50FA
4
Parts Catalog
EXHAUST
5

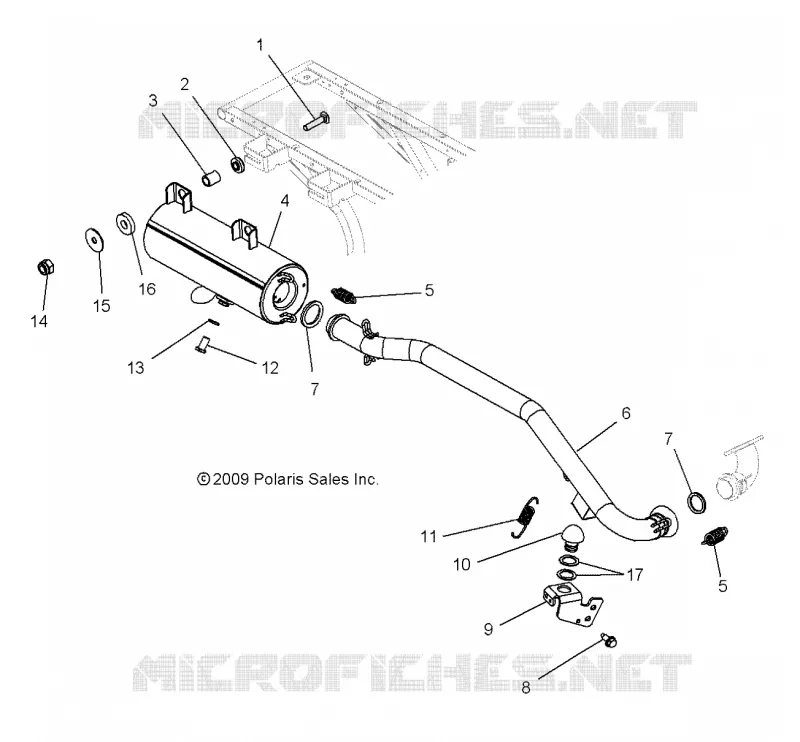

Parts Diagram
Parts Catalog
ENGINE, CRANKSHAFT AND PISTON
by
ENGINE, OIL SYSTEM AND OIL TANK
EXHAUST
1
2
3
4
5
5
6
7
7
8
9
10
11
12
13
14
15
16
17
1
BOLT CARRIAGE
7515316
$4,19 Unit Price incl. VAT
2
DAMPENER VIBRATION
5412659
$7,34 Unit Price incl. VAT
3
BUSHING-.459 X.625 X.75
5010192
$12,59 Unit Price incl. VAT
4
Silencer Black
1261006489
Not Available
5
SPRING EXHAUST
7041804
$16,79 Unit Price incl. VAT
6
Pipe Exhaust Black
1261005489
$330,74 Unit Price incl. VAT
7
Seal Exhaust
5243518
$52,49 Unit Price incl. VAT
8
SCR-TFHFL-1/4-20X0.75 CHS ZY3
7512232
$2,09 Unit Price incl. VAT
9
Bracket Exhaust Pipe Support
5248301
Not Available
10
DAMPENER VIBRATION
5411576
$13,64 Unit Price incl. VAT
11
SPRING-EXTENSION 2.90# FREE LG
7041769
$29,39 Unit Price incl. VAT
12
BOLT-1/2-20X5/8 HXHDCAP-GR5-P
7512666
$4,19 Unit Price incl. VAT
13
WASHER-CLEAN OUT .51X.75X.09
7556230
$2,09 Unit Price incl. VAT
14
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
15
WASHER-.328X1.25X16GA FL-Y
7555716
$3,14 Unit Price incl. VAT
16
WASHER RUBBER
5410436
$3,14 Unit Price incl. VAT
17
WASHER
7556004
$13,64 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
