1
Engine displacement
500
2
Year
2011
3
Trim
SCRAMBLER 500 4X4 INTL - A11NG50FA
4
Parts Catalog
SWITCHES AND SENSORS AND CONTROL MODULES
5

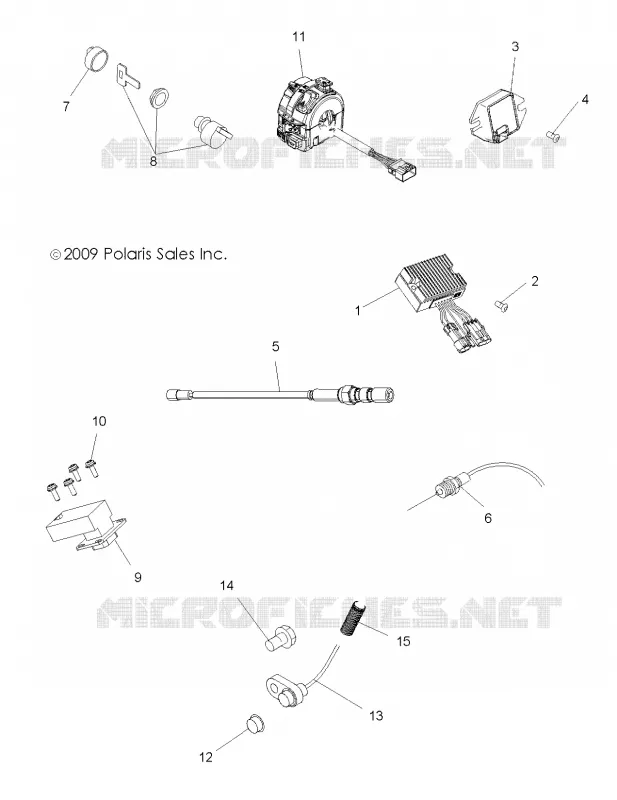

Parts Diagram
Parts Catalog
BATTERY
by
TAIL LIGHTS
SWITCHES AND SENSORS AND CONTROL MODULES
1
2
3
2
5
6
7
8
8
8
9
10
11
12
13
14
15
1
Rectifier/Regulator
4012192
$419,99 Unit Price incl. VAT
2
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
3
Module Vehicle Control Shielded
4012948
$451,49 Unit Price incl. VAT
4
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
5
Switch Double Banjo
4012484
Not Available
6
Asm. Thermo Sensor
3089246
Not Available
7
Cover-Key
5433534
5465307
$26,24 Unit Price incl. VAT
8
NUT-IGNITION SWITCH HOBBS
5433733
$41,99 Unit Price incl. VAT
8
SWITCH-KEY 4 POS ATV MT SLV
4012166
4081557
$204,74 Unit Price incl. VAT
8
BLANK KEY SERIES 2000 2100 6700 6800 [NOTE:YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY]
4010278
4083605
$27,29 Unit Price incl. VAT
9
Switch 3 Position
3234002
$262,49 Unit Price incl. VAT
10
SCREW TAPPING TORX PH 11902 X.50
3233749
$10,49 Unit Price incl. VAT
11
SWITCH-HANDLEBAR LH INT#L
4012435
Not Available
12
CAP HALL EFFECT
5132382
$47,24 Unit Price incl. VAT
13
SENSOR HALL EFFECT
4011640
$220,49 Unit Price incl. VAT
14
SCREW
7517658
$10,49 Unit Price incl. VAT
15
Conduit
8360031145
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
