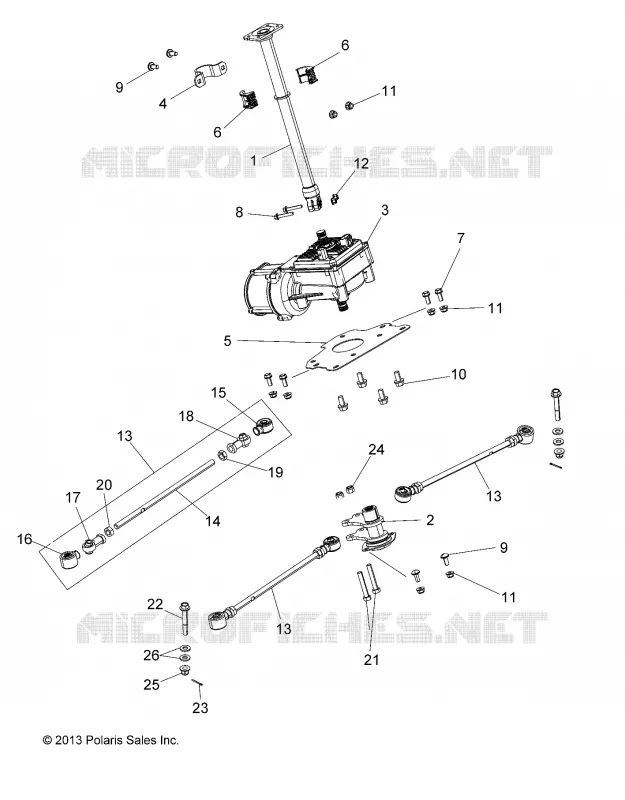

POWER STEERING EPS FOR SPORTSMAN 450 HO FROM 2017

POWER STEERING EPS

1

POST STEERING UPPER BLACK

1824100329

Not Available

1

CLUTCH BASIC Substituted by 1321633 (Less Weight & Spring)

1321497

$1 081,49 Unit Price incl. VAT

2

BOLT (10)

7512265

$7,34 Unit Price incl. VAT

2

ASM. STEERING POST LOWER

1824101

$283,49 Unit Price incl. VAT

3

WASHER SPRING LOCK

7552801

$3,14 Unit Price incl. VAT

3

ASM-POWER STEERING ATV [FROM 1/23/2017]

2413212

$2 433,89 Unit Price incl. VAT

4

BRACKET BUSHING STEERING UPPER

5257028

$62,99 Unit Price incl. VAT

4

SPRING CLUTCH

7041157

$89,24 Unit Price incl. VAT

5

PLATE-MNT PWR STEERING E-COAT

5257877329

$47,24 Unit Price incl. VAT

5

WASHER

5430945

$3,14 Unit Price incl. VAT

6

ASM-ROLLER AND BUSHING

1321457

$73,49 Unit Price incl. VAT

6

BUSHING-UPPER STEERING 1 IN [RRP99C]

5439731

$12,59 Unit Price incl. VAT

7

SCR-5/16-18X3/4 HX/FLG GR5-Y

7515398

$4,19 Unit Price incl. VAT

7

SEAL O RING (10)

5410374

$2,93 Unit Price incl. VAT

8

SCR-M6X1.0X35 HX/FL-Y/D

7516827

$12,59 Unit Price incl. VAT

8

BUTTON GUIDE(10)

5430768

$19,94 Unit Price incl. VAT

9

PIN SPIDER Substituted by 5020795

5020436

$41,99 Unit Price incl. VAT

9

SCR-RHCAR-5/16-18X0.75GR5ZY3

7517428

$4,19 Unit Price incl. VAT

10

WT. CLUTCH 16(6)

5630279

$62,99 Unit Price incl. VAT

10

BOLT-M10X1.25X20 HXFLG-OLV D

7518558

$7,34 Unit Price incl. VAT

11

SCR-SH-1/4X2 SAE4037 BLKOX&OIL

7512266

$5,76 Unit Price incl. VAT

11

NUT-5/16-18 HX FLG NL-Y [INTL]

7542343

$9,44 Unit Price incl. VAT

12

NUT-10-24-FLEX LOC-Z

7541906

$6,29 Unit Price incl. VAT

12

NUT-M6 FLANGE NYLOC

7547274

$2,09 Unit Price incl. VAT

13

ASM-TIE ROD 1/2-20X14.16 [INCL. 2-8]

1822851

$204,74 Unit Price incl. VAT

13

Bearing Moveable (1/2 inch)

3576504

$41,99 Unit Price incl. VAT

14

SPACER-1.350 X 1.750 X .020-Y

5210752

$3,14 Unit Price incl. VAT

14

ROD-TIE 1/2-20X12.21

5134242

$83,99 Unit Price incl. VAT

15

SPACER-1.350X1.750X.032-Y

5210753

$4,19 Unit Price incl. VAT

15

BOOT-SEAL ROD END 1/2 IN

5412928

$20,99 Unit Price incl. VAT

16

BOOT-SEAL ROD END 10MM

5412929

$20,99 Unit Price incl. VAT

16

SPACER-1.350 X 1.750 X .050-Y

5210754

$6,29 Unit Price incl. VAT

17

BEARING COVER (10)

3576510

$16,79 Unit Price incl. VAT

17

ROD-END 10MM 1/2-20LH 42 DEG

7061138

$104,99 Unit Price incl. VAT

18

ROD-END 3/8 1/2-20RH 44DEG

7061139

$115,49 Unit Price incl. VAT

19

NUT-1/2-20 HX JM-Y

7542711

$4,19 Unit Price incl. VAT

20

NUT-1/2-20 LH JAM

7547028

$4,19 Unit Price incl. VAT

21

SCREW

7515415

$2,09 Unit Price incl. VAT

22

SCR-HXFL-M10X1.25X65 10.9 ZY3

7517909

$10,49 Unit Price incl. VAT

23

PIN COTTER

7661203

$2,09 Unit Price incl. VAT

24

NUT-3/8-24(NYLOK)-Y

7542439

$2,09 Unit Price incl. VAT

25

NUT-M10X1.25 FLG NYLOC-OLIVE D

7547333

$3,14 Unit Price incl. VAT

26

WASHER-FL 10.7X21.9X2.5-Y

7556099

$3,14 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
