Parts Catalog
DRIVE TRAIN, GEARCASE (2 OF 2)
5

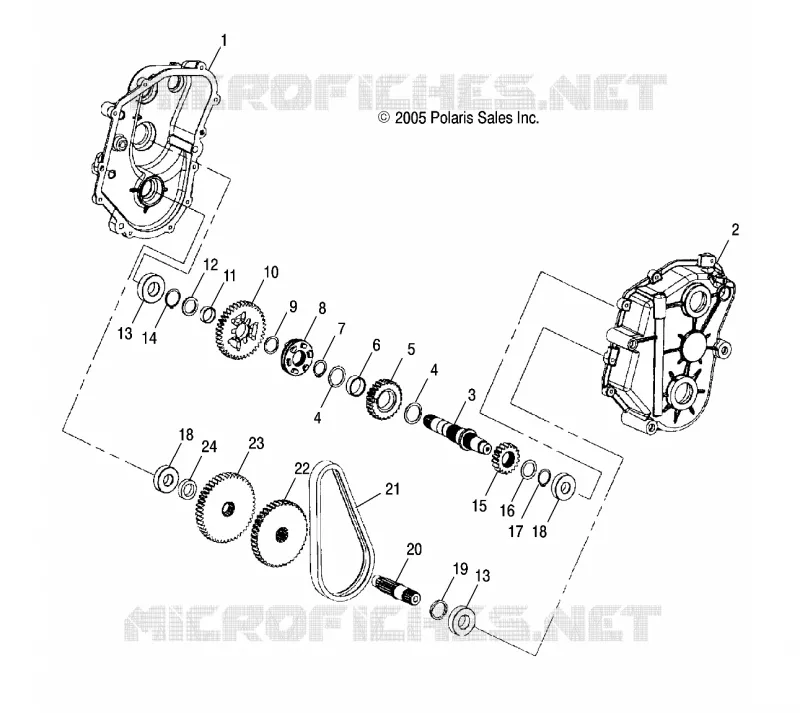

Parts Diagram
Parts Catalog
DRIVE TRAIN, GEARCASE (1 OF 2)
by
DRIVE TRAIN, GEARCASE MOUNTING
DRIVE TRAIN, GEARCASE (2 OF 2)
-
1
2
3
4
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
18
19
20
21
22
23
24
-
Asm. Gearcase Basic [Incl. 1-24 and All from Gearcase [1 of 2] page.]
1332463
Not Available
1
GEARCASE RH
3234474
$440,99 Unit Price incl. VAT
2
GEARCASE LH
3234174
$545,99 Unit Price incl. VAT
3
SHAFT REVERSE
3233514
$225,74 Unit Price incl. VAT
4
Washer Thrust
7556430
Not Available
5
SPROCKET 25T
3233513
$120,74 Unit Price incl. VAT
6
Bearing Needle
3514590
$34,64 Unit Price incl. VAT
7
RING-RET 1.188X1.098X.050
7710606
$4,19 Unit Price incl. VAT
8
DOG ENGAGEMENT L/R
3233512
$173,24 Unit Price incl. VAT
9
WASHER THRUST
7556433
Not Available
10
GEAR 39T
3233511
$209,99 Unit Price incl. VAT
11
BEARING-NEEDLE CAGE
3514589
$11,54 Unit Price incl. VAT
12
WASHER THRUST
7556434
$18,89 Unit Price incl. VAT
13
BEARING W/O SEAL
3514304
$27,29 Unit Price incl. VAT
14
RING-RET BSC EXT.984X.906X.078
7710602
$6,29 Unit Price incl. VAT
15
GEAR 18T
3233515
Not Available
16
WASHER
7556432
$9,44 Unit Price incl. VAT
17
RING RETAINING
7710603
$4,19 Unit Price incl. VAT
18
BEARING BALL
3514594
$11,54 Unit Price incl. VAT
19
SPACER
5135972
$13,64 Unit Price incl. VAT
20
SHAFT OUTPUT
3233521
$272,99 Unit Price incl. VAT
21
Chain Hyvo 66P 3/4W TRACK 146X1.6#
3221113
$194,24 Unit Price incl. VAT
22
SPROCKET 41T 15T SPLINE
3233519
$167,99 Unit Price incl. VAT
23
GEAR 47T
3233518
$257,24 Unit Price incl. VAT
24
SPACER
5135973
$13,64 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
