ENGINE MOUNTING XLT 0966756 (4933823382C002)
5
Parts Diagram
Parts Catalog
DRIVEN CLUTCH XLT 0966756 (4933823382C001)
by
WATER PUMP XLT 0966756 (4933823382C007)

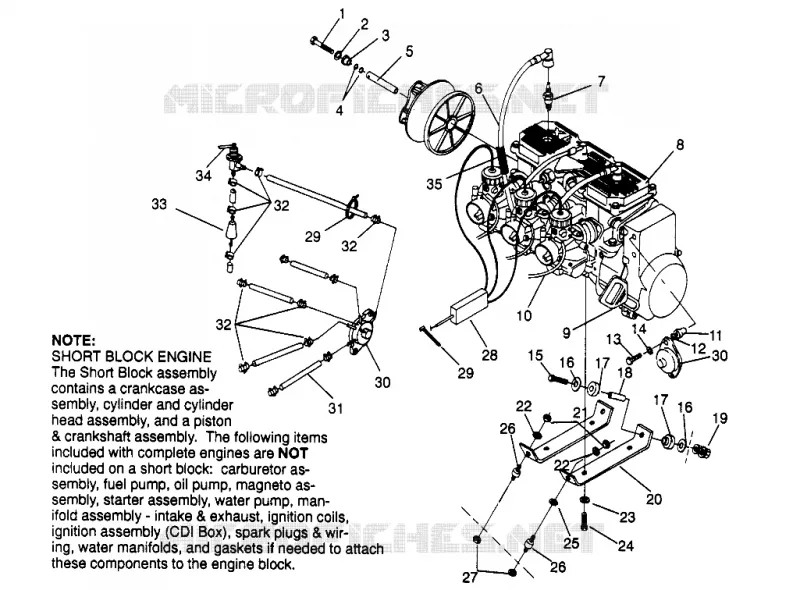

ENGINE MOUNTING XLT 0966756 (4933823382C002)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
17
18
19
20
20
20
20
21
22
22
23
24
25
26
26
27
28
29
29
30
30
31
32
32
32
33
34
35
1
BOLT(10)
7512565
$36,74 Unit Price incl. VAT
2
WASHER-7/16-INT LK-(1222)-Z [ACCESSORY]
7575202
$9,44 Unit Price incl. VAT
3
WASHER CLUTCH RETAINER
5010287
$18,89 Unit Price incl. VAT
4
O-RING CLUTCH BOLT
5410507
$2,09 Unit Price incl. VAT
5
SPACER CLUTCH BOLT
5020513
$60,89 Unit Price incl. VAT
6
CONDUIT CONVOLUTED Substituted by 4010051-30
4010051
Not Available
7
SPARKPLUG RN3C(8)
3070166
$7,34 Unit Price incl. VAT
8
ENG.(S.B.)EC58PL-03 [Cannot Purchase as Assembly]
3084684
Not Available
9
HANDLE RECOIL Substituted by 5431499-070
5431499
$26,24 Unit Price incl. VAT
10
HOSE-POLY CLEAR 3/16 OD 1/8 ID
8360009600
$83,99 Unit Price incl. VAT
11
NUT WELL
7541923
$10,49 Unit Price incl. VAT
12
WASHER [INTL]
7555843
7558302
$3,14 Unit Price incl. VAT
13
SCREW(10)
7512222
$4,19 Unit Price incl. VAT
14
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$3,14 Unit Price incl. VAT
15
SCREW
7512530
$10,49 Unit Price incl. VAT
16
WASHER FLAT
7555740
$3,14 Unit Price incl. VAT
17
MOUNT ENGINE
5410390
Not Available
18
TUBE SPACER
5333258
$4,29 Unit Price incl. VAT
19
NUT FLANGE
7542522
$10,49 Unit Price incl. VAT
20
PLATE RH MTR.MT.
5240802
Not Available
20
PLATE LH MTR.MT.
5240801
Not Available
21
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
22
WASHER(10) Substituted by 7555806
7555720
7555806
$1,56 Unit Price incl. VAT
23
WASHER LOCK(10)
7553101
$7,34 Unit Price incl. VAT
24
BOLT(10)
7512575
Not Available
25
WASHER
7555721
$2,09 Unit Price incl. VAT
26
MOUNT
3110022
Not Available
27
NUT FLEXLOC
7542411
$6,29 Unit Price incl. VAT
28
CABLE THROTTLE W/OIL
7080543
Not Available
29
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
30
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
31
FUEL LINE-1/4 ID (SVC) 600 CM [BULK]
8450040600
$136,49 Unit Price incl. VAT
32
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
33
FILTER FUEL (10)
2530008
$10,49 Unit Price incl. VAT
34
VALVE FUEL SHUT-OFF (Deluxe)
7052060
Not Available
35
CONDUIT CONVOL(15 CM) Substituted by 4010051-30
401005115
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
