1
Engine displacement
autre
2
Year
2016
3
Trim
TIMBERSLED ST LT SX 120 SX 137 (LEGACY MODELS)( TIMBERSLED) - 2016 TIMBERSLED
4
Parts Catalog

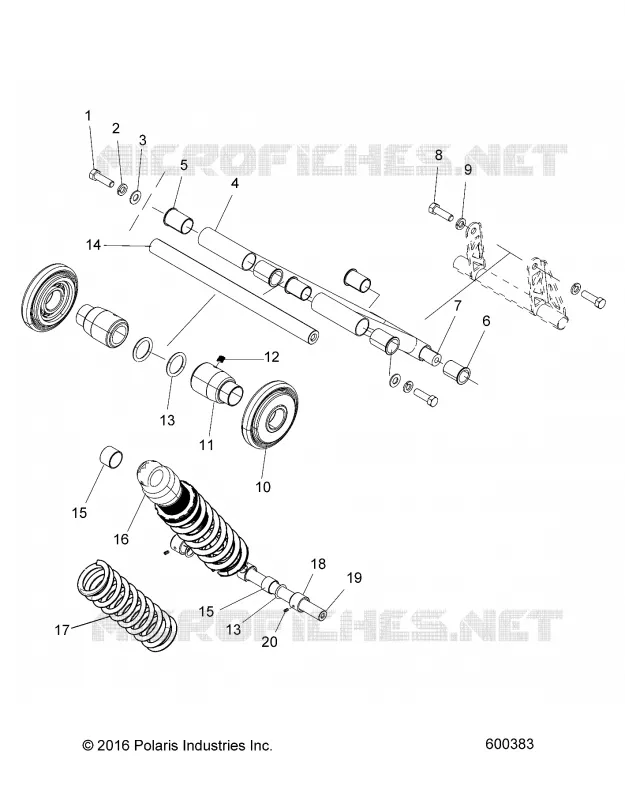

REAR SUSPENSION TORQUE ARM
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, JACKSHAFT AND BRAKE DISC
by
CHASSIS, FRAME
REAR SUSPENSION TORQUE ARM
1
2
3
4
4
5
6
7
1
2
10
11
12
13
13
14
14
15
15
16
16
17
17
17
18
19
20
1
2
3
4
5
6
7
1
2
10
11
12
13
1
BOLT. 3/8”X1-1/4” [2011-2015]
7512405
$6,29 Unit Price incl. VAT
2
WASHER 3/8# LOCK [2011-2015]
7557042
7552603
$1,56 Unit Price incl. VAT
3
WASHER 3/8 FLAT [2011-2015]
7557035
$6,29 Unit Price incl. VAT
4
ASM-SUSP UP SCISSOR ARM SX
2206946
$284,54 Unit Price incl. VAT
4
ASM-SUSP UP SCISSOR ARM ST/LT
2206945
$356,99 Unit Price incl. VAT
5
BUSHING-SUSPENSION MOUNT
5453941
5465713
$10,28 Unit Price incl. VAT
6
BUSHING-LWR TORQUE ARM
5453939
$11,54 Unit Price incl. VAT
7
SHAFT-UPPER SCISSOR CROSS
2206877
$78,74 Unit Price incl. VAT
8
BOLT. 3/8”X1-1/4” [2011-2015]
7512405
$6,29 Unit Price incl. VAT
9
WASHER 3/8# LOCK [2011-2015]
7557042
7552603
$1,56 Unit Price incl. VAT
10
WHEEL-IDLER [INCL. BEARING]
1590579
$38,31 Unit Price incl. VAT
11
COLLAR-SHOCK WHEEL
5453942
$18,89 Unit Price incl. VAT
12
SET SCREW 5/16# [2015]
7520678
$6,29 Unit Price incl. VAT
13
O-RING
5416266
$2,09 Unit Price incl. VAT
14
SHAFT-UPPER CROSS 12.5
5141023
Not Available
14
SHAFT-UPPER ARM SX [SX]
2206876
Not Available
15
BUSHING-SHOCK
5453940
$9,44 Unit Price incl. VAT
16
SHOCK-FRONT [2013-2015 SX]
2206854
$775,94 Unit Price incl. VAT
16
SHOCK-REAR ST/LT [ST/LT]
2206821
$545,99 Unit Price incl. VAT
17
SPRING 200 LB. RATE. (FACTORY RATE) [2011-2015]
2206955
$167,99 Unit Price incl. VAT
17
SPRING 250 LB. RATE [2011-2015]
2206958
$155,39 Unit Price incl. VAT
17
SPRING 300 LB. RATE [2011-2015]
2206959
$155,39 Unit Price incl. VAT
18
SX CANTILEVER COLLAR [2013-2015 SX120 SX137]
2206702
Not Available
19
SUSPENSION REAR UPPER CROSS SHAFT [2011-2015]
2206862
$99,74 Unit Price incl. VAT
20
SET SCREW
7520679
$6,29 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
