1
Engine displacement
800
2
Year
2019
3
Trim
800 AXYS SKS 146
4
Parts Catalog
DRIVE TRAIN, CHAINCASE
5

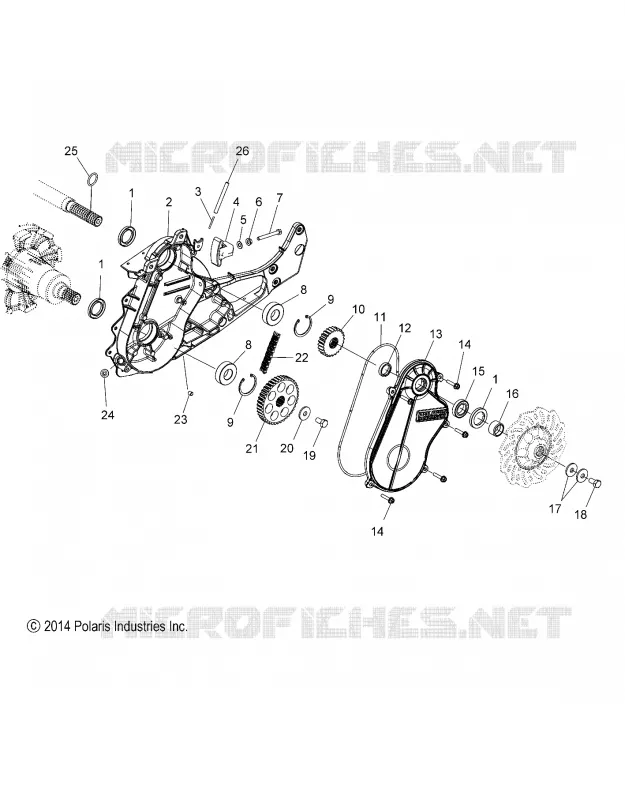

Parts Diagram
Parts Catalog
DRIVE TRAIN, CLUTCH, PRIMARY
by
BODY, DECALS, SNOW CHECK, RED W/WHITE ACCENT SIDE PANEL
DRIVE TRAIN, CHAINCASE
10
11
12
13
14
14
15
16
17
18
19
20
21
22
23
24
25
26
10
11
12
13
14
15
16
16
17
18
18
19
19
20
20
1
SEAL OIL
3610030
$36,74 Unit Price incl. VAT
2
ASM-CHAINCASE INTERMD [REQUIRES ADHESIVE][INCL. BRNGS. SEALS]
1333119
$390,59 Unit Price incl. VAT
3
TUBE VENT
5334764
$62,99 Unit Price incl. VAT
4
ASM. TIGHTENER CHAIN
1332427
$135,44 Unit Price incl. VAT
5
WASHER THREAD SEAL
7556340
$6,29 Unit Price incl. VAT
6
NUT-HXFL-M10X1.50 10 ZPC
7547017
$10,49 Unit Price incl. VAT
7
SCREW
7519938
$36,74 Unit Price incl. VAT
8
BEARING BALL
3514309
3515910
$30,23 Unit Price incl. VAT
9
RING RETAINING
7718406
$11,54 Unit Price incl. VAT
10
SPROCKET-19T 3/4W 15 SPL HV PM [W/2.0IN. SERIES 4 TRACK]
3221095
$68,24 Unit Price incl. VAT
11
GASKET CHAINCASE COVER
5814028
$52,49 Unit Price incl. VAT
12
SLEEVE CHAINCASE
5137587
$13,64 Unit Price incl. VAT
13
ASM. CHAINCASE COVER
1333118
1337284
$272,99 Unit Price incl. VAT
14
SCR-M6X1.0X30 8.8 HXFL ZOD
7518993
$4,19 Unit Price incl. VAT
15
BEARING BALL
3514643
$40,94 Unit Price incl. VAT
16
SLEEVE CHAMFERLESS
5140953
$47,24 Unit Price incl. VAT
17
WASHER-SPRING.406X1.25X.125ZOD
7556490
$9,44 Unit Price incl. VAT
18
SCR-HXFL-M10X1.25X25 8.8 Z NY
7518760
$17,84 Unit Price incl. VAT
19
SCREW
7519004
$7,34 Unit Price incl. VAT
20
WASHER BELLE
7556130
$11,54 Unit Price incl. VAT
21
SPROCKET 40T [W/1.352IN. COBRA AND 2.0 SERIES 4 TRACK]
3222099
3225069
$73,49 Unit Price incl. VAT
22
CHAIN 68P 3/4W [W/2.0IN. SERIES 4 TRACK]
3221112
$194,24 Unit Price incl. VAT
23
DOWEL HOLLOW
7663007
$7,34 Unit Price incl. VAT
24
PLUG MAGNETIC
7052674
$36,74 Unit Price incl. VAT
25
O-RING
5413563
$3,14 Unit Price incl. VAT
26
LINE FUEL [BULK SVC]
8450061600
$115,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
