1
Engine displacement
400
2
Year
1996
3
Trim
400l-6x6-w968740
4
Parts Catalog

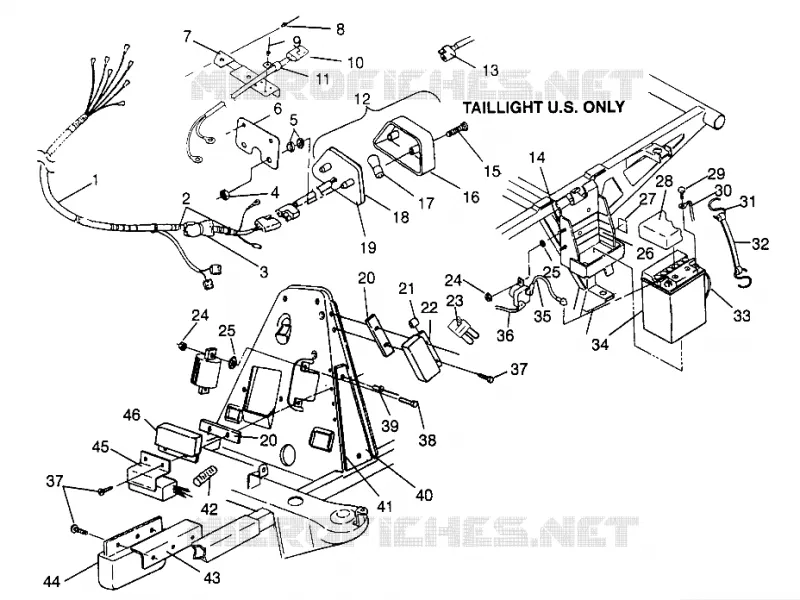

ELECTRICAL/TAILLIGHT 6X6 400L
5
Parts Diagram
Parts Catalog
REAR SWING ARM SHOCK 6X6 400L
by
TOOL KIT 6X6 400L
ELECTRICAL/TAILLIGHT 6X6 400L
1
2
3
4
5
6
7
8
10
11
12
13
14
15
16
17
18
19
20
20
21
22
23
24
24
25
25
26
27
28
29
30
31
32
33
34
35
36
37
37
38
39
40
41
42
43
44
45
46
1
2
3
4
5
6
7
8
10
11
12
13
14
15
16
17
18
19
20
20
21
22
23
24
24
25
25
26
27
28
29
30
31
32
33
34
35
36
37
37
38
39
40
41
42
43
44
45
46
1
HARNESS MAIN WIRE(400 6X6)
2460563
Not Available
2
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
3
CKT.BREAKER 20 AMP.
2434012
Not Available
4
SPEED NUT-WASHER HEAD-1/4
7670054
$2,09 Unit Price incl. VAT
5
WASHER-NYLON .260X.62X.110
7555916
$3,14 Unit Price incl. VAT
6
ISOLATOR TAILLIGHT
5211391067
$17,21 Unit Price incl. VAT
7
Bracket Taillight Black
5240244067
Not Available
8
RIVET(50)
7621470
Not Available
10
POWERPLUG ASM 12V.
2410023
$46,40 Unit Price incl. VAT
11
CLAMP BLK 5/16 PLASTIC(10)
7080524
Not Available
12
ASM. TAILLIGHT [INCL. LENS AND SCREW]
2432034
$104,99 Unit Price incl. VAT
13
PIGTAIL POWER
2460442
$19,83 Unit Price incl. VAT
14
SCR-#10-24-5/8-PN/TORX-M
7512027
$2,09 Unit Price incl. VAT
15
SCREW-TAILLIGHT
4032029
$9,44 Unit Price incl. VAT
16
LENS-TAILLIGHT
4032046
$62,99 Unit Price incl. VAT
17
BULB TAILLIGHT
4030043
$12,59 Unit Price incl. VAT
18
GASKET TAILLIGHT
4032045
$7,34 Unit Price incl. VAT
19
Backing Taillight/Brakelight
4032064
$152,24 Unit Price incl. VAT
20
HEAT SINK
5210650
Not Available
21
TRIM EDGE
5521131
$83,99 Unit Price incl. VAT
22
LIMITER 650 HZ (RPM) (NOR)
4060127
$159,06 Unit Price incl. VAT
23
HARNESS-JUMPER LIMITER
2460509
Not Available
24
NUT-NYLOC 10-24 Y
7541925
$1,56 Unit Price incl. VAT
25
WASHER-.197X.50 INT/EXT LK-Y
7571602
$9,44 Unit Price incl. VAT
26
PAD-BATTERY NOT SHOWN
5810290
5810290-CO
$13,64 Unit Price incl. VAT
27
DECAL BATTERY [No Longer Available]
7072606
Not Available
28
Cover Battery
5431769
$29,39 Unit Price incl. VAT
29
BOLT BATT KIT(SHORT) (Short) (Not Shown)
2200361
Not Available
30
Cable Battery/Engine
4010095
Not Available
31
Hook Strap Battery
7010032
$3,14 Unit Price incl. VAT
32
STRAP BATTERY HOLDDOWN
5410424
5418182
$9,44 Unit Price incl. VAT
33
TUBE-BATTERY VENT 650 MM [NOT ILLUSTRATED]
5432077
$16,79 Unit Price incl. VAT
34
BATTERY 14 AMP [FROM 8/17/2020]
4140006
$136,49 Unit Price incl. VAT
35
Cable Battery/Solenoid
4010094
Not Available
36
CABLE SOLENOID/STARTER
4010064
Not Available
37
SCR-#10-24X3/4 PN/TR RD-TORX-Y (taillight) [S57C1 C9]
7512018
$6,29 Unit Price incl. VAT
38
BOLT
7512007
$7,34 Unit Price incl. VAT
39
RIVET POP(50)
7621322
Not Available
40
BOARD TERMINAL
4040056
Not Available
41
SHIELD TERM.BOARD
5431152
Not Available
42
TUBING CONVOLUTED 3/4#
836001115
$2,72 Unit Price incl. VAT
43
Sink Heat
5131036
Not Available
44
RECTIFIER LR-37 (400)
4060133
Not Available
45
BRKT CDI(ATV 400)
5240428
Not Available
46
LIMITER RPM 350HZ. Substituted by 4060203
4060112
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
