1
Engine displacement
700
2
Year
2004
3
Trim
700 / 800 XC EDGE F/O
4
Parts Catalog
SHOCK AND RESERVOIR (REAR TRACK)(EDGE)
5
Parts Diagram
Parts Catalog
SHOCK (REAR TRACK)(EDGE)
by
SHOCK (REAR TRACK)(M-10)

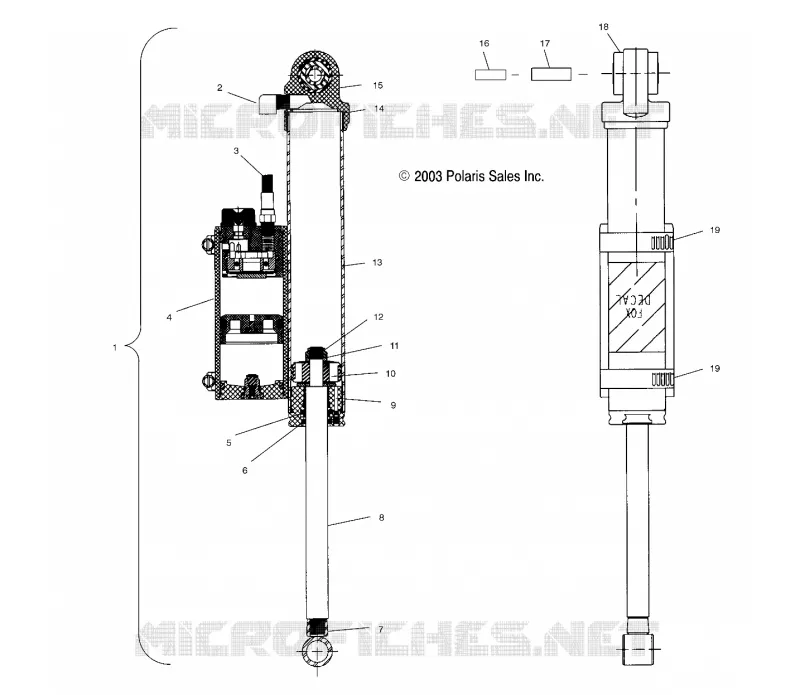

SHOCK AND RESERVOIR (REAR TRACK)(EDGE)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
1
Shock Rear Track
7042196
Not Available
2
FITTING ELBOW 90DEG.
1500157
Not Available
3
HOSE ASM 3.12 TLG
1500326
Not Available
4
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
5
U-CUP
1500256
Not Available
6
WIPER-U-CUP
1500257
Not Available
7
EYELET
1500302
Not Available
8
SHAFT .62X8.35TLG 1.15SHLG
1500322
$115,49 Unit Price incl. VAT
9
BEARING ASM QUAD RING
1500328
$121,79 Unit Price incl. VAT
10
KIT VALV.PISTON (FOX SHOCK)
2200618
Not Available
11
BUMPER-RUBBER
1500074
$10,49 Unit Price incl. VAT
12
NUT-LOCK
1500016
$23,09 Unit Price incl. VAT
13
BODY 8.67 TLG .58 THD
1500319
$93,54 Unit Price incl. VAT
14
O-RING-129
1500108
$15,74 Unit Price incl. VAT
15
BODY CAP ASM.
1500244
$112,86 Unit Price incl. VAT
16
SLEEVE .38X.56X1.3 TLG Substituted by 5333907
1500327
$27,29 Unit Price incl. VAT
17
SLEEVE .56X.81X1.28
1500311
Not Available
18
BUSHING
1500307
$13,64 Unit Price incl. VAT
19
CLAMP HOSE 3.21-3.25
1500330
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
