ELECTRICAL, TURN SIGNALS, HORN AND LICENSE PLATE LIGHT FOR SPORTSMAN 570 TRACTOR FROM 2017

ELECTRICAL, TETHER SWITCH

ENGINE, AIR INTAKE SYSTEM

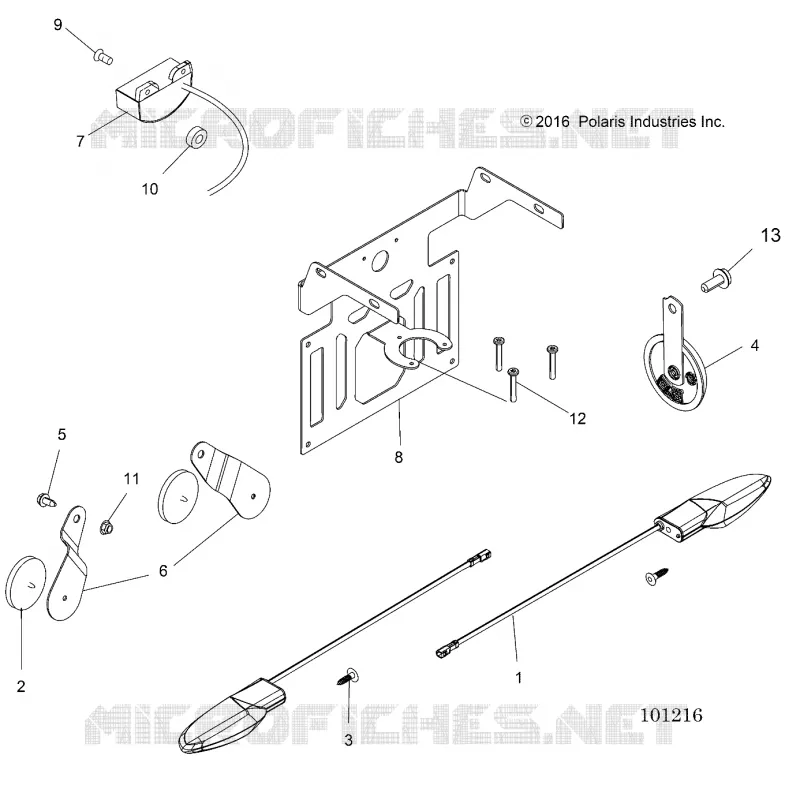

ELECTRICAL, TURN SIGNALS, HORN AND LICENSE PLATE LIGHT

1

SIGNAL-TURN FRONT TR

2413531

Not Available

2

REFLECTOR RED CIRCLE [CM]

5452126

Not Available

3

SCR-M6X1.0X20MM TX PH 8.8-B

7518546

$6,29 Unit Price incl. VAT

4

HORN DISC [TO 11/6/2023]

4011579

$87,14 Unit Price incl. VAT

5

SCR-5/16-18X3/4 TFM HW T/R-Y

7515399

$2,09 Unit Price incl. VAT

6

BRACKET REAR REFLECTOR RH M. BLACK [C1] [C2]

5260665458

Not Available

6

BRACKET REAR REFLECTOR LH M. BLACK [C1] [C2]

5260664458

Not Available

7

LIGHT-LICENSE PLATE TRACTR BLK

2413838

$152,24 Unit Price incl. VAT

7

LIGHT-LICENSE PLATE TRACTR BLK

2411278

Not Available

8

BRK-LIC.PLATE RR TRL-SKT M.BLK

5263772458

Not Available

9

SCR-#10-24X3/4 PN/TR RD-TORX-Y (taillight) [S57C1 C9]

7512018

$6,29 Unit Price incl. VAT

10

WASHER NYLON

7555932

$4,19 Unit Price incl. VAT

11

NUT-5/16-18 HX FLG NL-Y [INTL]

7542343

$9,44 Unit Price incl. VAT

12

SCR-10-24X1.25TFM PN TRX TRI-Y

7512025

$9,44 Unit Price incl. VAT

13

SCR-TFHFL M6X1.0X15 CHS ZOD

7518513

$9,44 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
