DRIVE TRAIN, MAIN GEARCASE MOUNTING FOR SPORTSMAN 570 EFI UTE HD EPS - A14MX5ETH FROM 2014

DRIVE TRAIN, FRONT GEARCASE MOUNTING

DRIVE TRAIN, PRIMARY CLUTCH

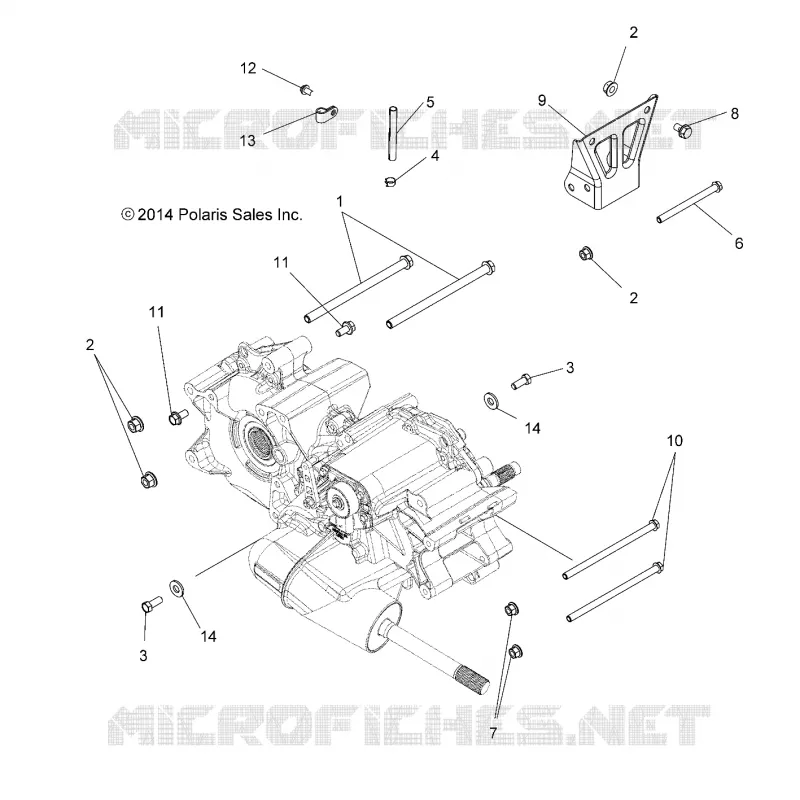

DRIVE TRAIN, MAIN GEARCASE MOUNTING

1

BOLT-3/8-16X7 HX FLNG GR5-Y

7518365

$13,64 Unit Price incl. VAT

2

NUT-FLANGED 3/8-16 NYLON

7547180

$4,19 Unit Price incl. VAT

3

SCREW

7518006

$6,29 Unit Price incl. VAT

4

CLAMP-HOSE (LARGE GREEN)

7080307

$1,56 Unit Price incl. VAT

5

HOSE [BULK SVC]

84500031525

$136,49 Unit Price incl. VAT

6

SCREW

7517646

$13,64 Unit Price incl. VAT

7

NUT-5/16-18 HX FLG NL-Y [INTL]

7542343

$9,44 Unit Price incl. VAT

8

BOLT(10)

7515522

$7,34 Unit Price incl. VAT

9

SUPPORT TRANSMISSION UPPER BLACK

5254309329

$83,99 Unit Price incl. VAT

10

SCR-5/16-18X7.5 HXCP GR Y

7518648

$13,64 Unit Price incl. VAT

11

SCR-3/8-16X3/4 HX FLNG-GR5-Y

7517632

$10,49 Unit Price incl. VAT

12

SCR-10-24X1/2 PHTXTRIRD SEMS-Y

7512084

$2,09 Unit Price incl. VAT

13

CLAMP-HOSE 3/4 BLACK

7080693

$10,49 Unit Price incl. VAT

14

WASHER-.385X.88X.075 FL-Y THR

7556242

$4,19 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
